Model
AXT220D

Item specifics

Frequency range
UHF 615-665mhz, 780-820mhz.
Working effective distance
400 meters
Color
Black, Silver
Application
Stage Performance
Type
professional digital wireless microphone
Feature
Perfect Sound
Channels
dual channel
Maximum deviation
± 45kHz
Integrated S / N ratio
> 108 dB

Review

Description

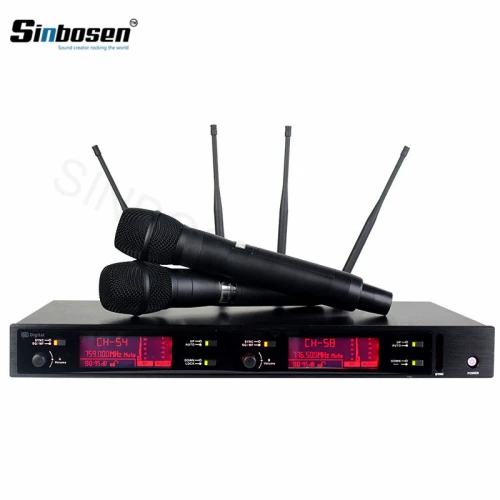

UHF true diversity digital wireless microphone AXT220D

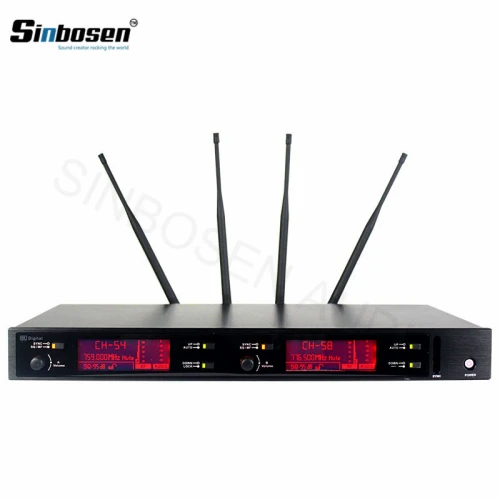

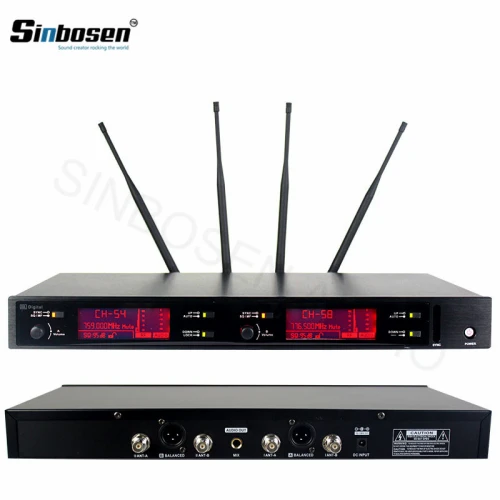

Receiver

Chassis Specifications: Standard 1U chassis

Number of channels: dual channel

Frequency range: UHF 615-665mhz, 780-820mhz.

Modulation method: FM

Oscillation method: PLL phase locked frequency synthesizer

Frequency stability: ± 0.0005%

Sensitivity: S / N> 60dB when the offset is equal to 25KHz and input 6dBμV

Maximum deviation: ± 45kHz

Bandwidth: 40MHz

Integrated S / N ratio:> 108 dB

General T.H.D.: <0.4% @ 1 KHz

Integrated frequency response: 65Hz ~ 18kHz ± 3dB,

Maximum output voltage: Balanced: -20dBV / 100Ω,

Unbalanced: -4dBV / 5KΩ.

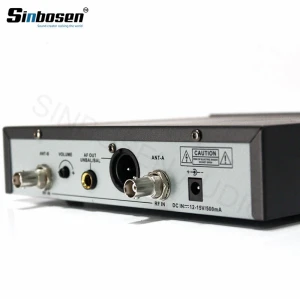

Output socket: XLR balanced and 6.3φ unbalanced socket

Working effective distance: 400 meters in general (open area)

Power supply: 100 - 240V AC50 / 60 Hz, 10W

Handheld microphone

Frequency range: UHF 615-665mhz, 740-780mhz, 780-820mhz.

Oscillator mode: PLL phase locked frequency synthesizer

Harmonic radiation: <-63dBm

Bandwidth: 80MHz

Maximum deviation: ± 45KHz

Power output: 30mW

Frequency response: 50Hz ~ 18KHz

The maximum input sound pressure: 130dB SPL

Sound head: moving coil

Battery: AA × 2

Current consumption: <110 mA

Tips and tricks
In order to obtain the best receiving
Transmitter effective signal range depending on the working environment and conditions.May is between 10 m and 100 m.
Transmitting and receiving antenna should not be obstacles blocking the line of sight.
When the poor reception conditions should in receiver through the antenna cable connecting two separated antenna.
Transmitting and receiving antennas should keep 5 m minimum distance.This can avoid receiver of radio signal overshoot.- between receiving antenna and steel or concrete wall should ensure the minimum spacing of 50 cm and with V shaped antenna calibration.

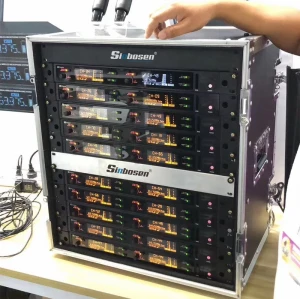

In the multi channel device operation
When using multiple transmitters,should avoid the transmitter spacing is too short to form a transm ission line interference.The transmitters to maintain at least 20 cm spacing.
