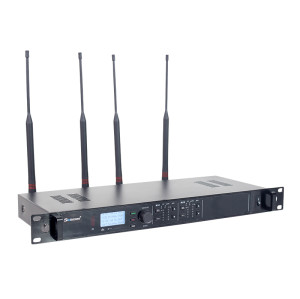

EW335 G3 cardioid handheld mic true diversity receiver Professional Microphone system

Min. Order 1 piece
Terms of Payment Western Union, MoneyGram, T/T, Paypal
Update Time 2019-06-18
Item specifics
Frequency Range780MHz-820MHz
Number of channels1680
Dynamic range95dB
Modulation ModeFM(PLL)
Signal to noise ratio> 102dB
  • Description
  • Product review

Versatile presentation set: Powerful cardioid handheld mic with programmable Mute button, EM 300 G3 true diversity receiver with 1680 tunable UHF frequencies.

Receiver Specifications:
Frequency Range:780MHz-822MHz
Modulation Mode: FM(PLL)
Number of channels:1680
Bandwidth: 25MHz
Channel spacing:250KHz
Frequency stability:± 0.005%
Dynamic range: 95dB
Maximum offset:± 55KHz
Frequency response: 60HZ-18KHz (±3dB)
Signal to noise ratio: >102dB
T.H.D:≤ 0.8%
Output Socket:Balanced XLR and MIC Output
Output Level:0~300mV (ADJ)
Power Supply:12-18V DC/1A
Transmitter Specifications:
Frequency Range:780MHz-822MHz
Number of channels:1680
Channel spacing:250 KHz
Spurious Rejection:>55dBc
Maximum modulation depth:±55KHz
Frequency response:60HZ-18KHz(±3dB)
S/N ratio:>102dB
Input voltage:mic 1V max
Power:2x1.5V (AA)
Battery use of time:>8h


 Handheld mic with powerful sound and easily exchangeable capsules.

 Highest reception quality thanks to true diversity technology

 Scan function identifies available frequencies

 Sturdy metal housing (transmitter and receiver)

 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

 Enhanced frequency bank system with up to 24 compatible frequencies

 Pilot tone squelch for eliminating RF interference when the transmitter is turned off

 Enhanced AF frequency range

 Increased range for audio sensitivity

 Wireless synchronization of transmitter parameter from receiver

 User-friendly menu operation with more control options

 Illuminated graphic display, the receiver also shows transmitter settings

 Auto-Lock function avoids accidental changing of settings

 HDX compander for crystal-clear sound

 Transmitter feature battery indication in 4 steps, also shown on receiver display

 The programmable Mute button on the transmitter body

 Integrated Equalizer and Soundcheck mode
