LA8 LA12X DSP power amplifier wired connection DSP software steps
- Share
- Issue Time
- Oct 4,2024
LA8 LA12X DSP power amplifier wired connection DSP software steps
Step 1: Insert the Ethernet cable

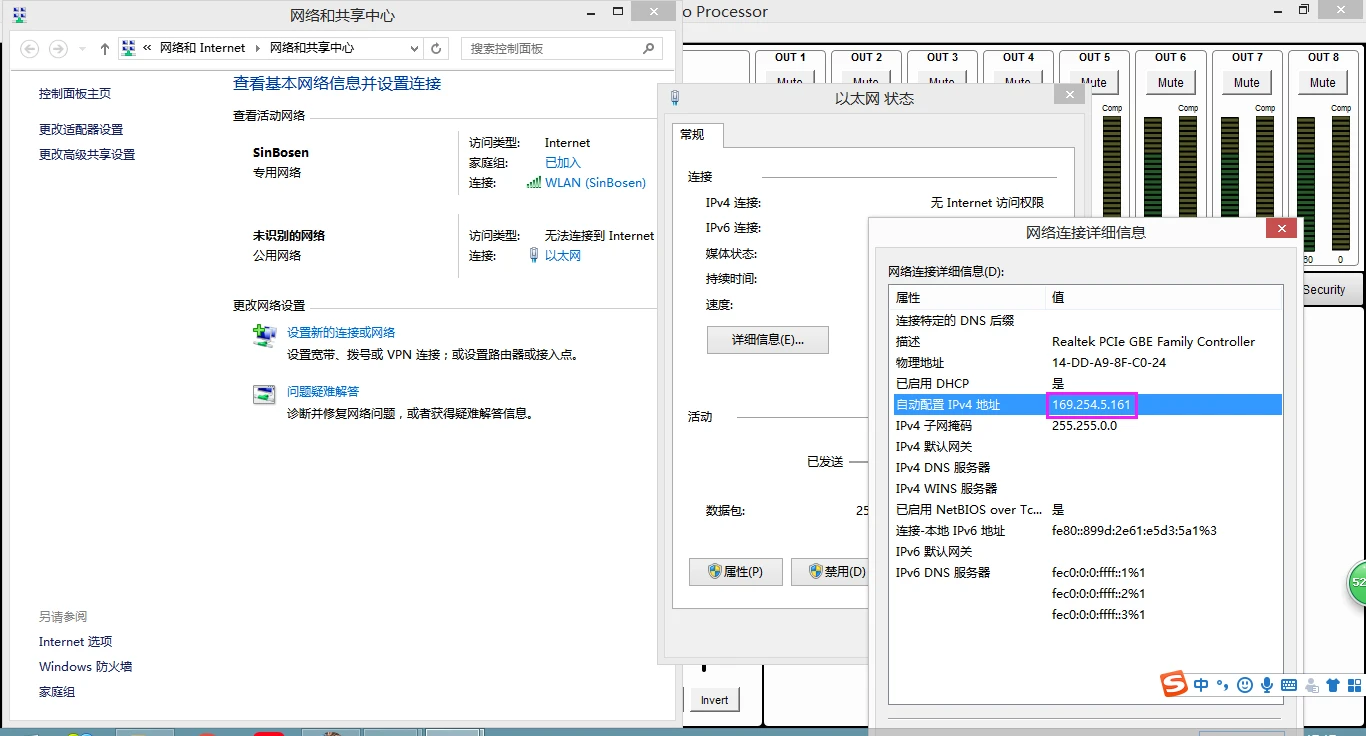

Step 2: Find the IPv4 address on the computer
For example, in the image below, the IPv4 address of this computer is 169.254.5.161
Remember this number, and enter the first 7 digits into the software.

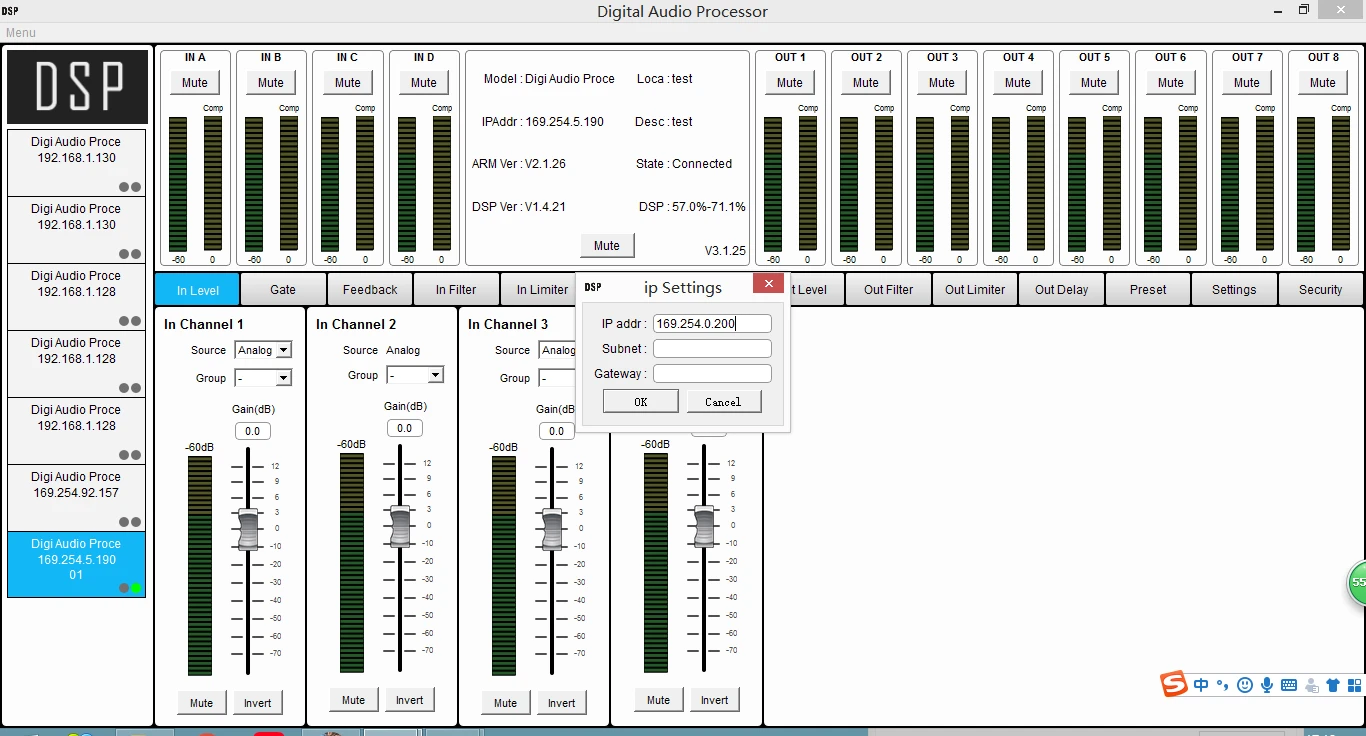

Step 3: Enter the IP address into the software. The first 7 digits are the same as the computer. Pay attention to the last three digits, which can be any number between 0-250, but must be different from the last three digits of the computer.

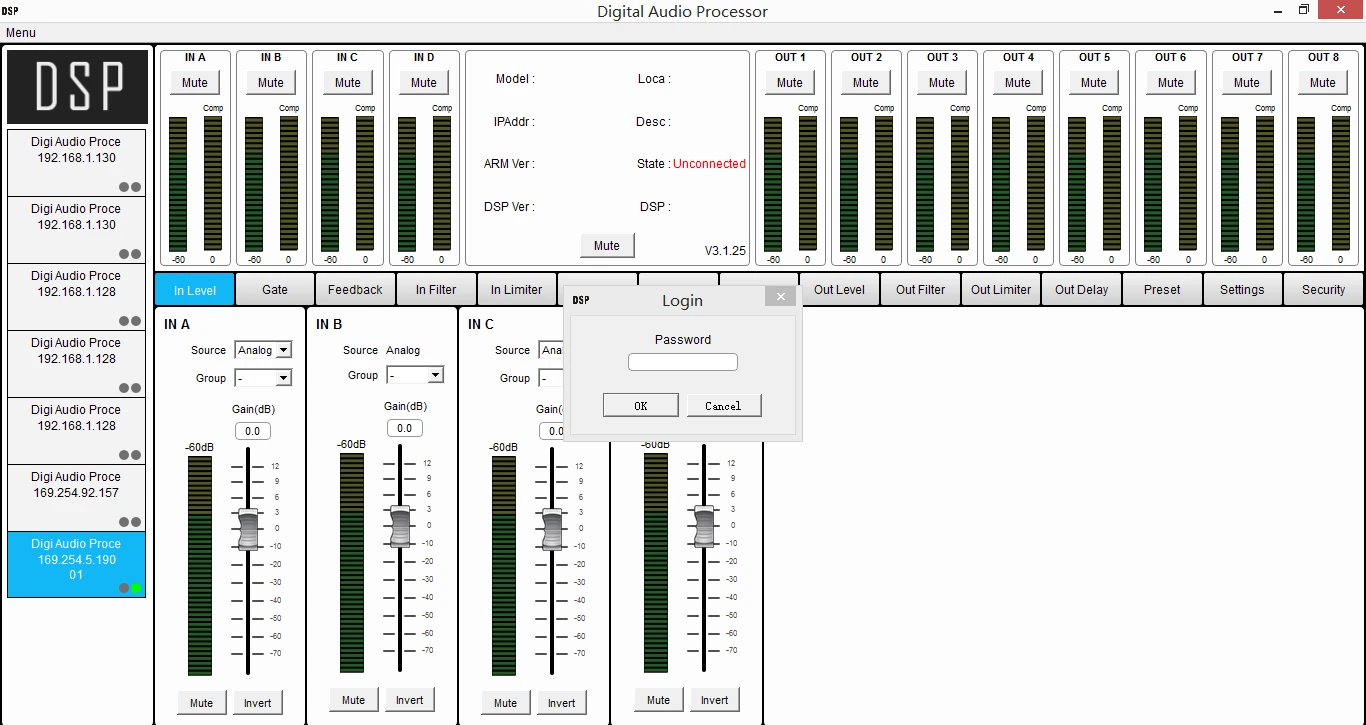

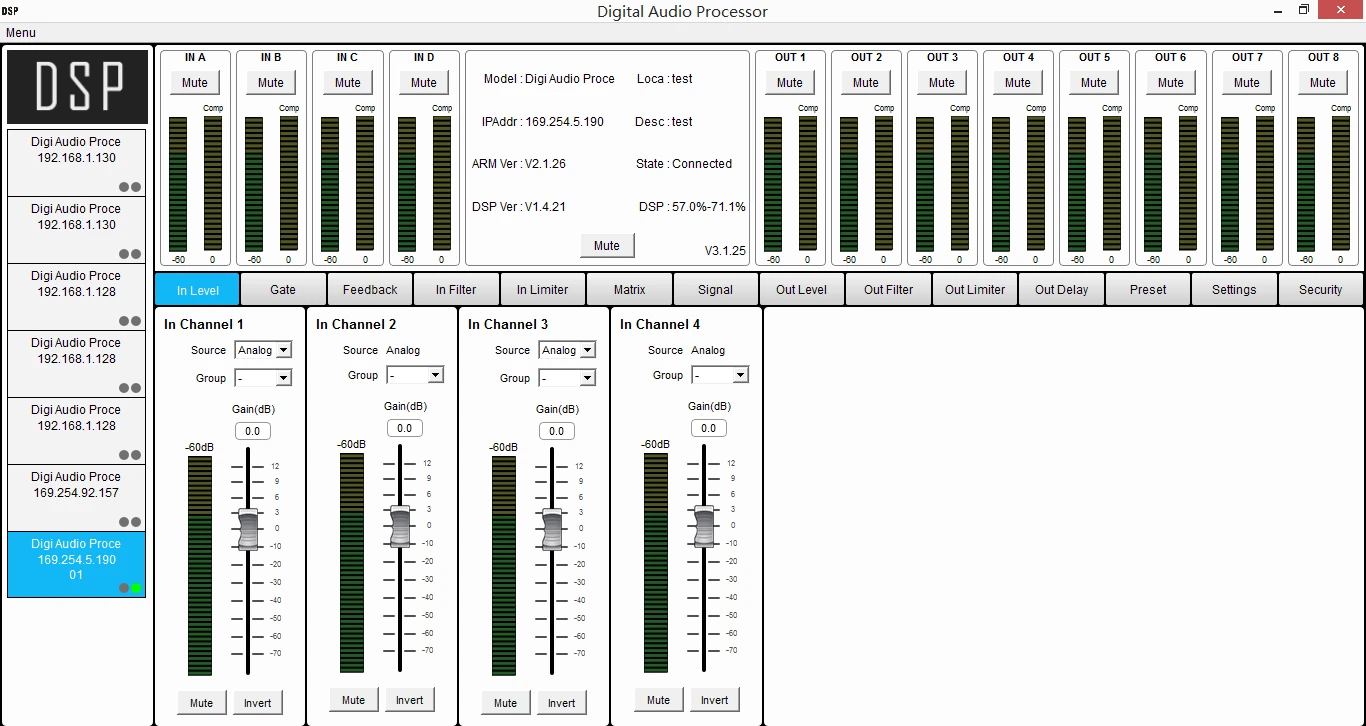

Step 4: Enter the password: admin, and you will be successfully connected.
Other supplements:

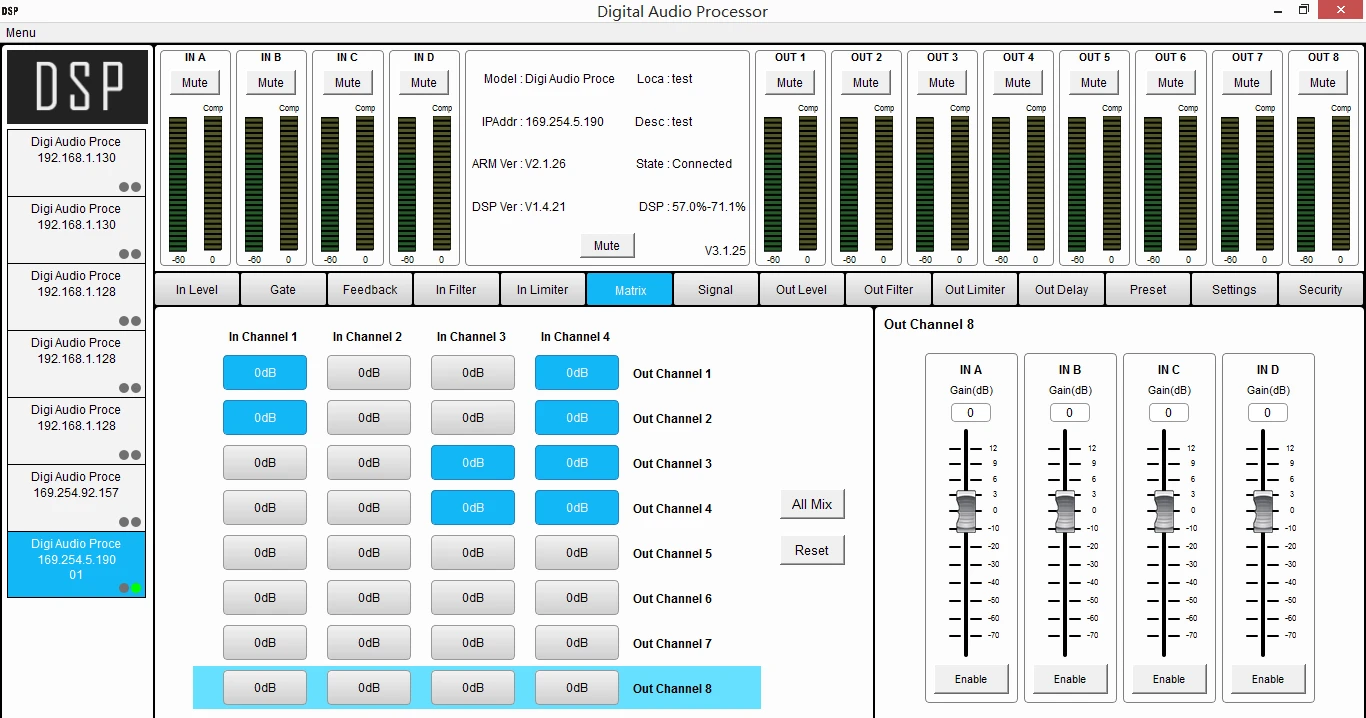

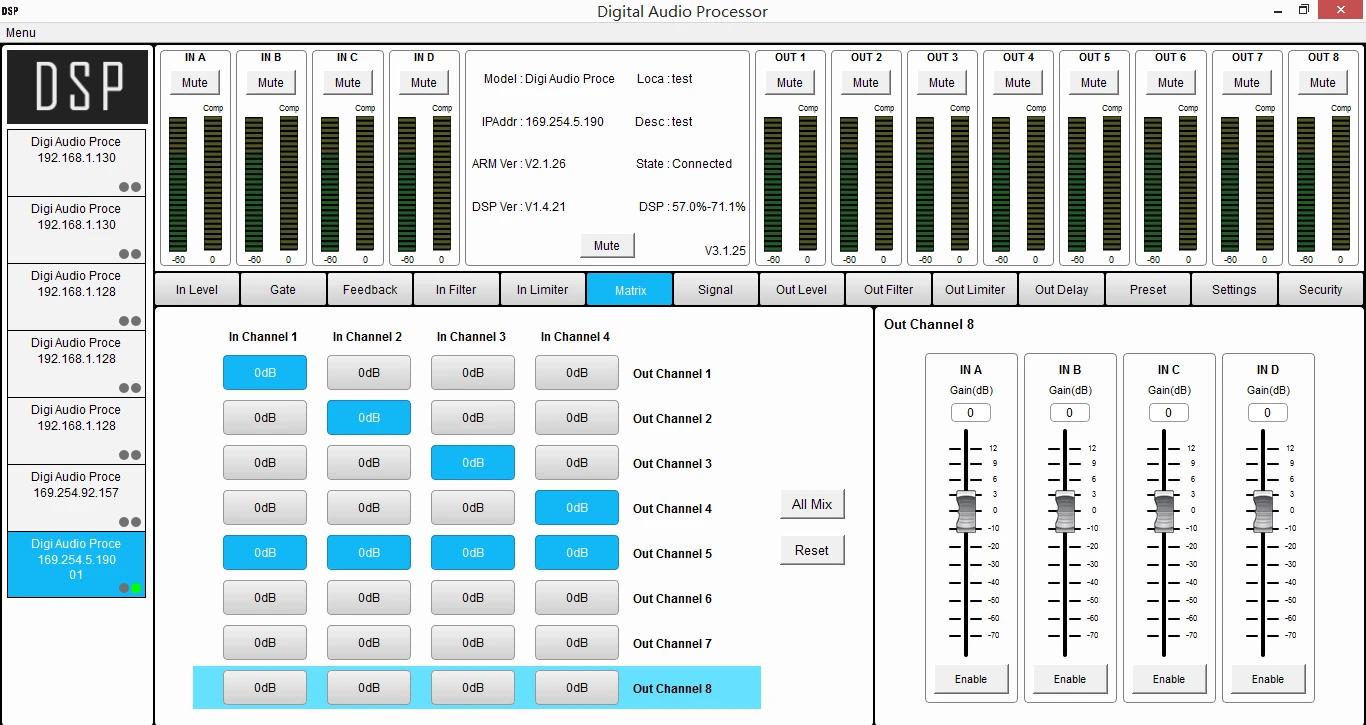

If you need to set different input and output signals, there are two common settings below that can be saved to the computer.
Setting one: 2 input signals, 4 output signals.
Setting 2: 4 input signals, 4 output signals

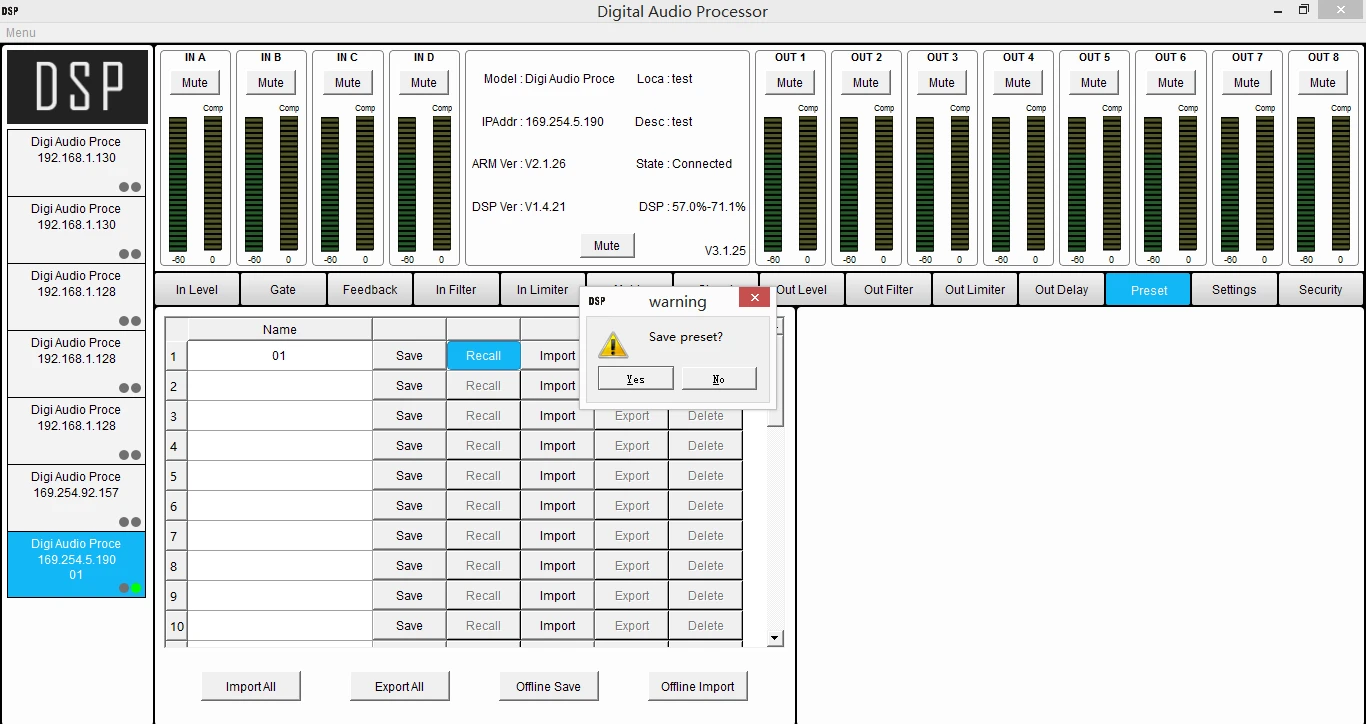

Saving method: Preset - Save - Export - Import
