The A-9006S is a high-power, active dual 18-inch subwoofer designed to serve as the low-frequency core of professional sound reinforcement systems. It is widely used in applications such as large-scale stage performances, outdoor music festivals, live music venues, and entertainment bars. Featuring a fully integrated "speaker + amplifier + DSP" design, it eliminates the need for external amplifier racks or processors—simply connect the power and signal cables to put it into operation.
The A-9006S features a trapezoidal or rectangular enclosure design consistent with professional stage speaker standards; typically constructed from high-quality birch plywood and finished with a durable, anti-slip coating, it offers excellent impact resistance and weatherability. Internally, the enclosure utilizes an optimized bass-reflex or band-pass design—incorporating precisely calculated ports or radiator structures—to enhance low-frequency efficiency while ensuring rapid transient response and clean, powerful bass, thereby avoiding muddiness or sluggishness.
The A-9006S is positioned as a professional-grade active subwoofer, designed primarily for professional sound reinforcement applications that demand exceptional low-frequency energy and high sound pressure levels. Typical use cases include:
Large-scale outdoor performances and music festivals: In open-air venues accommodating tens of thousands of people, the SUB A-9006S delivers low-frequency energy across a vast area, ensuring that even the audience at the rear experiences powerful, impactful bass.
Indoor concerts and theaters: When paired with full-range line array speakers, it compensates for the limited low-end output of full-range units, creating a complete and balanced frequency response.
Live DJ sets and nightclubs: Powerful bass is essential for creating the right atmosphere in genres like EDM and Hip-Hop; the SUB A-9006S high power output is perfectly suited to these demands.
Fixed installations: Ideal for venues requiring reliable, long-term operation, such as bars, live music venues, and multi-purpose halls.
A-9006S Subwoofer Hardware Fundamentals:
Dual 18-inch Woofers: Features two large-diameter 18-inch woofers with high-flux magnetic circuits and long-excursion designs, capable of moving large volumes of air to produce high-impact low frequencies. Select versions utilize neodymium magnet drivers, effectively reducing cabinet weight while maintaining high power output, thereby facilitating transport and rigging.
High Power Handling: The A-9006S boasts exceptional power handling capabilities, allowing for sustained, high-load operation without distortion—meeting the rigorous demands of professional stage performances.
Built-in DSP: An integrated DSP module provides professional audio processing functions such as crossover, equalization, limiting, and delay. Users can fine-tune parameters via front-panel controls or computer software to ensure seamless integration with full-range speakers.
Integrated Active Amplifier Design: Features a built-in, high-efficiency Class-D amplifier module that drives the woofers directly without the need for an external amplifier. This simplifies system setup, minimizes signal transmission loss, and reduces the equipment failure rate.
Unlike passive subwoofers that require an external amplifier rack, the 9006-AS integrates all signal processing and amplification onto an active amplifier module within the enclosure; users can handle all connections and adjustments directly via the rear panel:

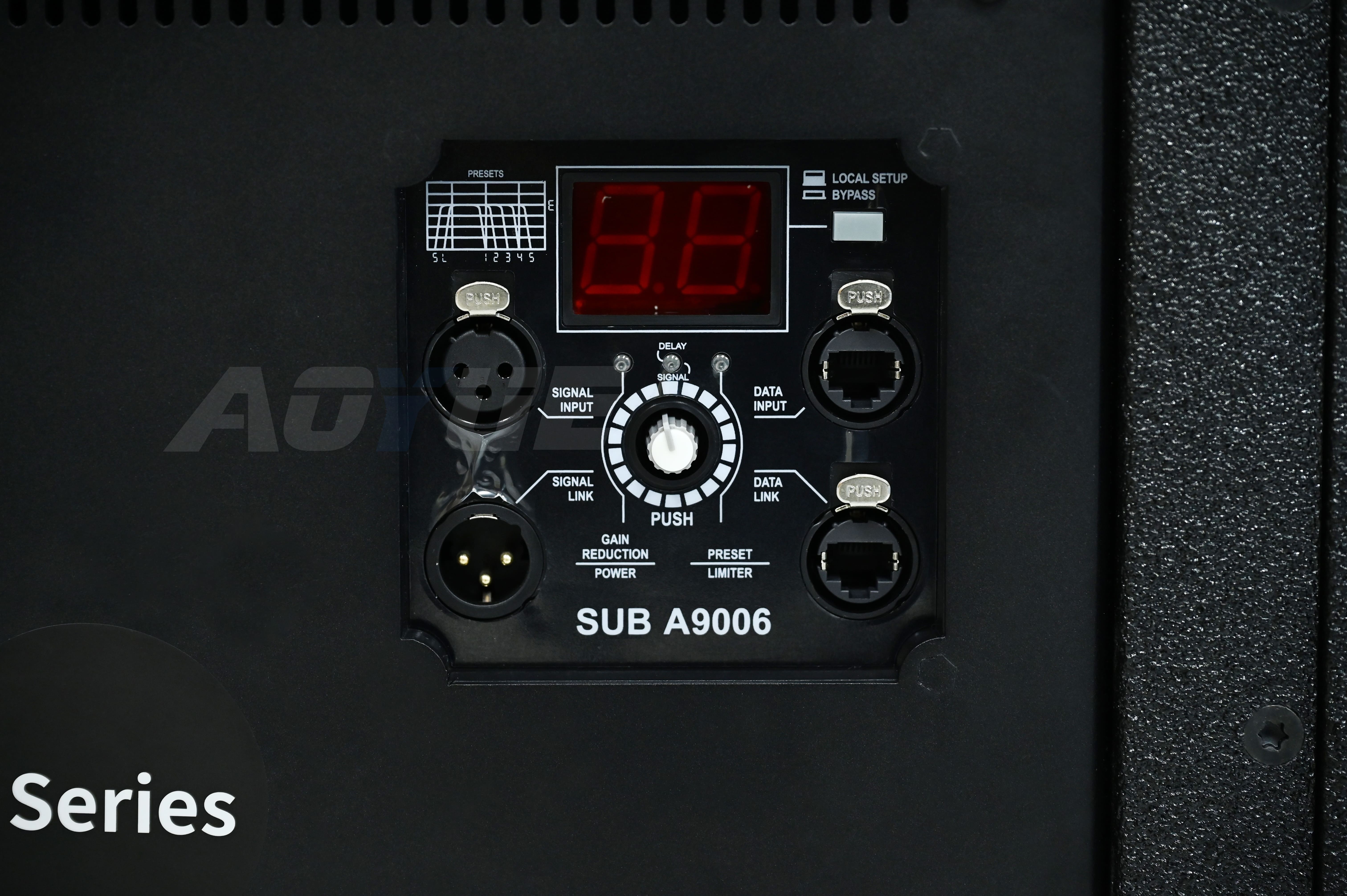

Signal Interfaces
XLR Balanced Input/Output: +4dBu input sensitivity, compatible with balanced/unbalanced signals; output allows signal daisy-chaining to the next subwoofer or full-range speaker.
RDNet EtherCon Network Port: Connects to the RCF RDNet network, enabling remote monitoring, EQ adjustment, and firmware management for the entire system (daisy-chaining up to 256 devices) via PC software.
Power Interfaces
PowerCON IN/OUT: Supports wide-range voltage input (90–240V); a regulated power supply ensures full-power output between 100V and 260V; multiple subwoofers can be daisy-chained for power, significantly reducing cabling requirements.
DSP Controls (Rear Panel)
The rear control panel offers intuitive physical controls: Gain, Low Cut (30/40Hz), Crossover (variable 50–400Hz), Volume, Delay, Phase switch, and Preset selection; includes integrated soft-clipping limiters, RMS limiting, and thermal protection.
RDNet Networked Control
Integrated RDNet port on the rear panel. RDNet is RCF’s proprietary network control platform, allowing unified adjustment of levels, delay, EQ (including linear-phase FIR), and polarity across the entire system—as well as management of digital matrices and amplifiers. It supports daisy-chaining a large number of devices on a single network and enables array-level Air Compensation and Cluster shaping.
With its dual high-power 18-inch drivers, built-in DSP processing, and integrated active design, the A-9006S provides a reliable and efficient low-frequency solution for professional audio systems. Proper connection and tuning not only maximize its hardware potential but also ensure a balanced frequency response and stable operation for the entire audio system.
