Model
EFX16

Item specifics

Channel
16 mono + 2 groups stereo
Stereo inputs
3-band EQ on stereo inputs
Stereo input
100KΩ
Line Input
11KΩ
Frequency response
20Hz-20KHz, ± 0.5dB
Main output impedance
75Ω
Low frequency
80Hz ,± 15dB
Power supply
AC 85-270V 50 / 60Hz
EQ (mono input) High frequency
12kHz ± 15dB

Product review

Description

16 channel professional audio built in DSP digital effects EFX16 mixer console
Technical Specifications
8,12,16 mono channels and 2 groups of stereo input channels
Simple, flexible, high efficient, fine and super linear mic preamp
With Built-in DSP digital effect processor
Overload  lamp can  adjust its lightness according to the event  of overload for warning
A inserting point is equiped for mono channel and main  output,
So to connect external signal processor
Provide real professional +48V phantom power for condenser mic
3 bands EQ, HM and LM swept, with England style
2 AUX outputs, all can switch to pre/post fader and connect with external processor
High accurate three color level column, to display output level exactly
60mm high precision handspike POT attenuator
Built-in squelch switch power source supply, more flexible and convenience simple mountable rack (optional).

Specification:
Total Harmonic Distortion and Noise: 30dB, <0.007%
Frequency response: 20Hz-20KHz, ± 0.5dB
Input and output impedance: Microphone input: 2.4KΩ
Line Input: 11KΩ
Stereo input: 100KΩ
Main output impedance: 75Ω
EQ (mono input) High frequency: 12kHz ± 15dB
IF: 140Hz-3kHz, ± 15dB
Low frequency: 80Hz ,± 15dB
Working conditions: Temperature range: -10 ℃ ~ +45 ℃
Power supply: AC 85-270V 50 / 60Hz

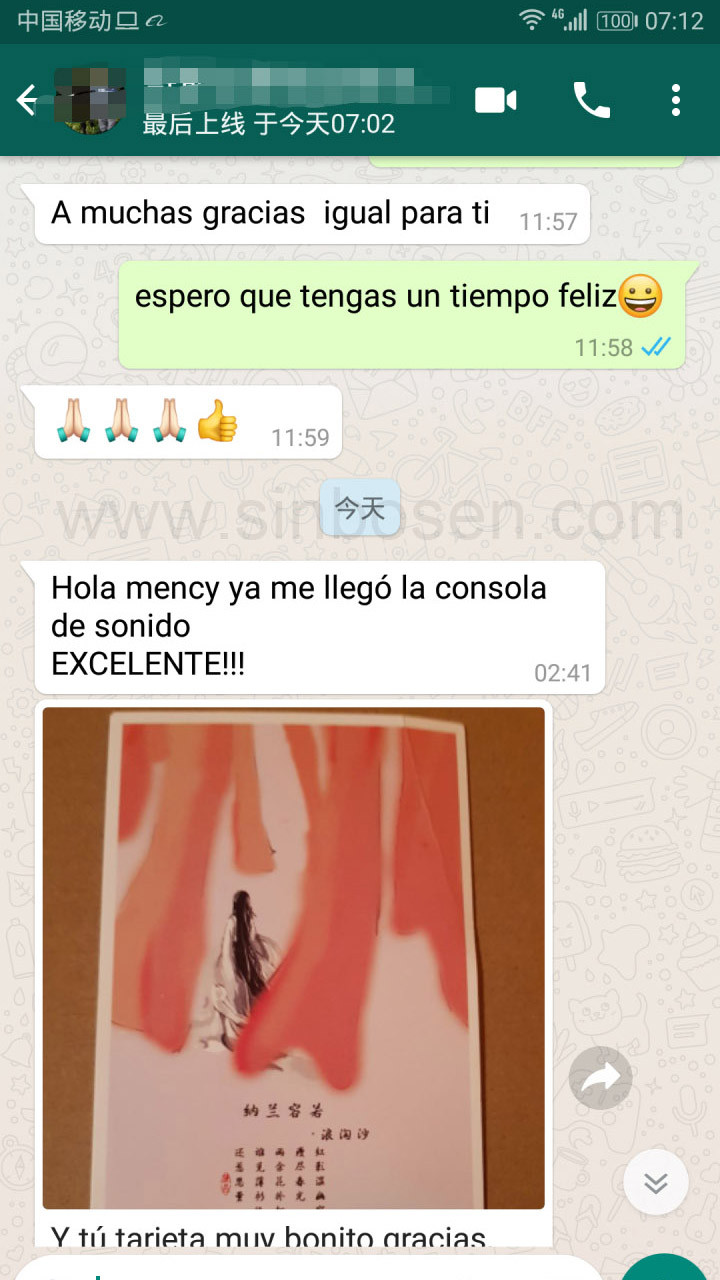

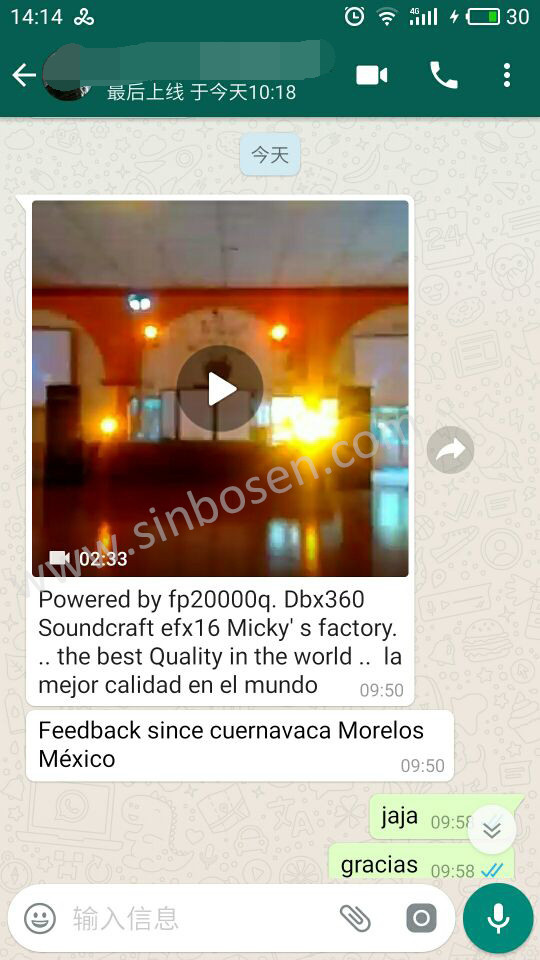

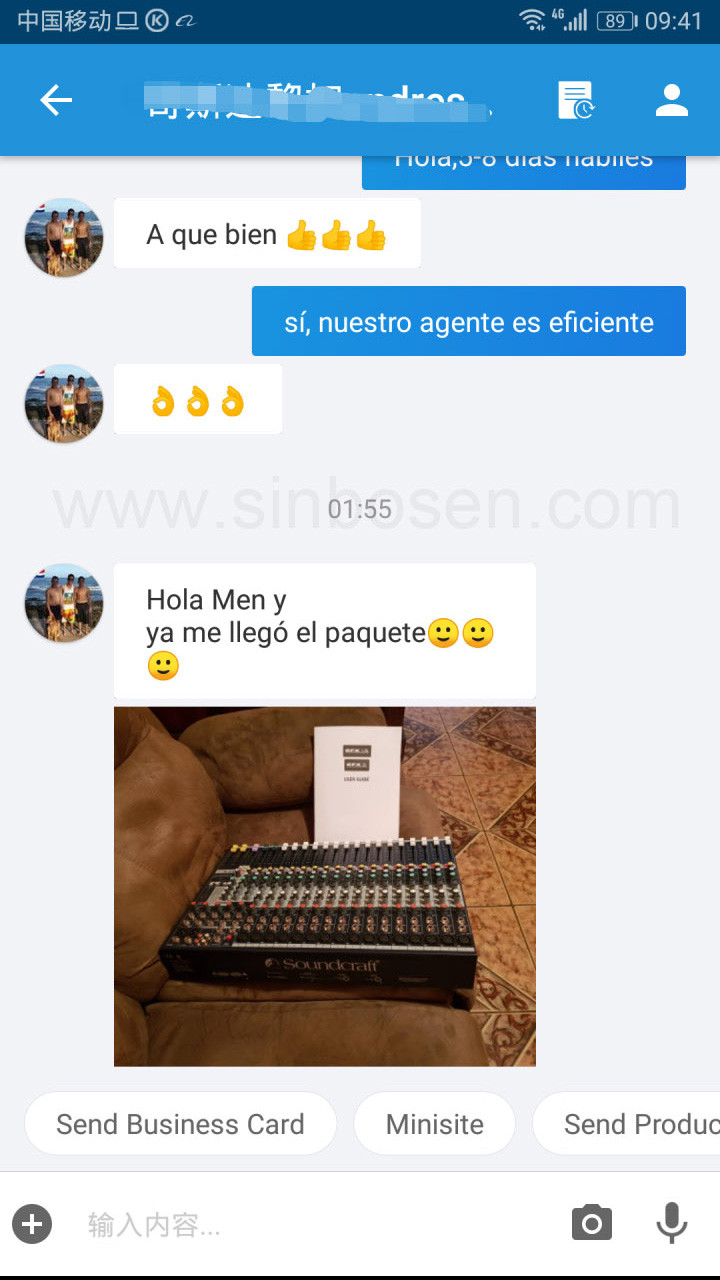

Client feedback
