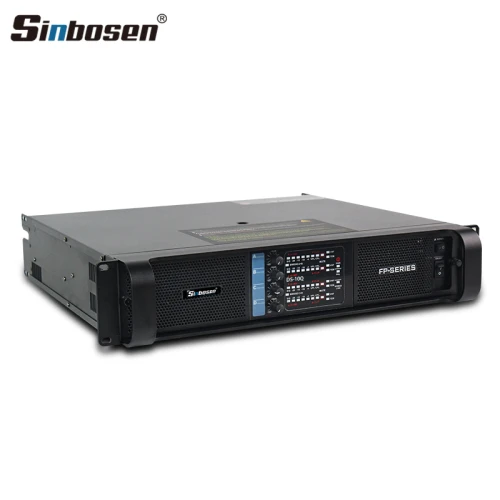

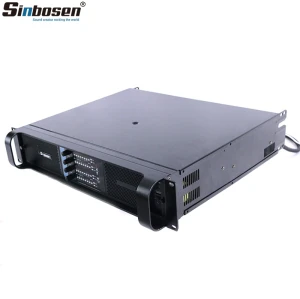

Sinbosen DS-10Q 4 channel 2000 watt professional Touring power amplifier

Sinbosen DS-10Q 4 channel 2000 watt professional Touring power amplifier

Model: DS-10Q

Item specifics

Upgraded Version Model: DS-10Q Power Amplifier

Type: Professional Power Amplifier

8Ω Output Power: 1350W x 4 channels

4Ω Output Power: 2100W X 4 channels

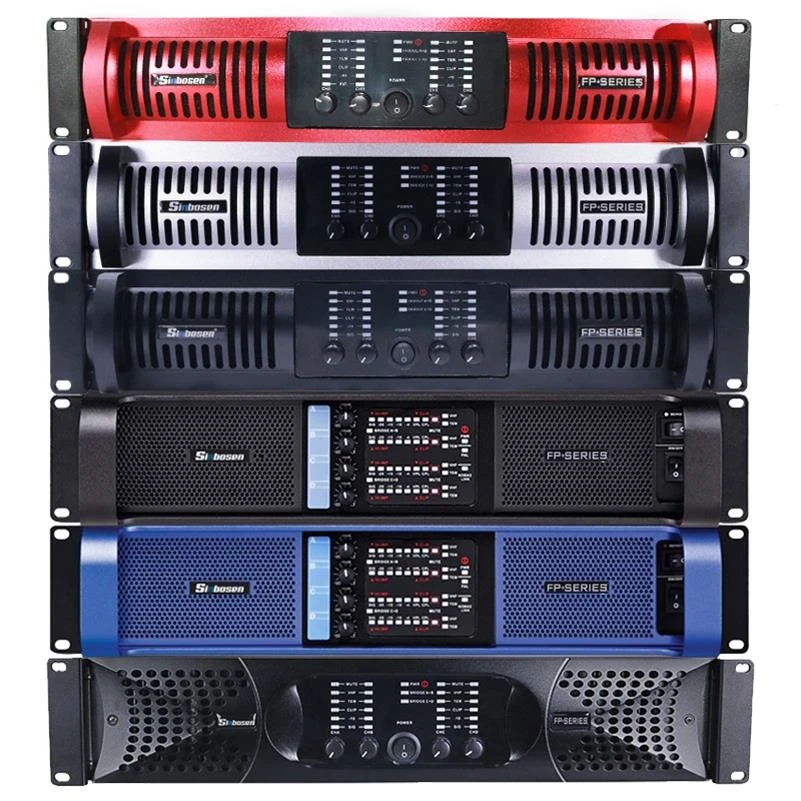

Color: Various Panels/Customizable

Class: Class TD Power Amplifier

Channels: 4 channels power amplifier

Capacitors: Siemens Capacitors 3300uf/200V

Special Service: OEM service offered

For: 15 Inch Line Array Speaker

Certification: CE ROHS, TUV

Warranty: 3 Years

Review

Description

Sinbosen DS-10Q: OneDS-10Q amplifier can use with 4 pcs Dual 15-inch speaker

	DS-6Q	DS-8Q	DS-10Q	DS-20Q	DS-22Q
Channels	4 Channel Power Amplifier
Class	Class TD Power Amplifier
8Ω Stereo Power (RMS)	625WX4	1000WX4	1350WX4	2200WX4	2500WX4
4Ω Stereo Power (RMS)	1300WX4	1600WX4	2100WX4	4000WX4	4650WX4
8Ω Bridged Power(RMS)	2500WX2	3200WX2	4200WX2	8000WX2	9300WX2
4Ω Bridged Power(RMS)	3000WX2	3800WX2	5000WX2	9000WX2	15000WX2

DS-10Q Amplifier Performance Description

-4 Channel Class TD Switching power amplifier

-4 x 2,100 Watts into 4 Ohms,4 x 1,350 Watts into 8 Ohms

-Create SUPER sound quality,good for single15”/dual15” speaker

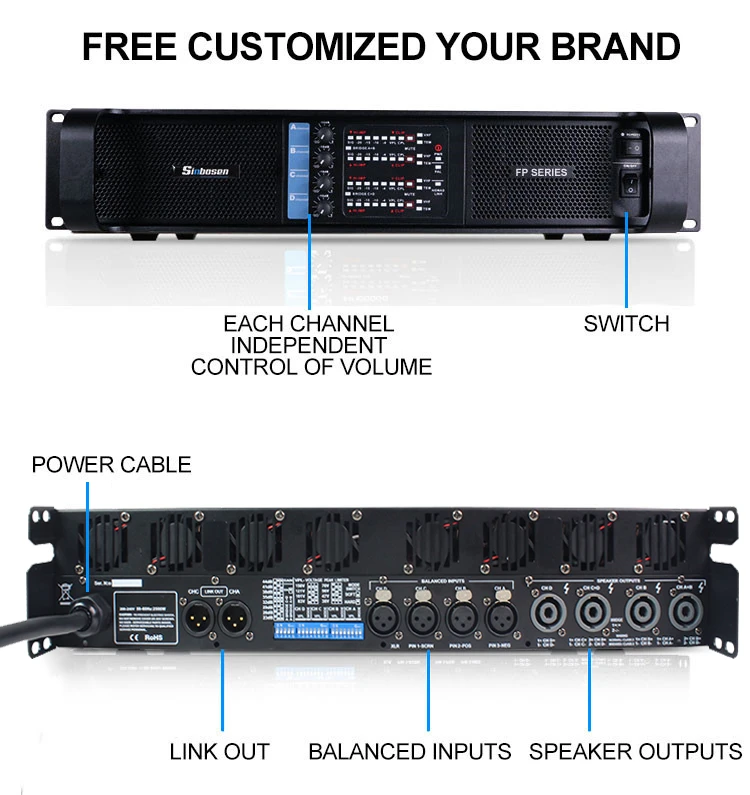

-Separately controllable on Gain

-Scalable Voltage Peak Limiter (VPL)

-Bridge-mode operation for Touring Applications

-Comprehensive protection scheme

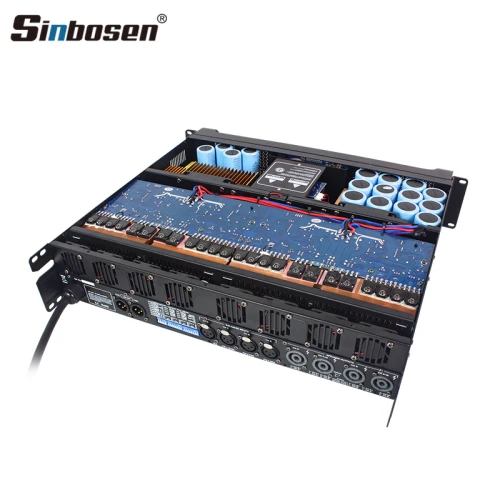

-Use 12Pcs Original Siemens high quality capacitors 3300uf 200V +4pcs 2200uf Capacitors

-Use Original ONSEMI transistor

-Original Neutrik XLR*/Speakon connectors

-Extended heatsink board to 95 mm

-Temperature protection;Over current protection;Short circuit protection built-in

DS-10Q SPECIFICATIONS:

-Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

-THD 20 Hz - 20 kHz for 1 W: <0.1%

-Signal-to-Noise Ratio: >112 dBA

-Channel separation (Crosstalk) at 1 kHz: >70 dB

-Input Connectors (per channel): 3-pin XLR, electronically balanced

-Output Connectors (per channel): Binding Posts 2-pole

-TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input

-Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable

-Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

-Input impedance: 20 kOhm

-Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

-Dimensions (W*H*L): 88mmX483mm×396mm

-Packing dimension (W*H*L): 180mmX560mm×500mm

-Net weight: 12.5kg

-Gross weight: 14.5kg

SUITABLE FOR

If YOU HAVE ANY QUESTION,PLEASE

CONTACT SUPPLIER>>>

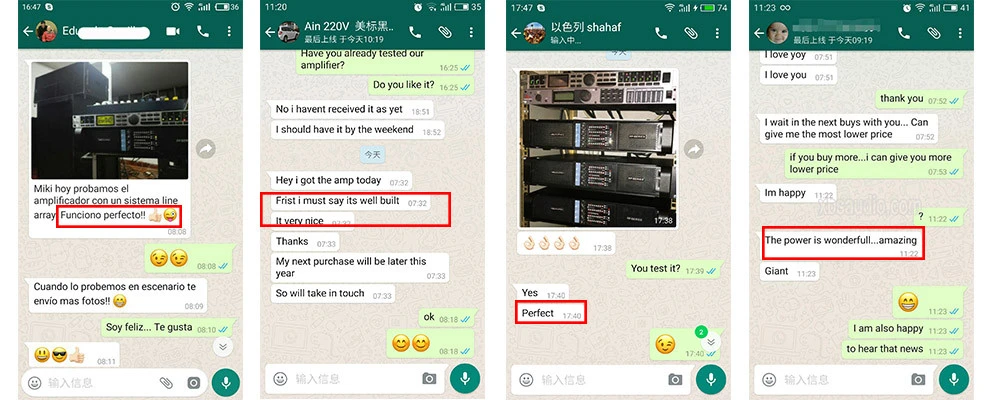

Sinbosen DS-10Q Feedbacks

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;

Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
