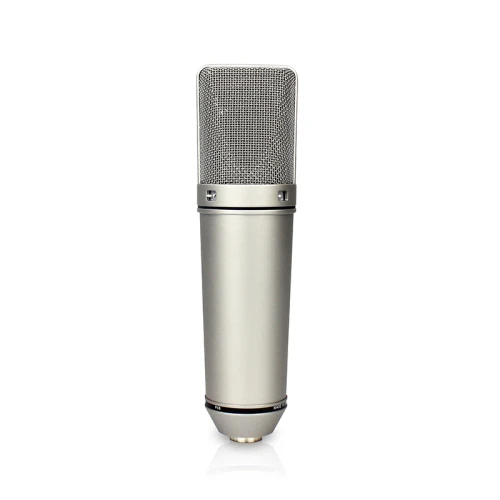

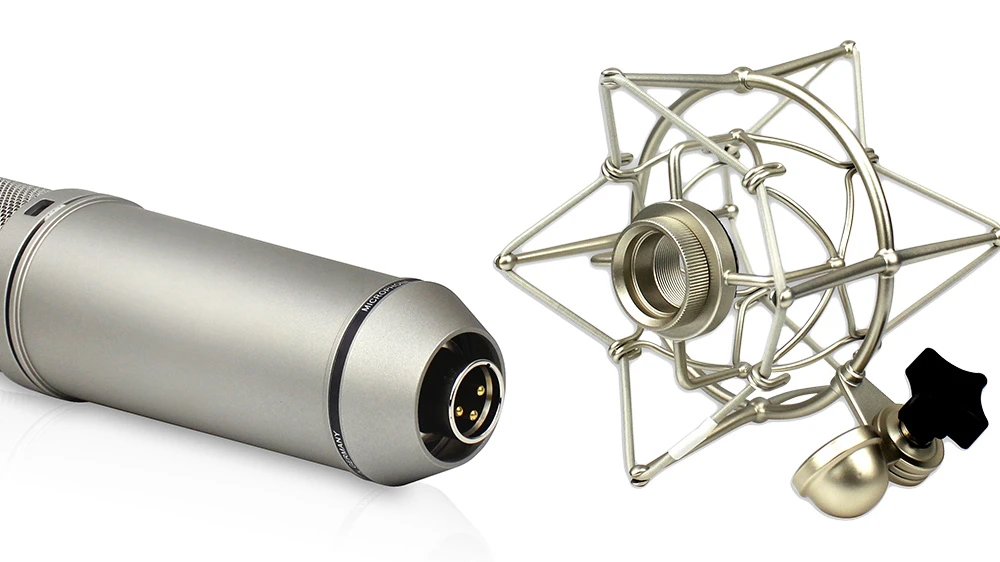

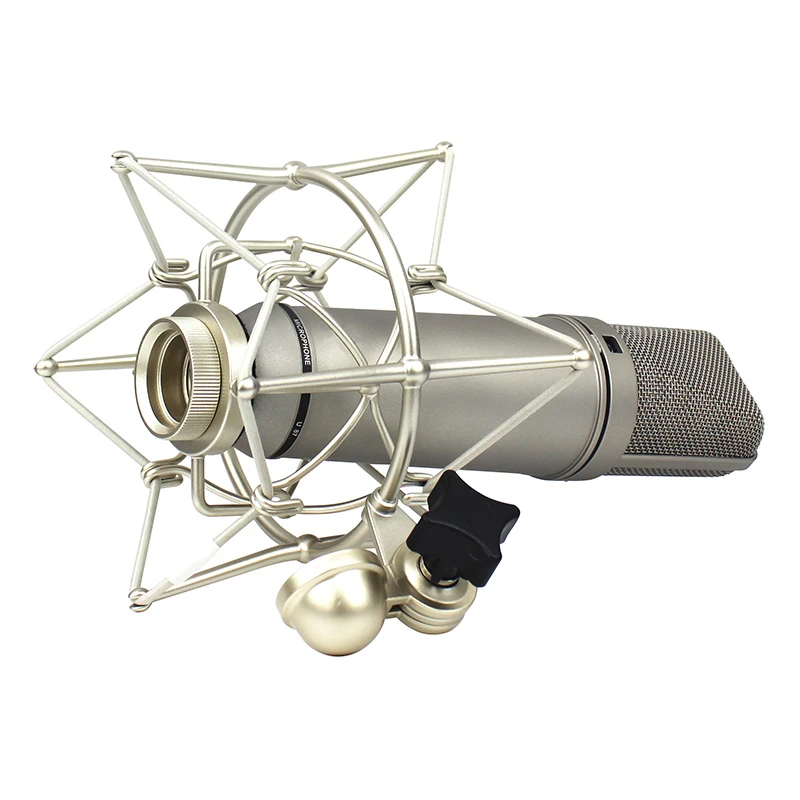

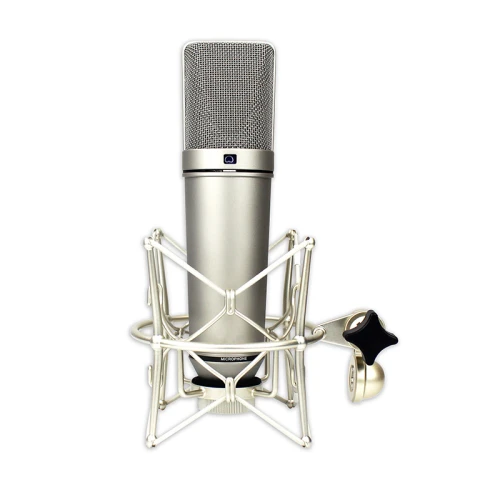

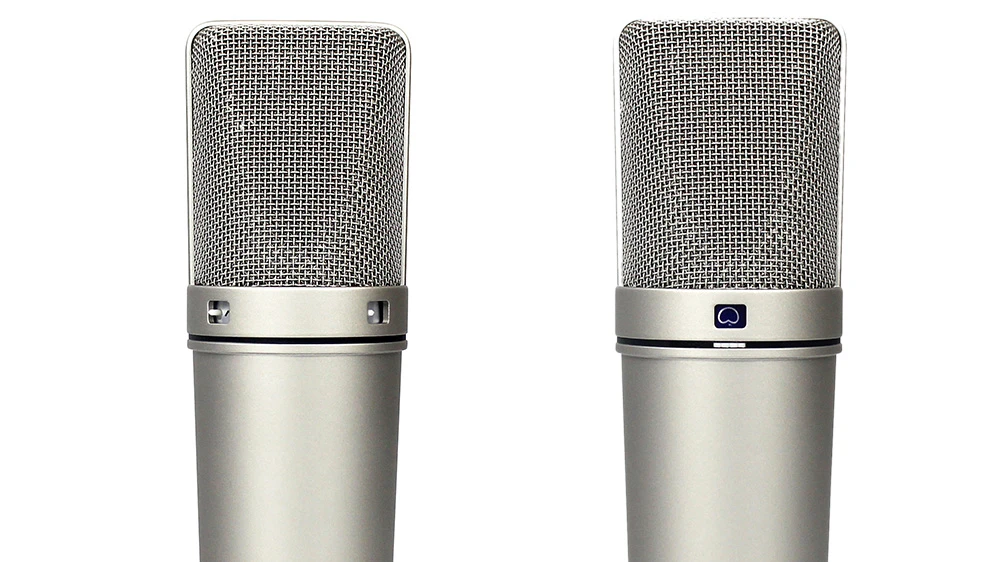

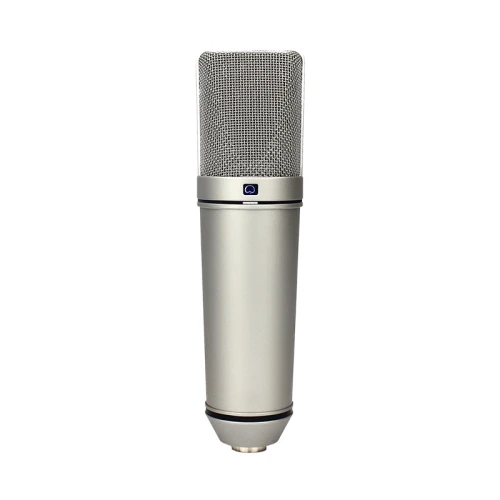

Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Sinbosen U87 Omni-directional cardioid Figure 8 Studio recording condenser micropone wired
Model
U87

Item specifics

Type
Dynamic
Applications
sound reinforcement, broadcasting, studio recording
Frequency Response
20 to 20,000 Hz
Polar Pattern
Omni-directional cardioid Figure 8
Connector
Three-pin professional audio (XLR), male
Features
Superb sound quality

Review

Description

This is a title
It is an ideal choice for wireless broadcasting, film and TV studios. Mainly used as orchestral recording, live recording microphone, and can be widely used in various music and speech.
Technic specification
●Acoustic working principle: pressure gradient sensor
●Pick up Patern : omnidirectional, Cardioid, figure-8
●Frequency range: 20 Hz to 20 kHz
●Sensitivity: 20/28/22 mV / Pa+1 dB (omnidirectional/Cardioid /Figure-8)
●Rated impedance: 200 ohms
●Rated load impedance: 1 ohm
●Equivalent noise level, CCIR 1: 26/23/25 dB (omnidirectional/Cardioid /Figure-8)
●Equivalent noise level, A weighted 2: 15/12/14 dB-A
(omnidirectional/Cardioid /Figure-8)
●THD maximum SPL 0.5% 3: 117 dB (cardioid)
●Maximum output voltage: -6 dBu
●Power supply voltage: 48 V± 4 V
●Current consumption: 3 mA
●Matching connector: 3-pin XLR
●S/N ratio A-weighted 1: 79/82/80 dB (omnidirectional/cardioid/Figure-8)
There are 3 switches , The first one is the switch for switching the directivity mentioned above, Second is Reduce the device switch, Third is Low frequency roll cut switch.
