Model
AD48

Item specifics

Model Name
AD48
Type
Digital audio processor
Frequency Response
20Hz-20kHz;-0.5dBu
Number of Channels
4 input 8 output
Power Requirements
25w
Power Supply
Switching Power Supply
Operating Voltage
AC 85V -250V /50-60Hz
Net Weight
6kg
Color
Black

Product review

Description

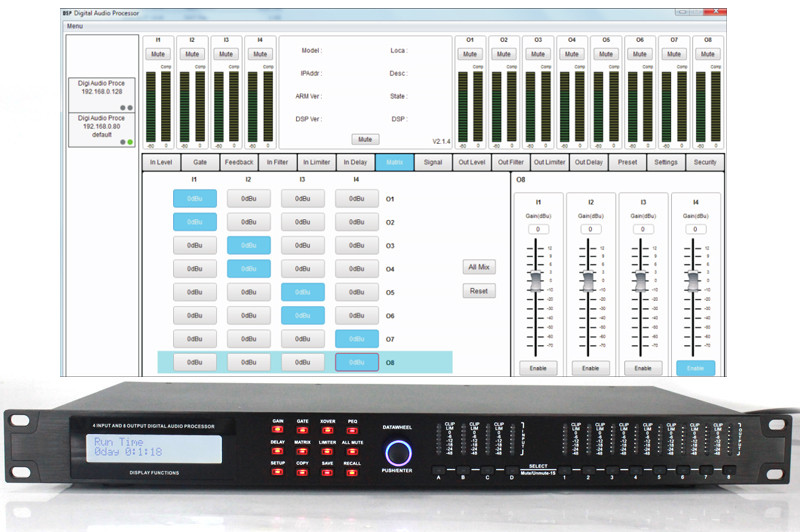

4 input 8 output DIGITAL AUDIO PROCESSOR Software Running Environment
Operating system request: windows XP、Windows 7 32Bit 、windows 7 64Bit
Storage space occupation: 50Mb
Network environment: 100m LAN or wireless router

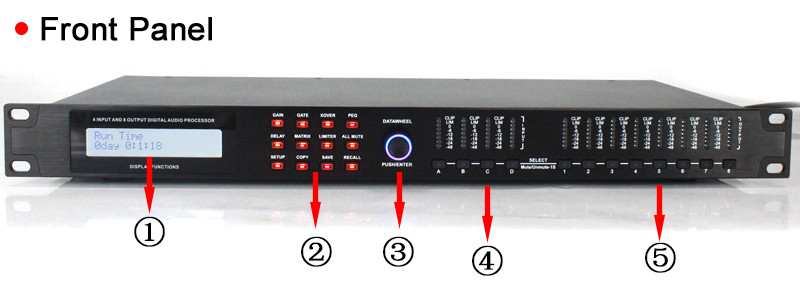

①LCD Screen
ARM version
Control IP address
Location description
Custom properties
Electric running time

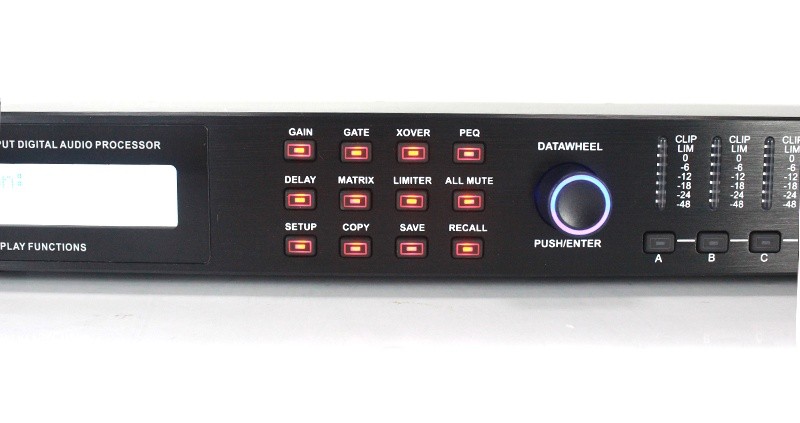

②Audio Function
Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Recall
③DataWheel
Data alignment
④Input Level Indicator Light
Above is input signal indicator light. When the input signal exceeds  - 40dBu, the signal indicator light is illuminated, indicating that the audio signal is input from the corresponding channel. Below is auxiliary button and mute switch.
⑤Output Level Indicator Light
Above is output signal indicator light. When the output signal exceeds -40dBu, the signal indicator light is illuminated, indicating that the audio signal is output from the corresponding channel. Below is auxiliary button and mute switch.
①Power Switch
②AC In
Support 100V~240V AC voltage, please use the standard power cable, use power outlet with grounding.
③RS-232 Interface
Use to connect the third - party central control system.
④Ethernet Interface
Connect to switch using standard 5 Ethernet networks, also can connect directly to laptop.
⑤Audio Input Interface: Channel 1~4
Standard XLRF input, balance audio input interface.
⑥Audio Output Interface: Channel 1~8
Standard XLRM output, balanced audio output interface.
