Powered Column Speaker CIVA 2 way passive for Home theater conference hall
- Model
- CIVA
Item specifics
- Type
- 2 way passive column speaker
- Max SPL
- 137 dB
- Bandwidth
- 87 Hz- 20 KHz
- Transducers
- LF : 6 x 5" ; HF : 3 x 1.75"
- Weight
- 21 kg
- Application
- Home theaters, conference halls, shopping malls
Review
Description
CIVA Description
| 2-way passive 5 inch CIVA Specification | |
| Transducers | MF: 6 x 5" cone drivers HF: 3 x 1.75" diaphragm compression drivers |
| Coverage (-6 dB) | Vertical directivity: +5 /-21° Horizontal directivity: 140° |
| Nominal impedance | 8Ω |
| Usable bandwidth (-10dB) | 87Hz-20kHz (-10dB) |
| RMS power handling | 454W |
| Maximum SPL | 137dB |
| Acoustical load | LF: bass-reflex HF: waveguide |
| Cabinet | First grade plywood |
| Front | Coated steel grill Acoustically neutral 3D fabric |
| Connectors | 1 x 4-point speakON 1 x 2-point screw terminal 1 x AutoConnect |

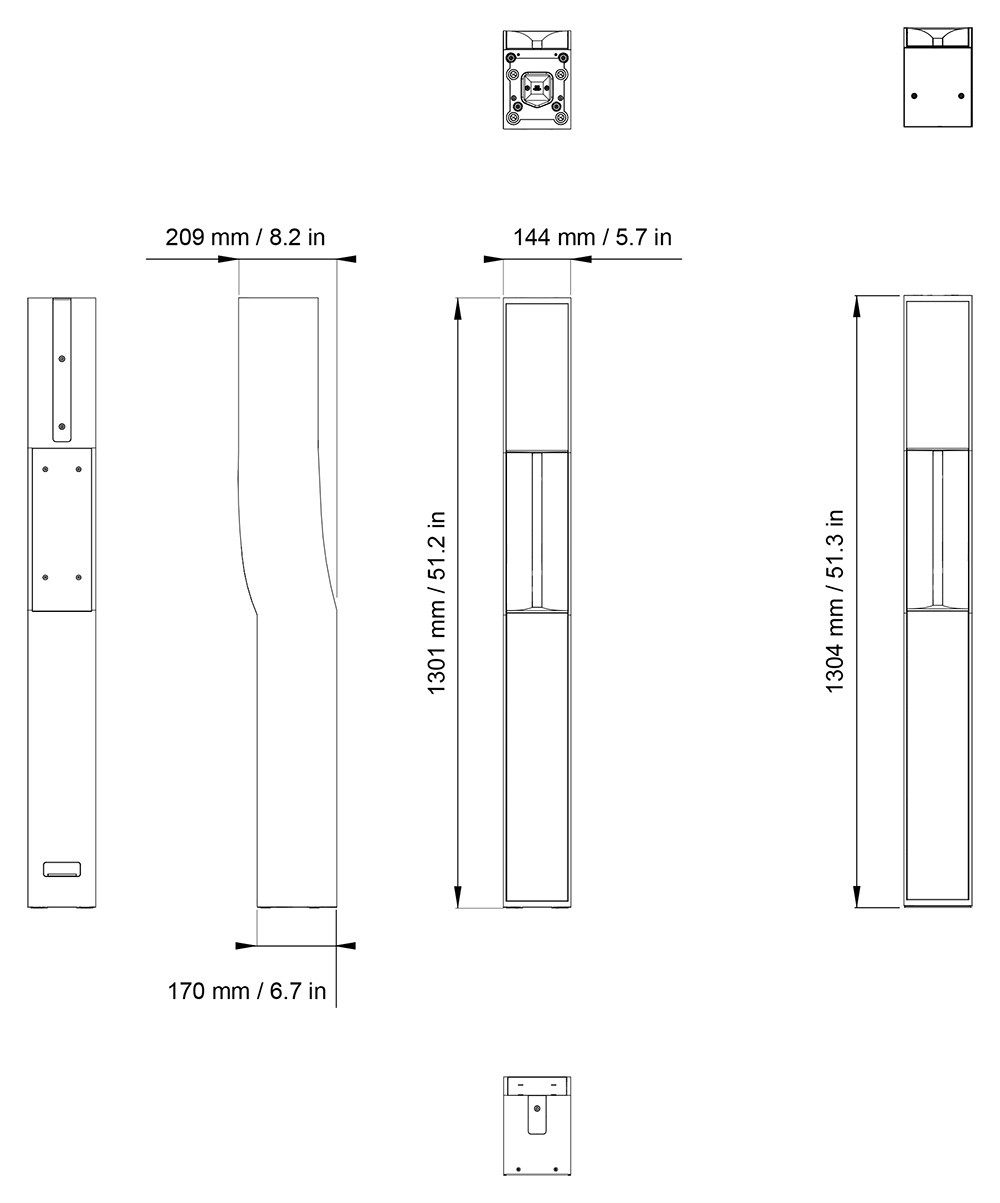

| Dimensions (W x H x D) | 144 mm x 1304 mm x 209 mm |
| Weight (net) | 21 kg / 46 lb |
Feature of CIVA
●Streamlined design.
●Exceptional coverage capability.
●Clear vocals and smooth horizontal polar pattern.
●Clear low-frequency power.
●CIVA can be stacked on top of CIVA Low. (Four magnets and grooves on the bottom of the case ensure stability).
●There are two threaded inserts on the back of the CIVA for attaching special rigging accessories.
●Exceptional coverage capability.
●Clear vocals and smooth horizontal polar pattern.
●Clear low-frequency power.
●CIVA can be stacked on top of CIVA Low. (Four magnets and grooves on the bottom of the case ensure stability).
●There are two threaded inserts on the back of the CIVA for attaching special rigging accessories.

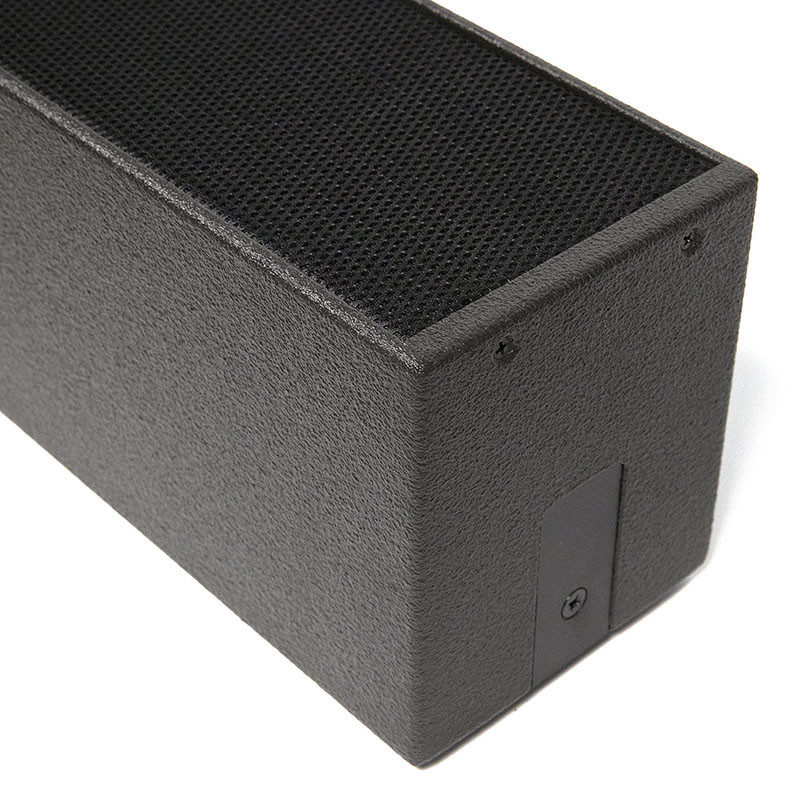

Top of CIVA

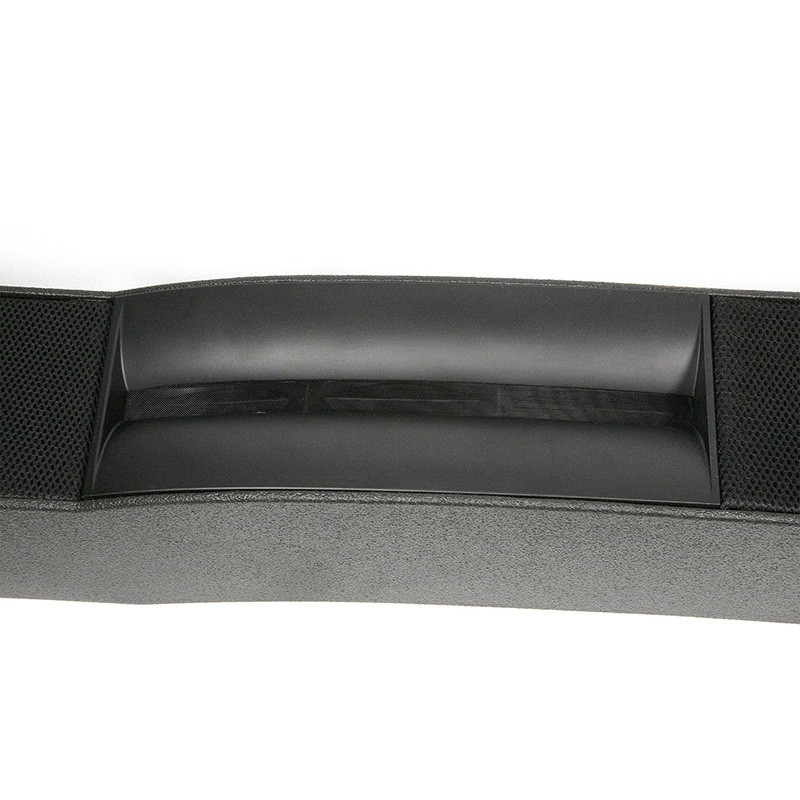

Middle of CIVA

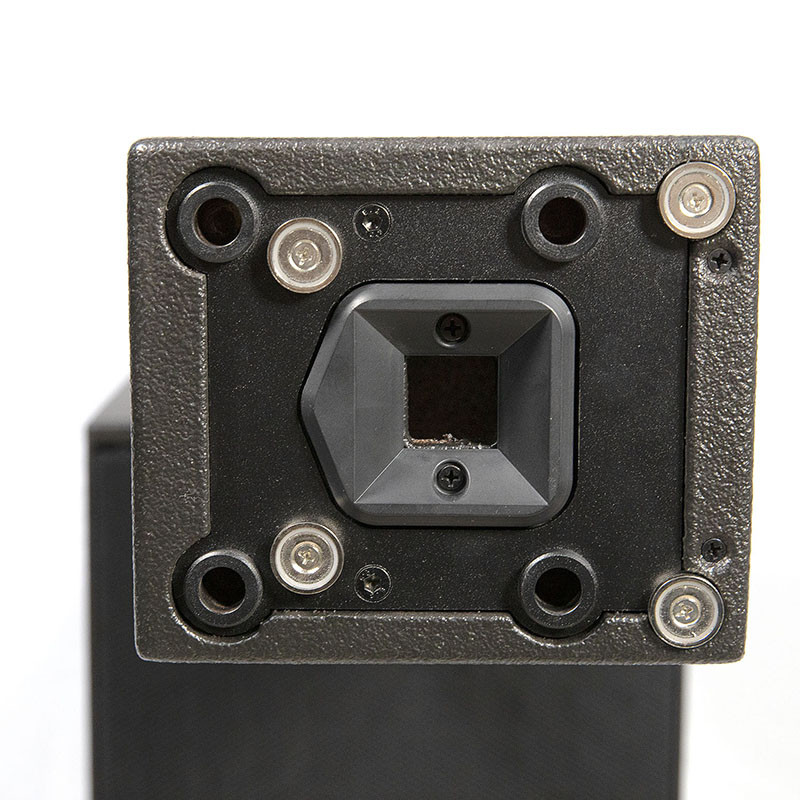

Bottom of CIVA

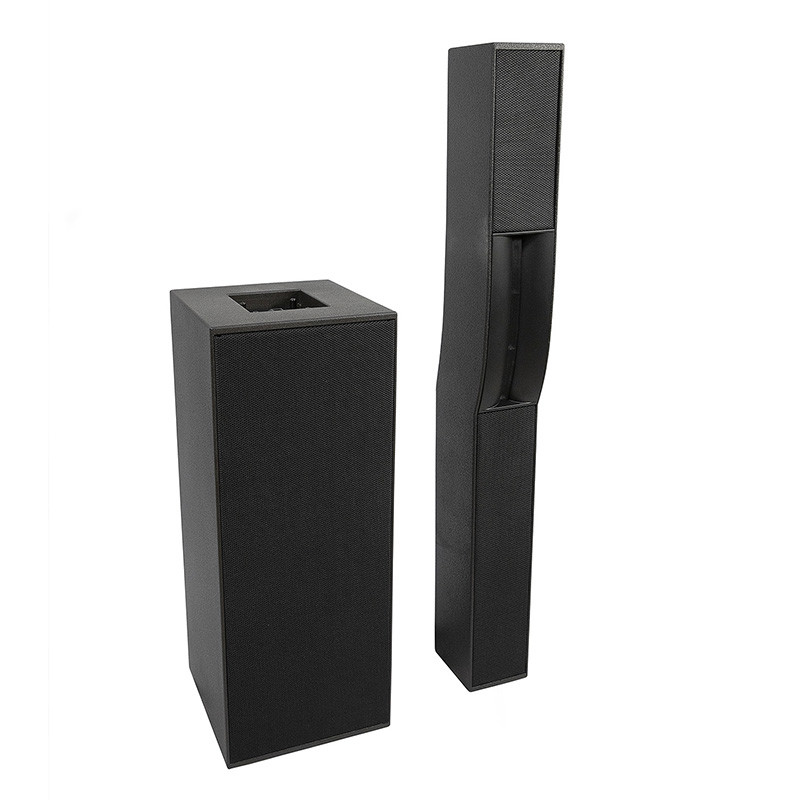

can be connected with CIVA Low

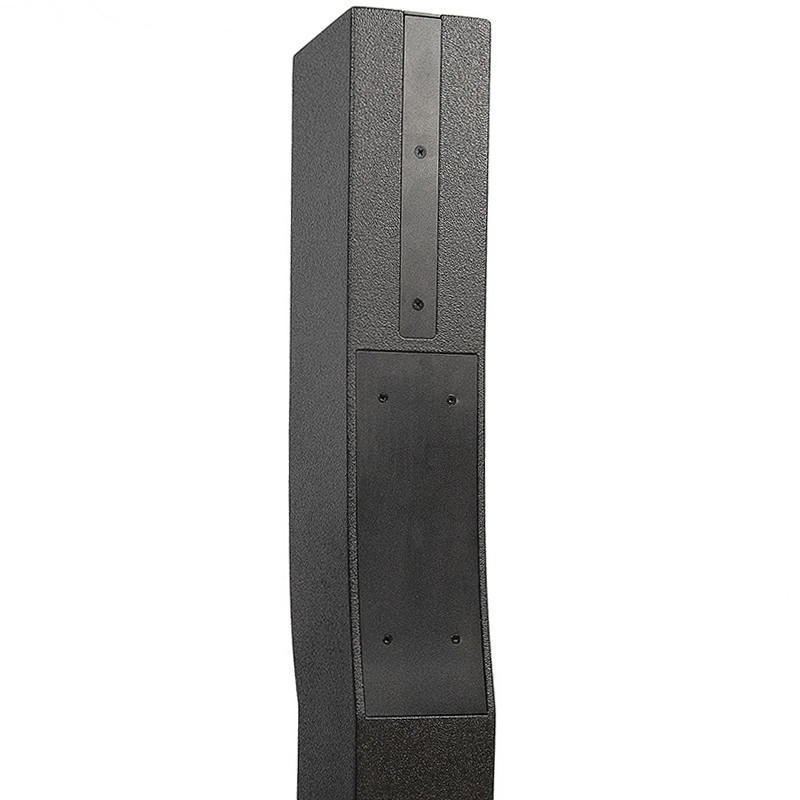

Back of CIVA
can be connected with
special rigging accessories

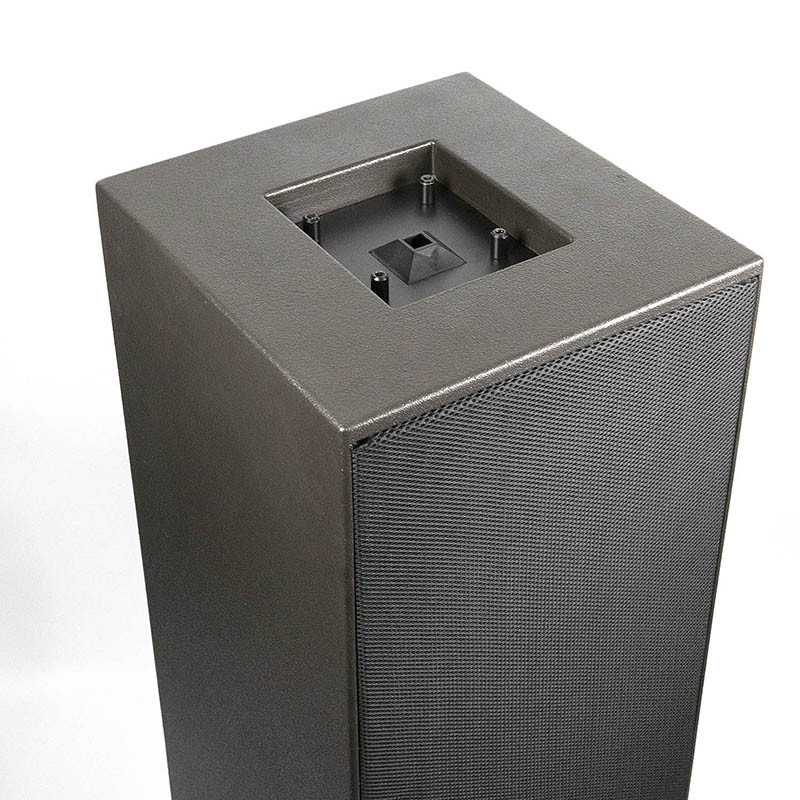

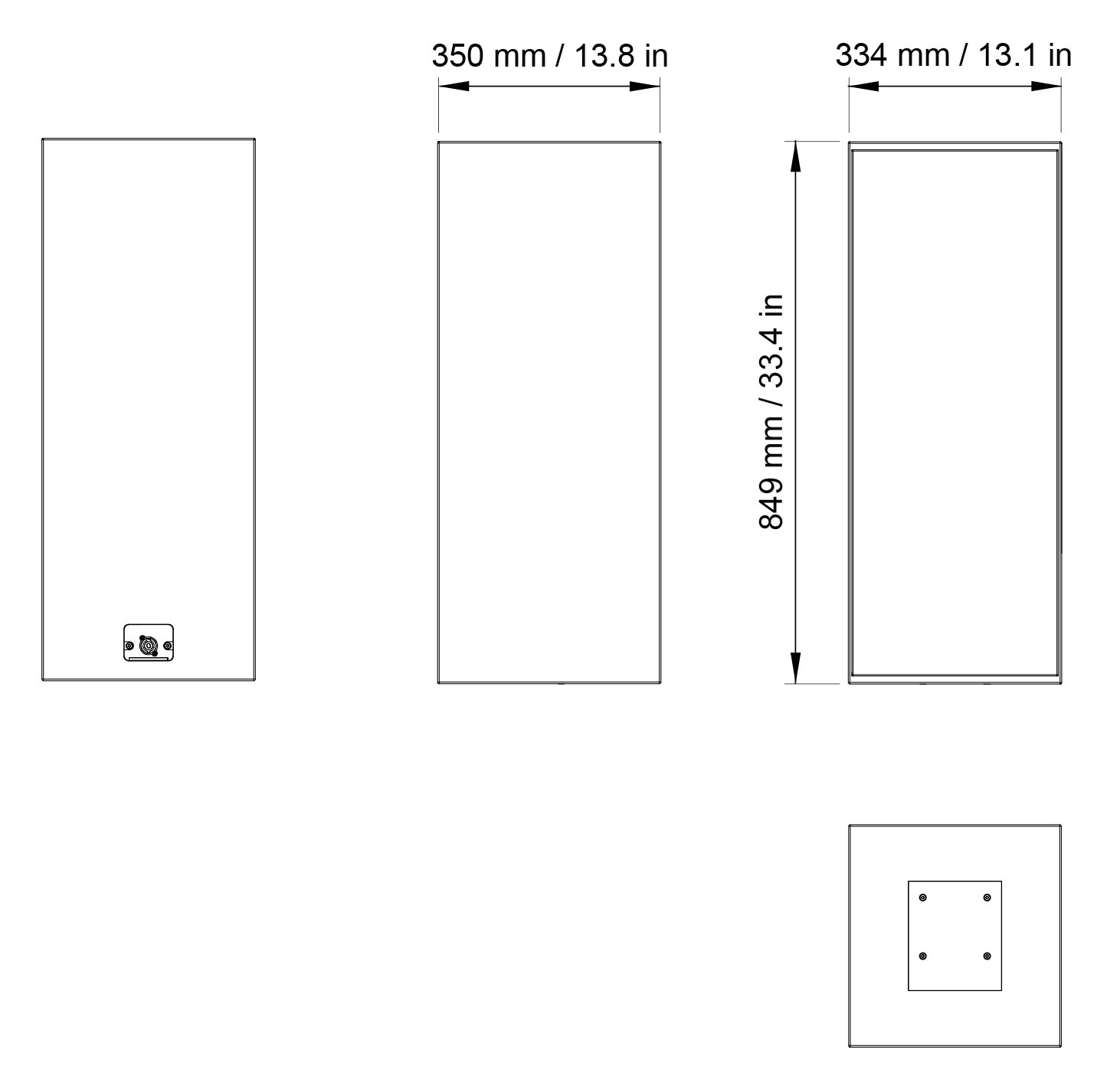

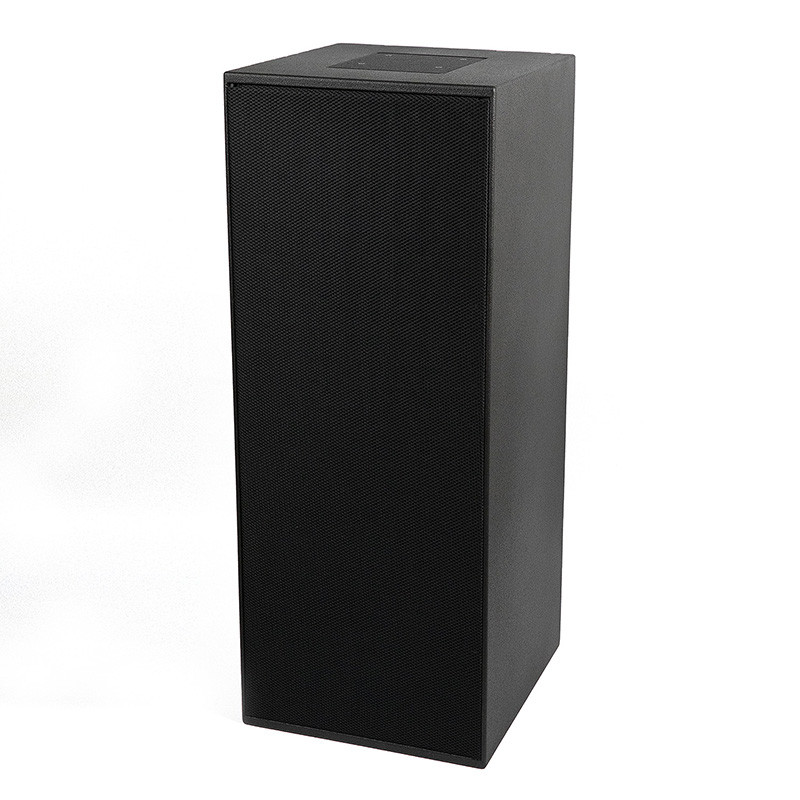

CIVA Low Description
| CIVA Low Specification | |
| Low frequency limit (-10 dB) | 40 Hz |
| Directivity | Standard |
| Maximum SPL | 137 dB |
| Transducers | 2 × 12″ cone drivers |
| Acoustical load | Load bass-reflex |
| Nominal impedance | 4 Ω |
| Connectors | 1 × 4-point speakON |
| 1 x AutoConnect | |
| Weight (net) | 29 kg / 64 lb |
| Cabinet | First Grade plywood |
| Front | Coated steel grill |
| acoustically neutral 3D fabric | |
Feature of CIVA Low
●High-power handling and high-excursion driver for maximized output and bandwidth.
●Beautifully extends a CIVA source with autoconnect.
●Clear low-frequency power.
●Can be incorporated into any venue decor.
●Beautifully extends a CIVA source with autoconnect.
●Clear low-frequency power.
●Can be incorporated into any venue decor.
