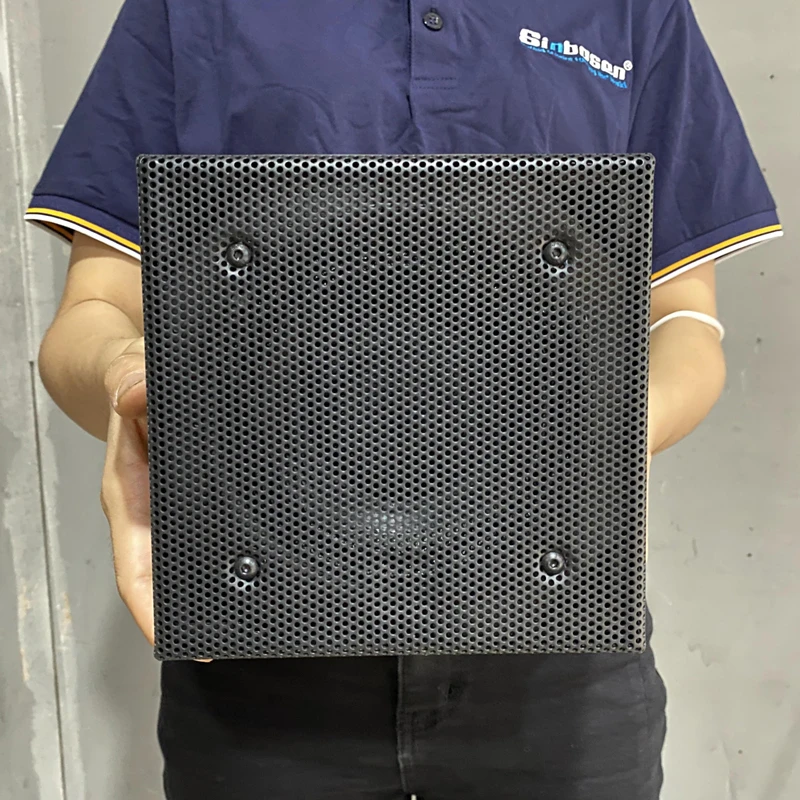

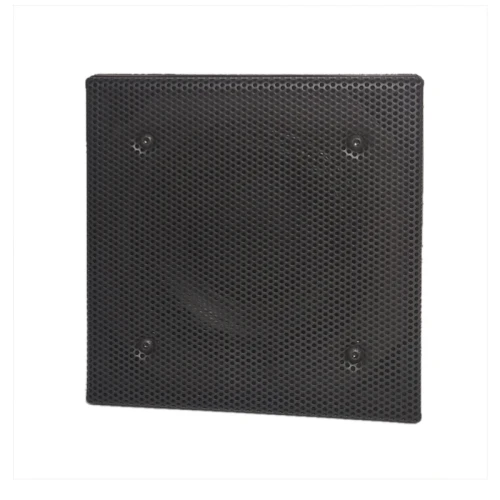

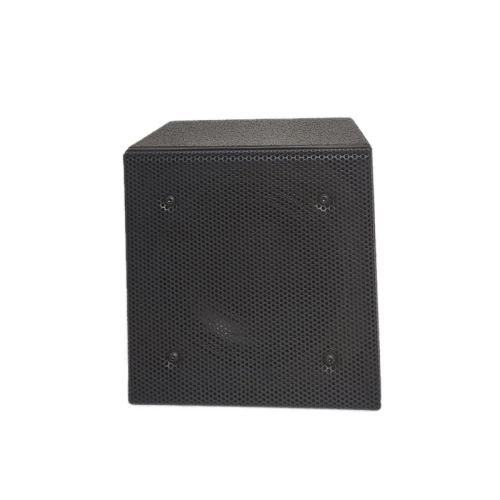

Mini 5 inch 2 way Passive Coaxial Speaker
- Model
- 5X
Item specifics
- Type
- 2-way passive
- Max SPL
- 121 dB
- Bandwidth
- 95 Hz- 20 KHz
- Transducers
- LF: 1 x 5";HF: 1 x 1"
- Weight
- 3.5 kg / 7.7 lb
- Directivity
- H: 110° ; V: 110°
Review
Description
2 way 5 inch portable speaker | |
Usable bandwidth (-10 dB) | 95 Hz – 20 kHz |
Maximum SPL1 | 121 dB |
Nominal directivity (-6 dB) | 110° axisymmetric |
Transducers | LF: 1 × 5″ cone driver |
HF: 1 × 1″ diaphragm compression driver | |
Acoustical load | Bass-reflex |
Nominal impedance | 16 Ω |

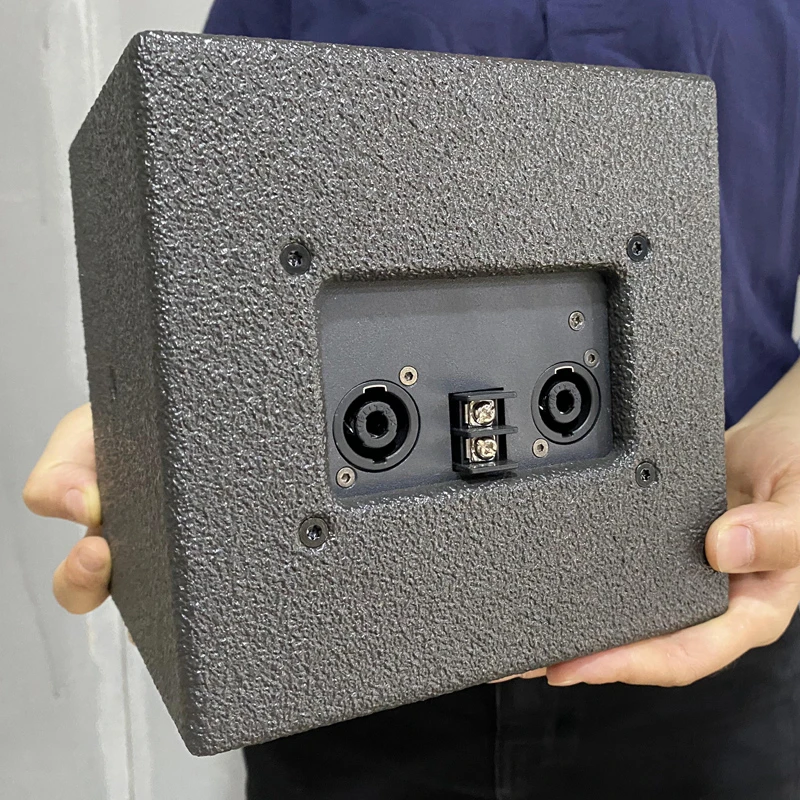

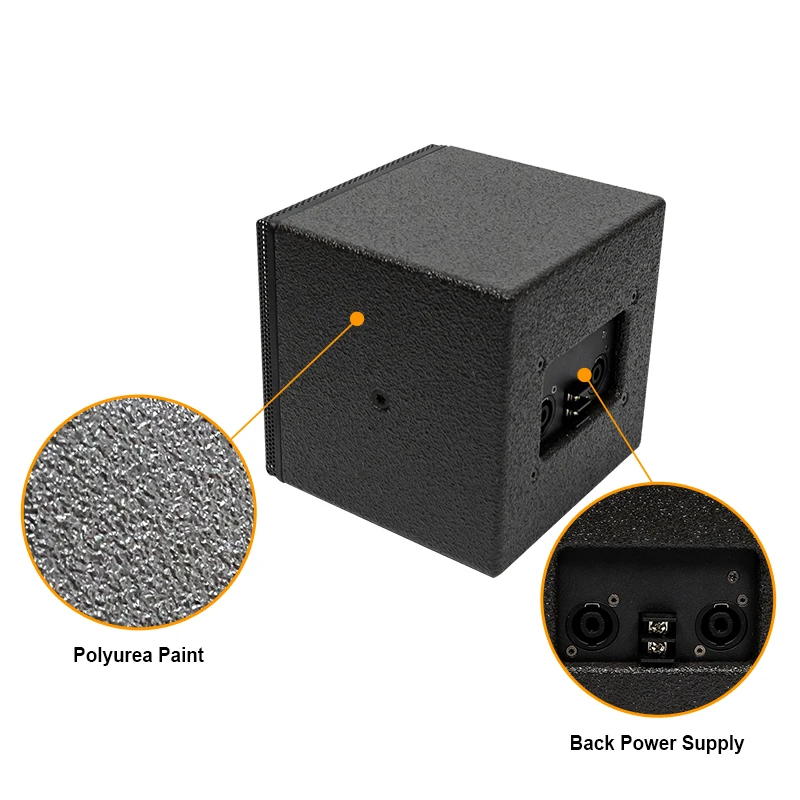

Connectors | IN: 1 × 4-point speakON |
LINK: 1 × 4-point speakON | |
IN/LINK: 2 × 2-point screw terminals | |
Rigging and handling | 2 inserts for Adjustable U-bracket |
1 × 3/8″ insert for microphone stand | |
Weight (net) | 3.5 kg / 7.7 lb |
Cabinet | First grade plywood |

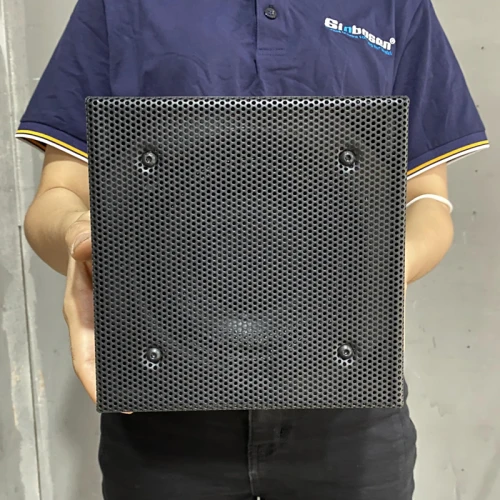

Front | Steel with anti-corrosion coating |
Finish | Dark grey brown |

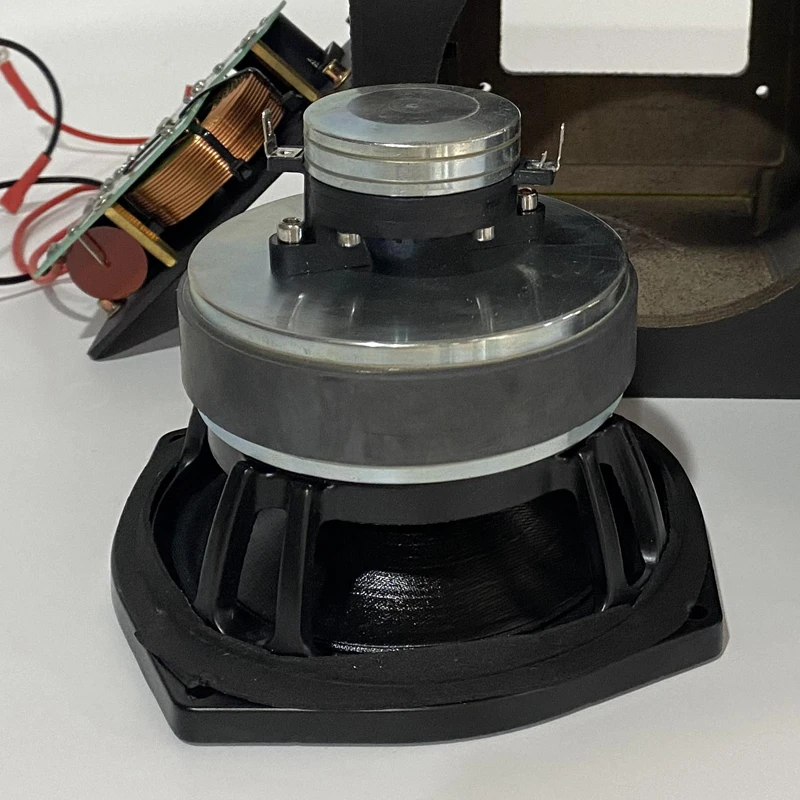

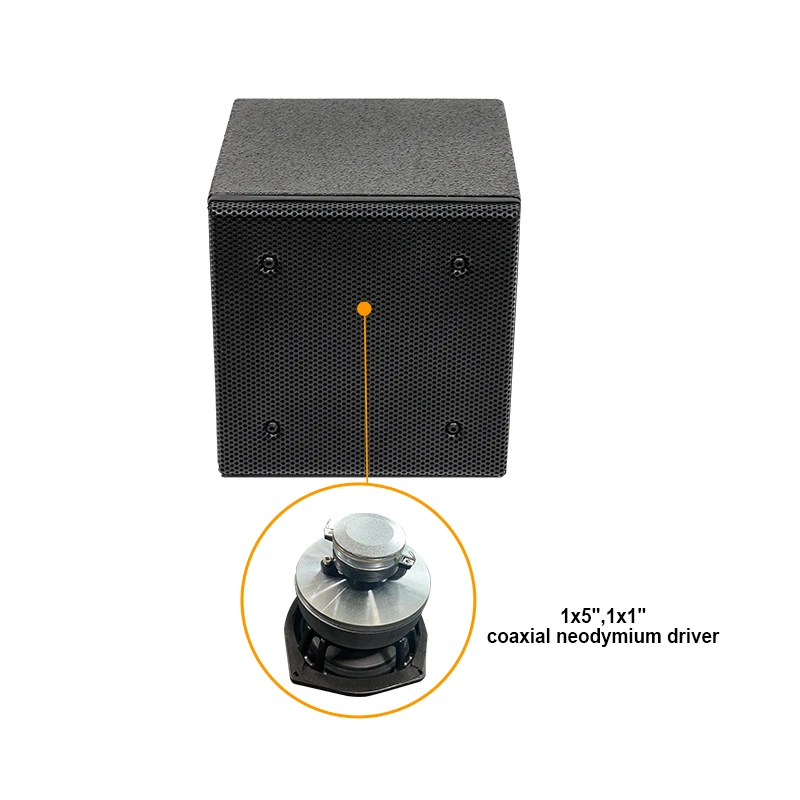

Based on a two way passive design with a nominal impedance of 16ohms, the 5X mini coaxial speaker houses a 1" diaphragm compression driver and a coaxial 5" low frequency driver (bass reflex adjustment).Use First graded plywood to ensure the best possible sound quality and mechanical integrity.
