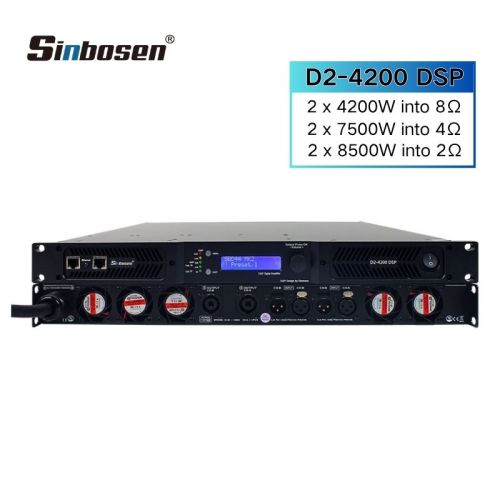

D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP 4200W @8ohms High Power Subwoofer Digital Amplifier
D2-4200 DSP

Item specifics

2 Channel
1U/Digital Amp/2 Ohms Stable
8Ω Stereo Power (RMS)
4,200W X 2CH
4Ω Stereo Power (RMS)
7,800W X 2CH
2Ω Stereo Power (RMS)
8,500W X 2CH
3 Years
2 Ohms Stable Amplifier
TypeDigital amplifier



DSP digital power amplifier
●2 Channel Class D DSP Digital power amplifier
●Mini 1U size,convenient for Touring Applications
●Suit for Stage Power Subwoofer speaker;
●Work Under 2Ω steadily !
●Precise and Reasonable circuit structure
DSP processor module and operating software are designed and produced in Germany, and Dante function is optional
Using Gan technology, high efficiency, low heat, reliable and durable, strong resistance to wear, clean tone, small distortion
●Bring supper reliable sound
●Bridge-mode operation
●Temperature protection;Over current protection;Short circuit protection built-in
EIAJ Test Standard,1 kHz, 1% THD8Ω/Stereo2 x 3000W2 x 3500W2 x 4200W4 x 2000W4 x 3000W
4Ω/Stereo2 x 5000W2 x 6300W2 x 7800W4 x 3400W4 x 5000W
2Ω/Stereo2 x 7140W2 x 7400W2 x 8500W4 x 4760W4 x 6500W
8Ω/Bridge1 x 10200W1 x 12500W1 x 15600W2 x 6800W2 x 10000W
4Ω/Bridge1 x 14280W1 x 14800W1 x 17000W2 x 9520W2 x 13000W
Alternating Current Power Supply
PowerPFC Power
Rated power demand100-240V±10%, 50/60Hz
Operation voltage90V-270V
Power correction factor cos(φ)>0.95 @ >500W
Standby47W and 0.8A
Maximum Output Voltage/Current185V/85A (370V in the BRIDGE MODE)
Power Comsumption230V (115V in the BRIDGE MODE)
Environment temperature0°-45C / 32′-113*F
Cooling systemTunnel through cooing system
Frequency Response20Hz - 20kHz (1W@8Ω,+05 dB)
Signal-to-Noise Ratio>110 dBA (20 Hz- 20 kHz A weighted)
Crosstalk>66 dB @ 1 kHz
Input Impedance10 kΩ balanced
Total Harmonic Distortion(THD)<0.5% from 1 W to full power (Typitcal value<0.05%)
Intermodulation Distortion(IMD)<0.5% from 1 W to full power (Typical value< 0.05%)
Damping Factor (8 ohms)>5000 @ 20-200 Hz
Slew Rate50V/μs @ 8Ω
Front Panel
Indicator LED/per channelOne PCS Green LED: the input signal of XLR ≥ -40dB;
Four pieces Green LED:
display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON
1 piece dual LED(Yellow and Red):
Protective state/Clip stste/Over heat/Over load
Power SwitchPress "I"-on; Press "O"-off.
Dust-proofTwo pieces dust-proof cotton,
it can take off to clean from the bottom of front pannel
Signal in-connection4 Channel: One balanced XLR(with lock)female per channel;
2 Channel One balanced XLR(with lock)female
and one balanced XLR male per channel.
Signal out-connectionOne SPEAKON per channel connect to loudspeakers
Power cordFited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm²,
and the card is 1.5 meters long.
Multiple-Functions SwitchTwo Sensitivity Switches. One Mode Switch and one Clip Switch.
Structure(The size and weight depend on different series and shipping demand )
Dimensions482 x 44 x 380mm³/482 x 44 x 470 mm³
Net weight10Kg/12kg
Packing size580 x 580 x 119mm³/615 x 615 x 119 mm³
Shipping weight12Kg/14Kg
Dimensions and Cooling system
The size is 437mm inside of the device(without the cover plate and front panel).The size is
around 472mm of the complete device,but a little bit different size in the different front
panel.Some series with different size that had not shown, please learn it in the parameter.

Tunnel through cooling system
Cold air comes in from the front panel of the equipment, forms a duct through the radiator
to take the heat away and out from the rear panel of the equipment.
The new D series digital amplifier also has the option to add DSP function, Our D series DSP amplifier used ALLDSP system from Gemany. It is suit for Windows,Mac and ios system. The application for iPad or iPhone can be downloaded and installed from the Apple Store. App name: ALLControl, Remind you it is Paid-for Software.

For the Remote Operation Software (Windows and Mac) and Manual, Please check Download link or contact us!
Note that for a Windows computer, there are separate applications for Windows 32 bit and 64 bit.
Attention: You cannot connect the unit to the network through the USB or Ethernet at the same time. You can only control the unit from one platform at the same time if you switch from one platform to another, you MUST shut down the control software at the previous platform first.
Local connectivity of the device to the control computer from a front-panel USB connector is also possible to download initial settings or as a fallback in case of network failure.
Unit Window: Main Panel
Software Page
Unit window shows the unit window from which all setup screens and options can be reached.Clicking the exit cross will close the software but leave the network Control program running.
Input Channel Settings Screen
Software Page
Clicking on an Input channel number in the Unit window will bring up the input channel settings screen see Figure. In this screen, individual input channels can be equalized and/or filtered.

Settings screen:
Filtering and EQ
Input channel transfer function curve
Screen expansion and legends
Input Gain, Mute
Delay, limiter, compressor
RMS compressor
set page
Screen expansion and legends
On the left-hand side of the graphical screen are four icons to help precise settings. The top Arrow icon expands the graphical screen to the size of the window.Clicking this icon again from the expanded screen expands it to the full display size. In either of the expanded settings, clicking the X-icon at the top left will collapse the graphical area to the default setting.

The T(ext) icon will place the frequency, Q and gain values of each EQ and filter setting in the graphical screen.

For very accurate settings of EQ or filtering you can click the Looking Glass icon.
set page
Delay, limiter, compressor
Settings for channel delay, limiter (-48 to +24 dBu) and Limiter release rate (10 to 100 dB/s) settings.Plus a button to enter the rms compressor menus.Channel delay can be set in a variety of distance or time units from the drop-down list.
set page
Compressor settings window
Clicking on the compressor button brings up the compressor menu.
In the compressor menu you can set the parameters of the rms compressor.You can set the threshold, attack, hold, and release time, the compression ratio and the make-up gain.Next to the controls is a VU meter that also displays the gain reduction (GR). Be sure to use the ‘Back’ button to return to the output menu.
Crossover Settings Window
Software Page
When you click X-over in the left unit window function list, most of the screen is dedicated to the controls and indicators for setting up the cross over filters as shown in Figure.

Settings screen:
Graphical control
Filter type
Mute, Phase Invert
Output Channel Settings Screen
Software Page
As shown in the picture above, faders are shown for each of the input channels. This will allow mixing each of the input signals to each individual Output channel. Even if Input channels are set to Linked in the Unit window, it is still possible here to mix individual Input channels to an Output channel in any desired ratio. Level setting are shown numerically below each fader. The available range is from -48 dB to 0 dB. As in other screen, double clicking a fader resets it to default.

A complete control screen is available for each Output channel. The graphical area reflects the Crossover settings for the channel in addition to any equalization settings set up in this screen, and is very similar to the available settings in the individual Input channel screens.The status of an element is always reflected in the blue on/off button next to each element.

Settings screen:
●Relationship between Input- and Output settings
●Output filtering and EQ
●Output channel transfer curve
●Delay, limiter, compressor
●RMS compressor
●Change / adjusting Values

More Dsp Details please download:
