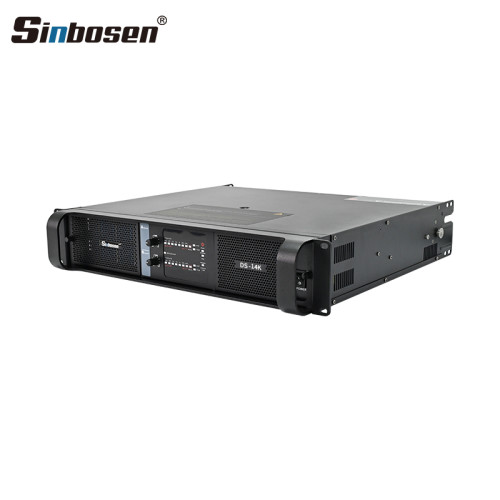

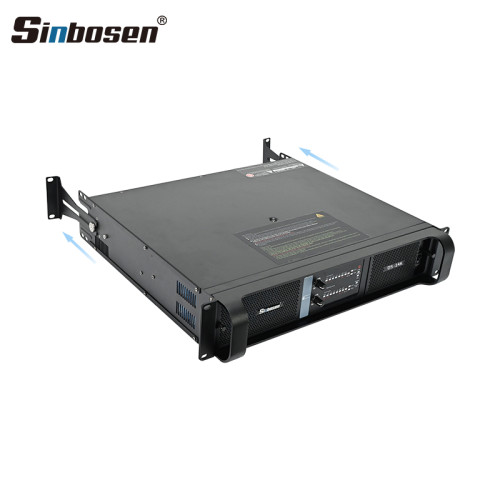

DS-14K 4 channel professional subwoofer power amplifier 2 channel 2000 watts
- Model
- DS-14K
Item specifics
- Channels
- 2 channel power amplifier
- Type
- Professional Power Amplifier
- 8Ω Output Power
- 2400WX2CH
- 4Ω Output Power
- 4400WX2CH
- Color
- Black, Blue
- Certification
- CE, ROHS, TUV
- Class
- TD
- Warranty
- 3 Years
- Capacitors
- 3300uf/200V
- Special service
- OEM service offered
- For
- Dual 18 inch subwoofer
- Application
- Karaoke/KTV/Cinema/Church/Stage/Concert/DJ
Review
Description
New upgraded DS-14K amplifier details
1. Use original "Siemens" capacitors.
- 12 3300uf/200V(2 more than the old version)
- 4pcs 2200uf/200V
2. High quality blue magnifying plate.
3. Use the original "Sanken" and "Fairchild" transistors.
4. Built-in 8 small fans, upgrade cooling system, energy saving and high efficiency
5. Use Swiss XLR brand - Neutrik.
Sinbosen high power 4400w 2 channel lab DS-14K amplifier for dual 18-inch bass
One DS-14K switch high power amplifier can use with 2 pcs Dual 18 inch speaker
DS-14K SPECIFICATIONS：
8 ohms Stereo Power: 2x2400W
4 ohms Stereo Power: 2x4400W
8 ohms Bridged Power: 8800W
4 ohms Bridged Power: 14000W
Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz: >70 dB
Input Connectors (per channel): 3-pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input
Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
