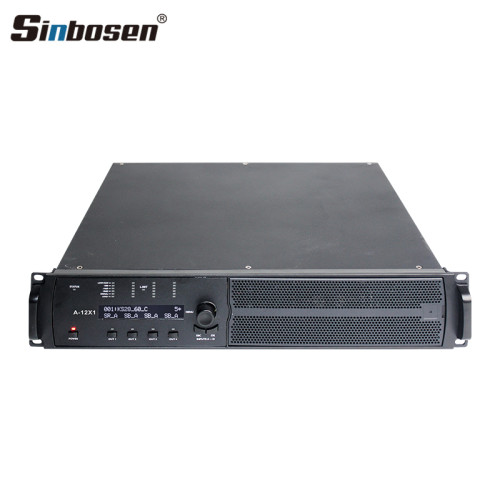

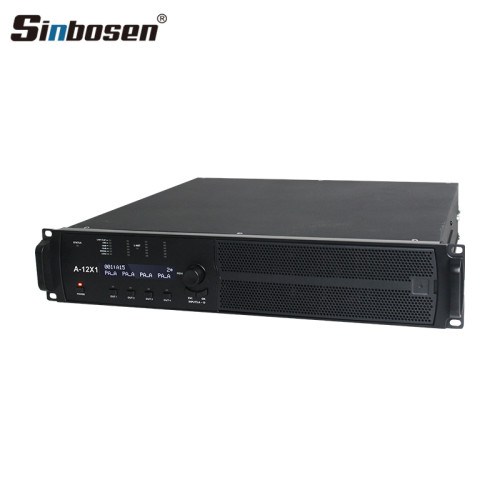

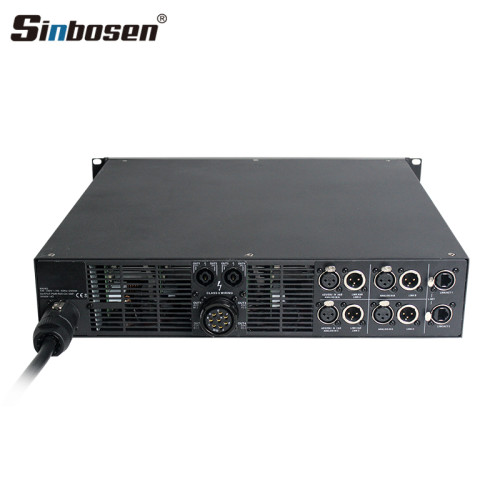

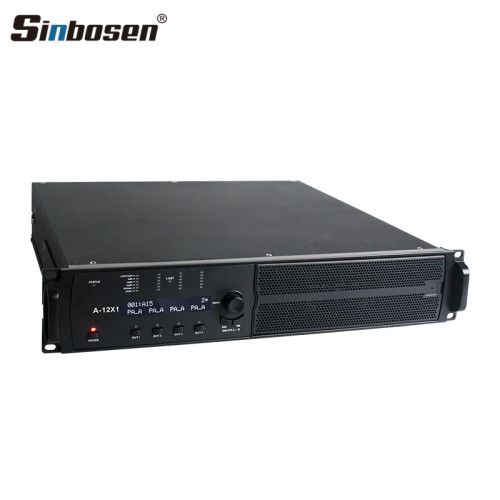

4 channel DSP software power amplifier
- Model
- LA12X
Item specifics
- COLOR
- BLACK
- Class
- DSP amplifier
- Warranty
- 3 Years
- Special service
- OEM service offered
- Certification
- CE ROHS
- Channels
- 4 channel
Review
Description
4 Channel power amplifier with DSP
8Ω Stereo Power: | 4x1800W |
4Ω Stereo Power: | 4x3000W |
2Ω Stereo Power: | 4x3200W |
THD (20Hz-20kHz for 1W): | <0.1% |
THD (1kHz and 1 dB below cipping; | <0.05% |
DSP Processor: | DFM |
Signal Noise Ration: | >120dB |
Frequency Response(+/-0. 1dB): | 10Hz-34kHz |
Damping cefficient: | >500 |
Impedance(balanced/unbalanced): | 20KΩ/10KΩ |
Gain (opliona): | 35dB |
Output socket: | Speakon Connectors(NEUTRIK) |
Input socket: | Combo XLR type,3pin(NEUTRIK) |
Power Requirement: | 100-240V-50Hz |
DSP CONTROL:
Connect the computer for DSP software operation, which is equivalent to the work of a processor.
DSP Function:In Level,Gate,Feedback,In Filter,In Limiter,In Delay,Matrix,Signal,Out Level,Out Filter,Out Limiter,Preset,Settings,Security etc.
DSP Function:In Level,Gate,Feedback,In Filter,In Limiter,In Delay,Matrix,Signal,Out Level,Out Filter,Out Limiter,Preset,Settings,Security etc.
This DSP has below feature:
4*1800W 8ohms
4*3000W 4ohms
DFM DSP control from Gemmany
Enthernet Control
100V-240V wide voltage power supply
High efficient cooling system
