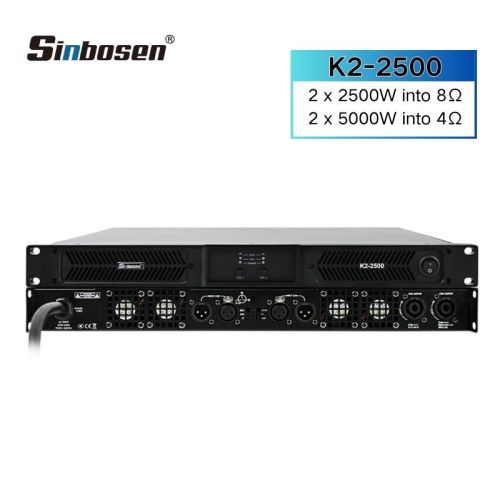

K2-2500 digital power amplifier 2 channel 2500w for line array speaker
K2-2500 digital power amplifier 2 channel 2500w for line array speaker
K2-2500 digital power amplifier 2 channel 2500w for line array speaker
K2-2500 digital power amplifier 2 channel 2500w for line array speaker
K2-2500 digital power amplifier 2 channel 2500w for line array speaker
K2-2500 digital power amplifier 2 channel 2500w for line array speaker
Model
K2-2500

Item specifics

DSP Processor
no
Channels
2 Channels Power Amplifier
Class
Class D Power Amplifier

Review

Description

Model
K2-2500
K2-2000
K2-1500
8Ω Stereo Power
2X2500W
2X2000W
2X1500W
4Ω Stereo Power
2X5000W
2X3350W
2X2450W
Rated Output Voltage (THD+N<1%, 1KHZ)
126.5V rms
Input Sensitivity (dB)
0.775V, 1V, 32dB
Total Harmonic Distortion (1/8 Rated Power, 1KHZ)
0.0001
Frequency Response (+0/-0.3dB, 1W/8Ω)
20Hz-20KHz
Signal-to-Noise Ratio
>106dB
Channel Separation
80dB
Amplifier Type
CLASS D
Power Supply Type
Switching Power Supply
Overall Efficiency
0.9
Input Connector
XLR Female
Output Connector
Speakon Connector
Input Impedance
20KΩ Balanced, 10KΩ Unbalanced
Level Adjustment
Front Panel Potentiometer, from Negative Infinity to 0dB
Cooling Method
Variable Speed Fan, Airflow from Front to Back
Amplifier Circuit Protection
Short Circuit, Overcurrent, DC Voltage, Overheat, Ultra-High Frequency Protection
Power Specification
AC 90-260V /50-60Hz
Chassis Dimensions (HWL)
44mmX483mmX429mm
Weight
9.2kg
Feature:
●2 Channel Class D Digital power amplifier
●Mini 1U size,convenient for Touring Applications
●Suit for line array and dual 18inch Subs.
●2 x 2500 Watts into 8 Ohms
●2 x 5000 Watts into 4 Ohms
●Precise and Reasonable circuit structure
●Bring supper reliable sound
●Temperature protection;Over current protection;Short circuit protection built-in
