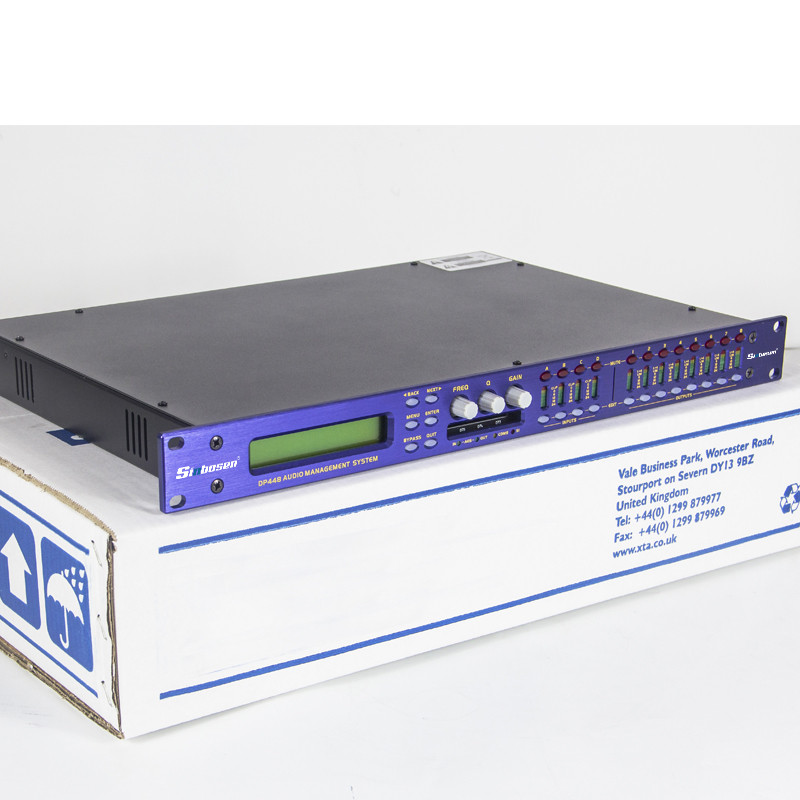

professional Digital audio processor 4 input 8 output

Suitable Home / DJ performance / Club / Studio / Karaoke / Conference / Theater

✔ 20HZ-20KHZ, 32-bit converters

✔ 360 degree 3voltage sensing  Rotary encoder, No turn on pops or "zipper" noise

✔ With 32Bit high-speed DSP processor to ensure high resolution of the signal dynamic range, and signal flow, and practical applications: Gain, FREO, Delay, , modulation, Limited, Delay.

✔ Delay time of each channel output channel can be adjusted independently, the maximum delay is 6.979mS, and the minimum step distance is 0.021mS.

✔ Suitable for the use of global voltage.The switch mode power supply, wide voltage input, from AC 95-250V/50-60Hz, wide range of use, speed, automatic adjustment, wide application, high stability.

✔ All settings can be saved in memory, and there is a shutdown automatically save settings, 20 user-defined storage mode.

Technical Specification

Number of Inputs: (4) Line inputs.(1) RTA Mic input

Type: Electronically balanced/RF filtered

Maximum Input Level: >+30dBu

CMRR: > 45dB

Number of Outputs: (8) Line Outputs

Type: Electronically balanced, RF filtered

Max Output Level: +22dBu

Dynamic Range: (line) >113 dB, A-weighted, >110 dB unweighted

THD+N: 0.003% typical at +4dBu, 1kHz, 0dB gain

Frequency response: 20Hz – 20kHz, +/- 0.5dB

Interchannel Crosstalk: >110dB, 120dB typical, (input-to-output: >100dB)

Operating Voltage: 220-240 VAC 50/60 Hz

Power Requirements: 25 W

Weight: 2.5 kg

Dimensions: 44mm(H)×146mm(D)×482mm(W)

Equalisation
Filters Parametrics – 8 Per input / 9 per output
Additional filters 28-band graphic on each input
Each parametric can be switched to Bandpass, Allpass, Notch, VariQ, Shelf and Elliptical response
Phase filtering – 2 degree steps on each input and output

Crossover Filters
Bessel / Butterworth 6/12/18/24/48dB per octave
and Linkwitz-Riley 12/24/48dB per octave

Limiter
Threshold +22dBu to -10dBu
Attack time 0.3 to 90 milliseconds
Release time 4, 8, 16 or 32 times the attack time

Clip/D-max Limiter
Look-ahead attack time, Fast, Medium or Slow release times

Connectors
Inputs 3 pin female XLR
Outputs 3 pin male XLR
RS485 In/Out XLRs
RS232 9 Pin (Female) D Connector

Power
3 pin IEC
Power 60VAC – 240VAC
Consumption < 40 watts

Net Weight 3.5kg
Size 44 x 482 x 305mm（excluding connectors）
