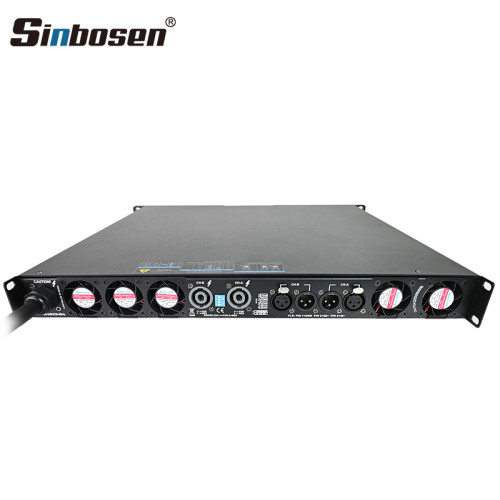

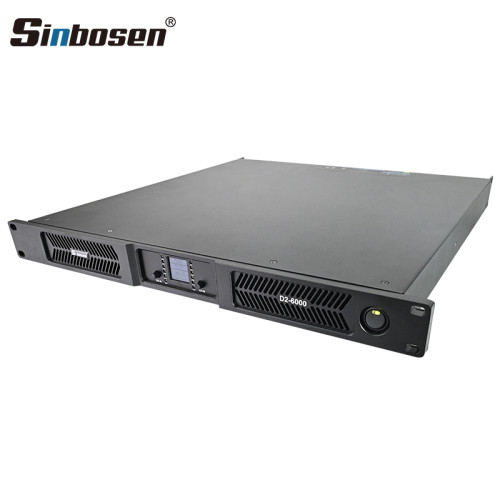

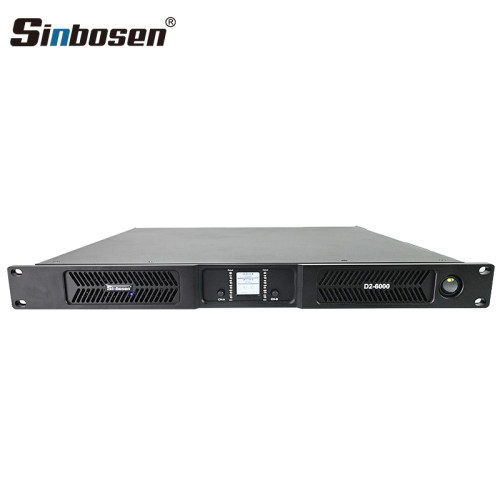

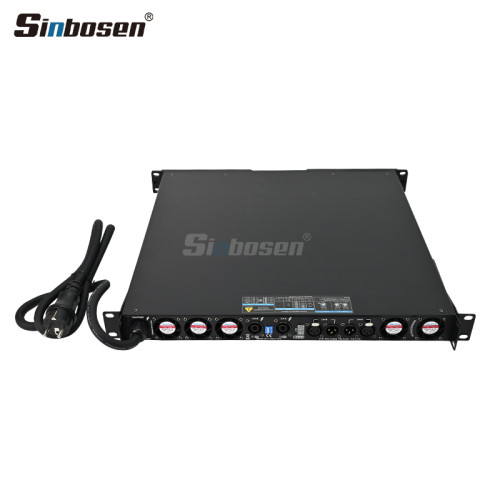

2 channel 6000w digital power amplifier with temperature display screen Sinbosen D2-6000
- Model
- D2-6000 temperature display screen
Item specifics
- Type
- Digital Amplifier
- Power
- 6000w x 2
- Screen
- temperature display
- Channel
- 2 channel
Review
Description
Specifications | ||
8Ω Stereo Powe | 2x6000W RMS | |
| 4Ω Stereo Powe | 2x10000W RMS | |
| 2Ω Stereo Powe | 2x10000W RMS | |
| Amplifier Type | 1U, Class D, 2-channel digital power amplifier | |
Operating Voltage | 90-260V 60Hz/50Hz | |
PFC | Yes, 1U digital 2-channel power amplifier with PFC | |
Maximum Output Voltage/Current | 185V/85A (370V in the BRIDGE MODE) | |
Cooling system | Tunnel through cooling system | |
Frequency Response | 20 Hz - 20 kHz | |
Signal-to-Noise Ratio | >110 dBA (20 Hz - 20 kHz, A weighted) | |
Crosstalk | >66 dB @1 kHz | |
Input Impedance | 10 kΩ balanced | |
Operating Temperature Range | 0°C-45°C (32°F-113°F) | |
Dimensions (W x D x H) | 482mm x 460mm x 44mm | |
Shipping weight | 16kg | |
Feature：
●1U Case, lightweight, high-definition LCDscreen, real-time temperature display
●High stability, high fidelity sound quality,sufficient power, strong and thick bass, clear and delicate high-frequency
●High efficiency, high power density, energy saving and environmental protection
●Power supply technology with active PFC and soft switching technology can save 40% of energy and reduce the size of power
cable cross section.
●90V-270V wide voltage, universal product,can adapt to the harsh power grid environment, for the power amplifier to
provide continuous surging power
●Stable and reliable 2Ω drive capacity, perfect for line array speaker system
●D-PWM audio modulation technology, recycling the useless power of the speaker, super high energy efficiency
