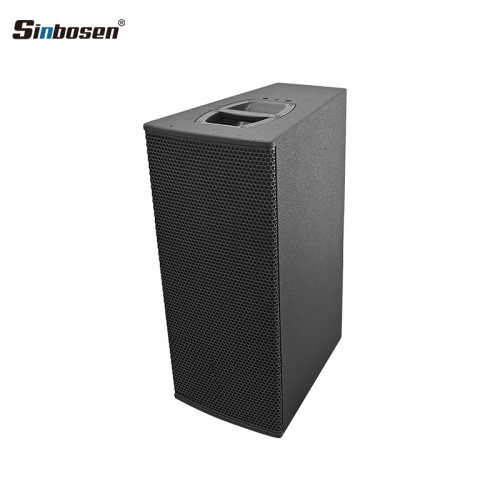

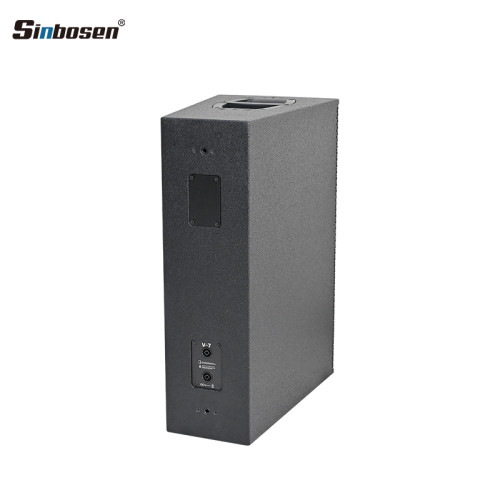

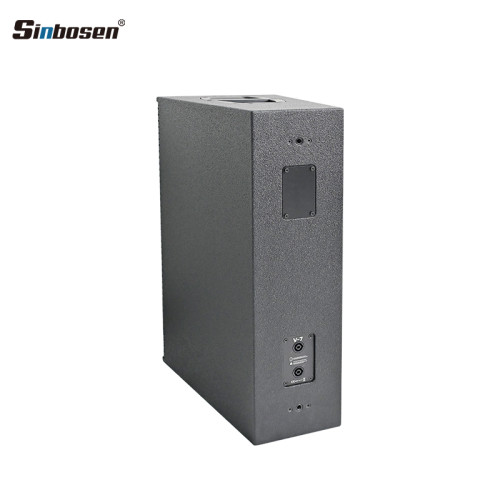

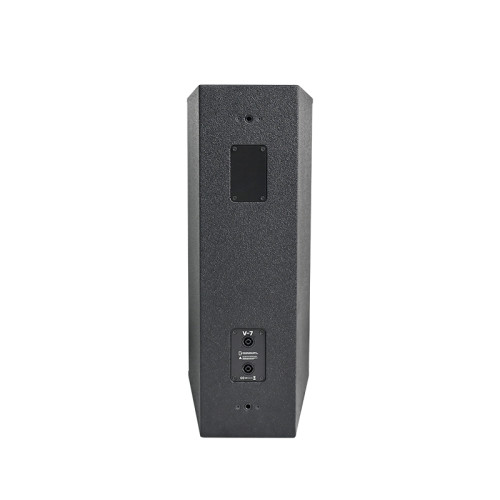

Dual 10" high performance 3-way passive point source loudspeaker
- Model
- V-7
Item specifics
- Maximum SPL
- 140 dB
- Nominal impedance
- 8 Ω
- Frequency response
- 59 Hz - 18 kHz
- Power handling capacity
- 500/2000 W
Review
Description
Product Parameters
| Max. sound pressure | 140 dB | ||||
Frequency response (-5 dB standard) | 59 Hz - 18 kHz | ||||
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz | ||||
| Cabinets per amplifier channel | 2 | ||||
Configuration | High performance 3-way passive point source loudspeaker | ||||
Nominal impedance | 8 Ω | ||||
Power handling capacity | 500/2000 W | ||||
Nominal dispersion angle | 75° x 40° | ||||
Components | 2 x 10" LF driver with neodymium magnet
1 x 8" MF driver with neodymium magnet
1 x 1.4” exit compression driver
Passive crossover network | ||||
Connections | 2 x NLT4 F/M
optional 2 x NL4 M | ||||
Dimensions (h x w x d) | 700 x 308 x 466 mm
27.5 x 12 x 18.3" | ||||
Weight | 33 kg
75 lb | ||||
This three-way passive point source speaker boasts a compact size yet delivers a peak sound pressure level of 140 dB, while its 75° x 40° rotatable horn ensures constant directivity. Multi-point mounting and a polyurea-coated marine-grade plywood enclosure allow for quick and reliable deployment in any location.
Feature：
●Three-way passive system with 2×10" LF, 8" MF, and 1.4" HF drivers
●High SPL capability: Maximum sound pressure level of 140 dB
●Plywood enclosure with polyurea coating and steel mesh grille, designed for touring and outdoor fixed installations
●Versatile rigging options including flying, stacking, and pole-mounting for flexible venue adaptation
