The overseas warehouse will soon receive the new 5X and 08X stage monitoring speakers
- Share
- Issue Time
- Oct 30,2025
Summary
The overseas warehouse will soon receive the new 5X and 08X stage monitoring speakers.
The 5XT is an ultra-compact coaxial point source speaker, renowned for its small cubic design (only 165mm on each side) and exceptional acoustic performance. It integrates a 5-inch low-frequency driver and a 1-inch high-frequency compression driver, providing 110° axisymmetric coverage with a smooth and precise frequency response. It is ideal for distributed voice reinforcement, effects systems, or as a detailed fill speaker in large venues.
The 08X is a powerful 8-inch coaxial monitor speaker. It features an 8-inch low-frequency driver and a 1.5-inch high-frequency compression driver, delivering a sound pressure level of up to 129 dB and deep bass down to 60 Hz. Its 100° coaxial coverage provides a precise and consistent listening area. The wedge-shaped cabinet makes it suitable as a main speaker in small venues or as an excellent stage side filler. It perfectly combines portability, high output, and the precise sound imaging of coaxial technology, making it an ideal choice for stage monitoring.
5X | 08X | ||||||
| Usable bandwidth (-10 dB) | 95 Hz – 20 KHz | 60 Hz – 20 kHz | |||||
| Maximum SPL | 121 dB | 129 dB | |||||
| Nominal directivity (-6 dB) | 110° axisymmetric | 100° axisymmetric | |||||
Transducers | LF: 1 × 5″ cone driver | LF: 1 × 8″ cone driver | |||||
HF: 1 × 1″ diaphragm compression driver | HF: 1 × 1.5″ diaphragm compression driver, neodymium | ||||||
Acoustical load | Bass-reflex | LF: bass-reflex, L-Vents | |||||
HF: conical waveguide | |||||||
Nominal impedance | 16 Ω | 8 Ω | |||||
Connectors | IN: 1 × 4-point speakON | N: 1 × 4-point speakON | |||||
LINK: 1 × 4-point speakON | |||||||
LINK: 1 × 4-point speakON | |||||||
IN/LINK: 2 × 2-point screw terminals | |||||||
Rigging and handling | 2 inserts for Adjustable U-bracket | 1 handle | |||||
DIN580-compatible M8 threaded insert | |||||||
1 × 3/8″ insert for microphone stand | 4 M10 threaded inserts | ||||||
135 mm pole socket | |||||||
Weight (net) | 3.5 kg / 7.7 lb | 12 kg / 26.5 lb | |||||
Cabinet | First grade plywood | Premium grade Baltic beech and birch plywood | |||||
Front | Steel with anti-corrosion coating | Coated steel grill | |||||
Acoustically neutral 3D fabric | |||||||

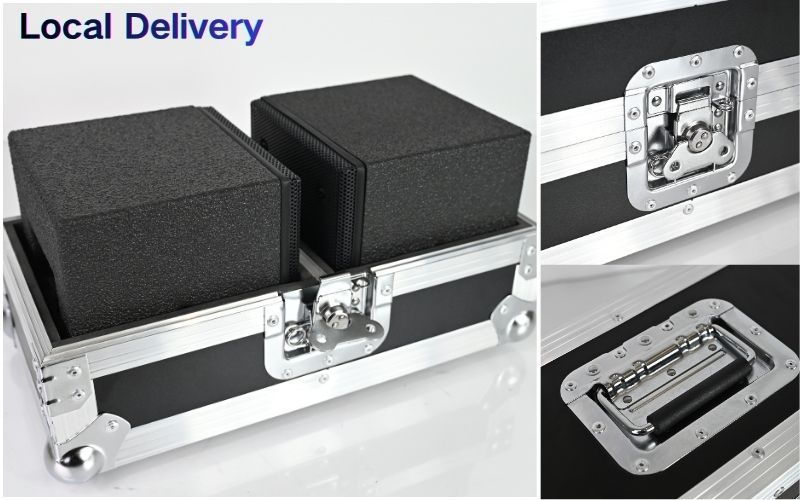

Sinbosen is about to ship a batch of 5X and 08X speaker samples to its European warehouse, which will arrive in 1-2 months. Due to limited quantities in overseas warehouses, you can purchase sample units of these two speakers locally for sound and effect testing, and then make a bulk purchase in China.
Advantages of Overseas Warehouses:
Local Shipping: Orders are shipped directly from warehouses in the local country, ensuring fast delivery to customers within 1-3 days.
Reduced Costs: Goods typically complete customs clearance and pay relevant taxes during the initial shipping phase to the overseas warehouse. Customers do not need to pay any unexpected customs duties, VAT, or customs clearance fees upon receipt.
Transparent and Reliable Logistics Tracking: Local delivery offers highly predictable logistics status, allowing customers to clearly know when their packages will arrive.
Using neodymium magnetic horn and first class imported birch plywood, showing a perfect monitoring effect.
Mini speaker use first graded plywood to ensure the best possible sound quality and mechanical integrity.

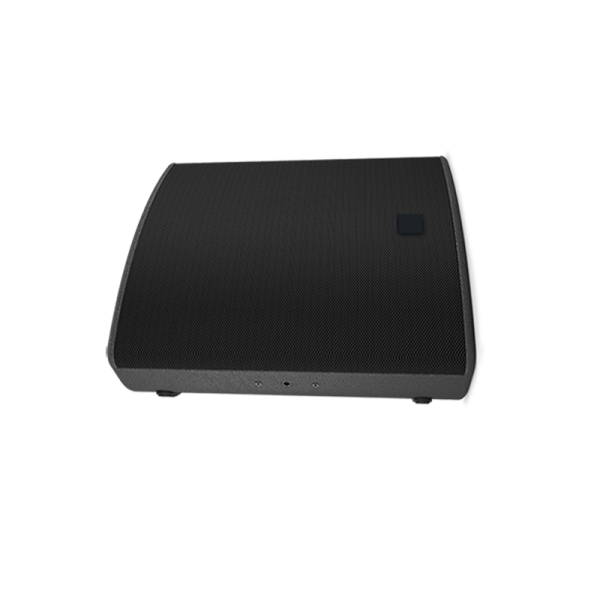

12 "coaxial speaker driver, Russian birch plywood housing, polyurea paint, ideal for short sound reinforcement.
