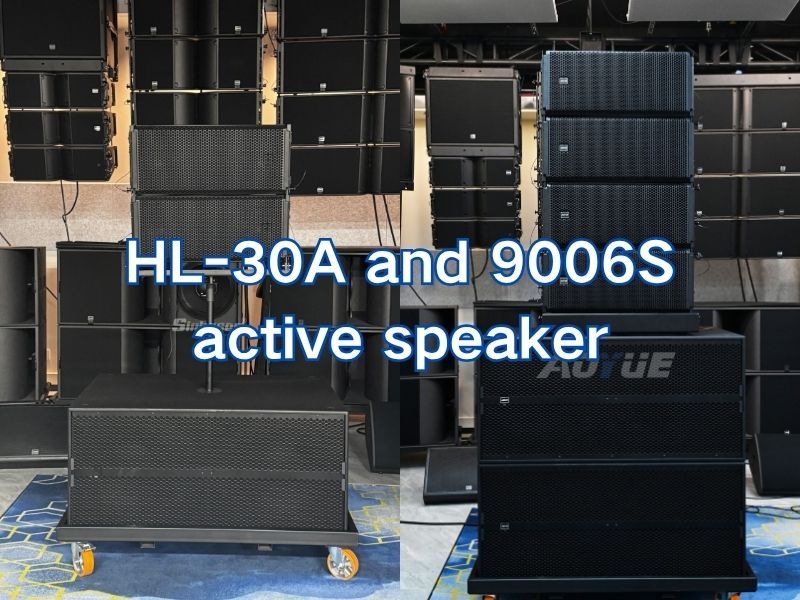

When setting up professional sound reinforcement systems on-site, the installation method often determines both efficiency and performance outcomes. For the combination of the H-30A active line array speaker and the SUB A-9006S dual-18" active subwoofer, Sinbosen offers two physical configuration options: pole-mounted and stacked. Each approach—distinguished by its specific characteristics regarding rapid deployment, sound field coverage, structural stability, and visual presentation—provides a comprehensive audio solution suitable for everything from small-to-medium events to large-scale performances.

H-30A Active Line Array Speaker: Technical Highlights

Dual 10-inch Neodymium Woofers: Featuring a 2.5-inch voice coil design, the neodymium magnets significantly reduce driver weight while increasing magnetic flux density. Paired with a 2200W peak Class-D amplifier, the system delivers a wide frequency response (50Hz–20kHz) and a maximum SPL of 137dB, easily covering venues with capacities of 500 to 2,000 people.

1.4-inch Titanium-Diaphragm Compression Driver: Coupled with a precision-cast 100°×15° constant-directivity waveguide, it provides smooth, detailed high-frequency extension, maintaining clear vocal intelligibility and instrumental definition even over long-throw distances.

32-bit/48kHz DSP Processing: Incorporates FiRPHASE zero-phase filtering technology to ensure time alignment and phase coherence across the array, eliminating sound field voids caused by multi-driver interference.

RDNet Networked Remote Monitoring: Enables real-time parameter adjustment, temperature monitoring, and fault alerts via Ethernet, allowing sound engineers to manage the entire system precisely from the control console.

Lightweight Design: Weighing only 25kg per unit and featuring ergonomic handles, the system allows for single-person transport and rigging, significantly reducing labor costs.

9006S Dual 18-inch Active Subwoofer: Technical Highlights

Dual 18-inch Neodymium Woofers: Featuring 4-inch voice coils and a 7200W peak (3600W RMS) Class-D amplifier, this unit delivers deep, punchy, and responsive low-end performance with a frequency response extending down to 30Hz and a maximum SPL of 142dB.

Cardioid/Omnidirectional Mode Switching: Built-in DSP supports a cardioid preset, effectively suppressing low-frequency energy buildup behind the stage, minimizing the risk of microphone feedback, and enhancing stage monitor clarity.

Stacking and Flying Compatibility: Standard mounting points on the top and bottom allow for both ground-stacked subwoofer arrays and flown configurations, accommodating the constraints of complex venues.

Rugged Construction: Built with an 18mm birch plywood enclosure and finished with a durable polyurea coating, the unit features a metal grille and dust-resistant mesh, ensuring reliability against the rigors of touring and harsh outdoor weather conditions.

Option 1: Pole-Mounted Configuration — Flexible Adjustment, Rapid Response

This setup utilizes dedicated poles to mount two H-30A units onto one or two 9006S subwoofers. A mobile platform equipped with heavy-duty swivel casters at the base transforms the system into a self-contained, fully mobile sound reinforcement module.

Key Features:

Adjustable Height: The pole design allows for flexible adjustment of the line array's height and tilt angle based on sightlines and coverage requirements, ensuring precise sound projection toward the audience.

Easy Mobility: The heavy-duty caster platform enables a single person to easily move the entire assembly, significantly reducing setup and teardown times.

Stable and Self-Contained: The rigid pole connection between the subwoofer and line array ensures structural stability, making it suitable for temporary venues with uneven ground.

Plug-and-Play: No additional flying hardware or complex rigging is required; the system is ready for operation as soon as it is powered up.

Ideal Applications: Hotel banquet halls, corporate events, roadshows, small-to-medium outdoor stages, temporary conference sound reinforcement, and other scenarios requiring frequent relocation or rapid setup.

Option 2: Stacked Configuration — Compact Array, Integrated Presentation

This stacked configuration involves placing four H-30A line array speakers directly atop two 9006S subwoofer cabinets, creating an integrated vertical array system without the need for additional support hardware.

Key Features:

Compact Design: Direct coupling between the line array and subwoofer cabinets lowers the overall center of gravity and creates a sleek, professional appearance—ideal for fixed installations or long-term residencies.

Coherent Sound Image: With the line array positioned directly against the subwoofer, the acoustic centers for full-range and low-frequency sound are closely aligned; this effectively minimizes phase interference and enhances sound image cohesion.

High Scalability: The number of line array units can be adjusted (2, 4, or more) based on venue size, and subwoofers can be stacked horizontally or vertically, allowing for the creation of systems suitable for everything from small-to-medium venues to large-scale performances.

Robust and Reliable: Cabinets are locked together using dedicated connectors, offering excellent wind and vibration resistance to meet the stability demands of long, continuous performances.

Applications: Professional settings requiring high system stability and sound image coherence, such as theaters, fixed installations in live music venues, large festival stages, stadium events, and touring concerts.

Comparison of the two combined options

Comparison Dimension	Pole-Mounted	Stacked
Mounting Method	Independent speaker pole + rolling dolly	Direct cabinet stacking with locking mechanism
Flexibility	Height/angle adjustable, movable	Modular scalability, rock-solid once locked
Setup Speed	Ultra-fast, roll into position instantly	Fast, requires inter-cabinet locking
Sonic Image Coherence	Good, optimizable via adjustment	Excellent, naturally unified sound source height
Portability	Heavy-duty casters, single-person push	Requires handling equipment or forklift
Visual Presentation	Clean and neat, elevated off ground	Integrated array, professional and impactful
Suitable Venues	Temporary events, banquets, road shows	Fixed installations, large stages, touring

Whether the goal is a flexible, efficient ground-stacked setup or a solid, integrated array configuration, the combination of the H-30A and 9006S offers versatile physical assembly options. This allows sound engineers to rapidly select the most suitable setup based on venue conditions and the scale of the performance, ensuring a professional-grade audio experience for every show.
