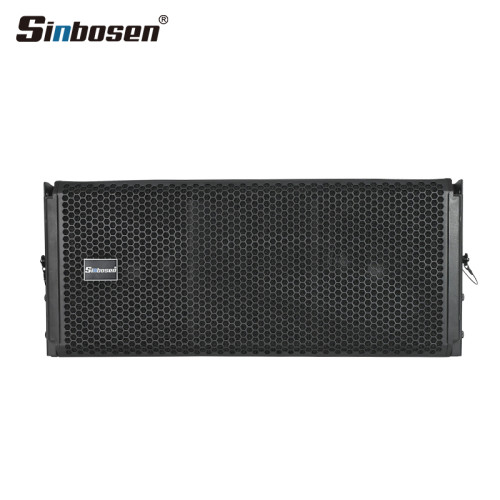

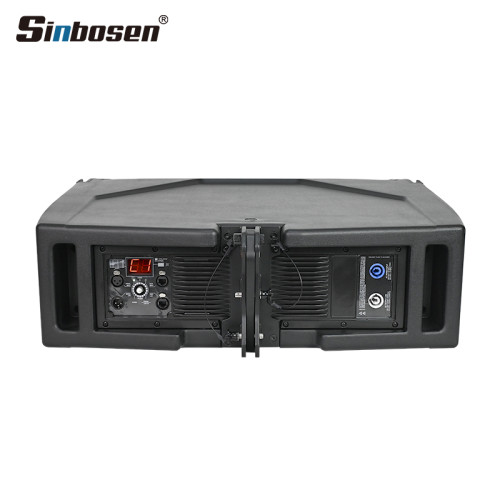

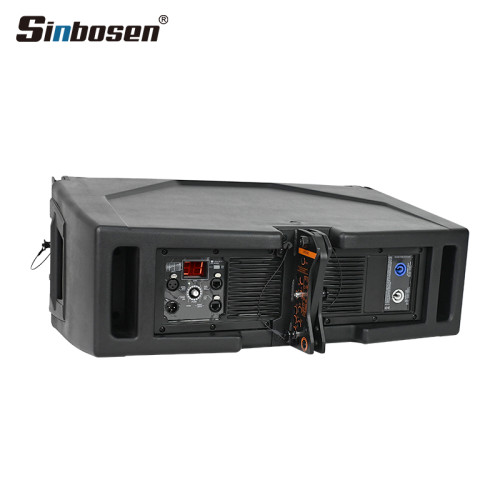

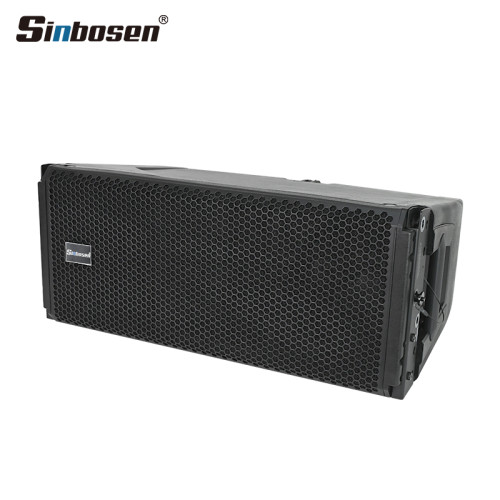

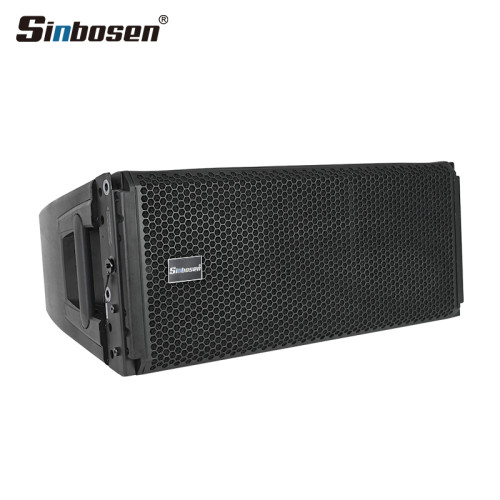

H-30A Neodymium Driver Dual 10-inch active 2-way Line Array Speaker module
- Model
- H-30D
Item specifics
- Frequency range
- 50 Hz – 20kHz
- Impedance
- 8 Ohms LF 8 Ohms HF
- max SPL
- 137 dB
Review
Description
Product Specification
| Drivers | 2 x 10'' neo, 1 x 1.4'' neo | ||||
| Frequency range | 50Hz-20kHz | ||||
| Power capacity programm / peak | 1100W RMS 2200W peak | ||||
| Impedance | 8 Ohms LF / 8 Ohms HF | ||||
Horizontal coverage angle | 100 degrees | ||||
Vertical coverage angle | 15 degrees | ||||
SPLmax / 1 m / peak | 137 dB | ||||

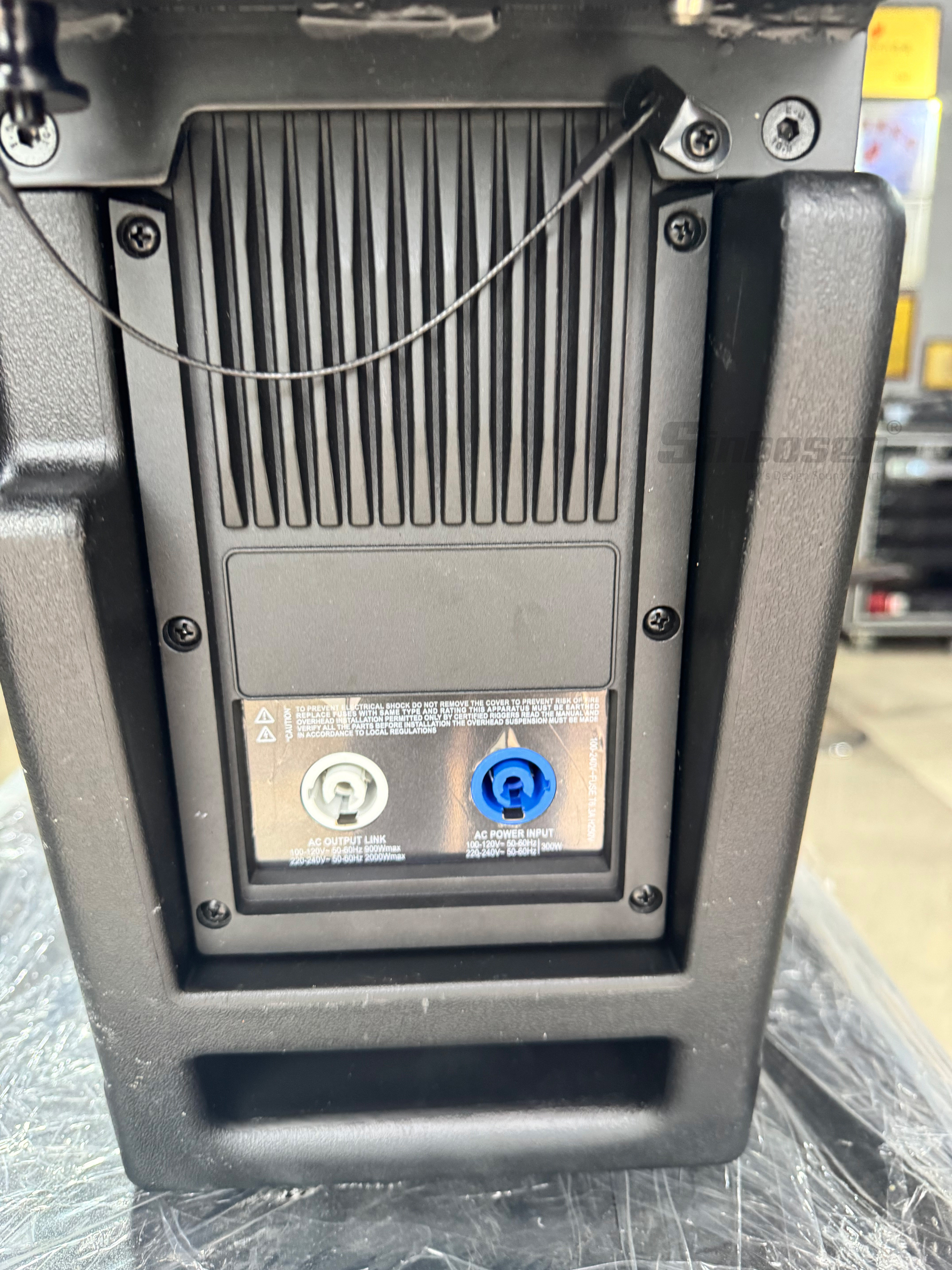

Active module | 2CH class-D digital amplifier | ||||

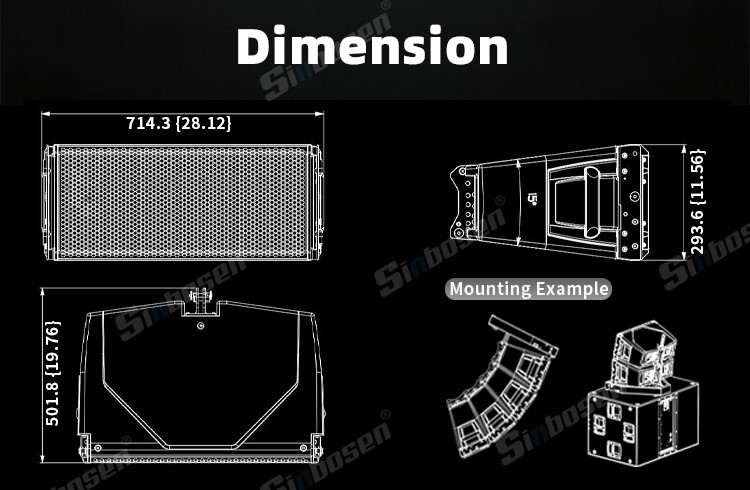

Dimensions (h x w x d) | 705*502*293mm | ||||
Weight | 45kg | ||||
Cabinet | plastic | ||||
Bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver.Built-in 2200-watt Class d amplifier offers excellent playback clarity and a maximum SPL of 137 decibels. Low weight for easy handling and flying.
Product Feature：

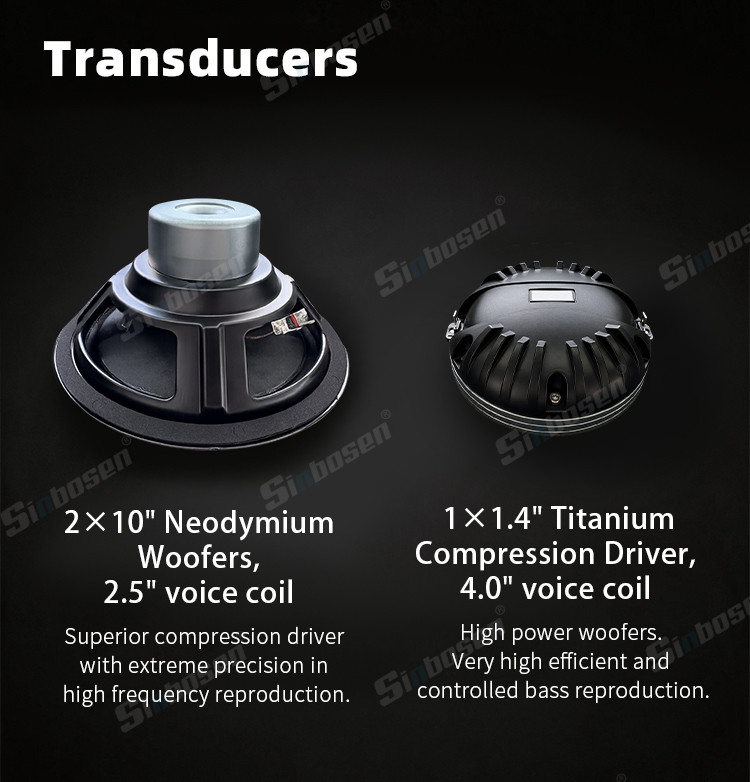

● 2 x 10" Neodymium Woofers, 2.5" voice coil

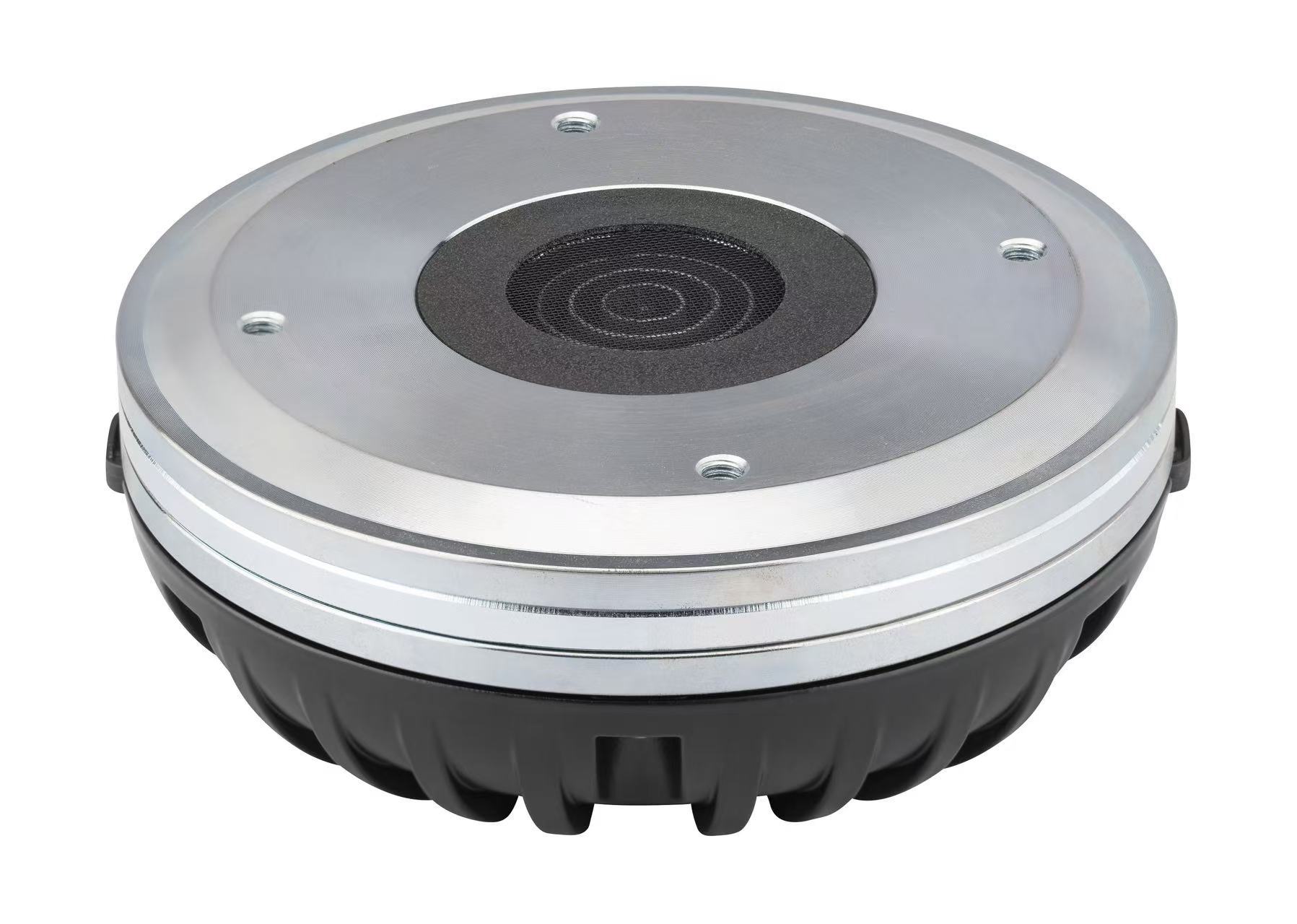

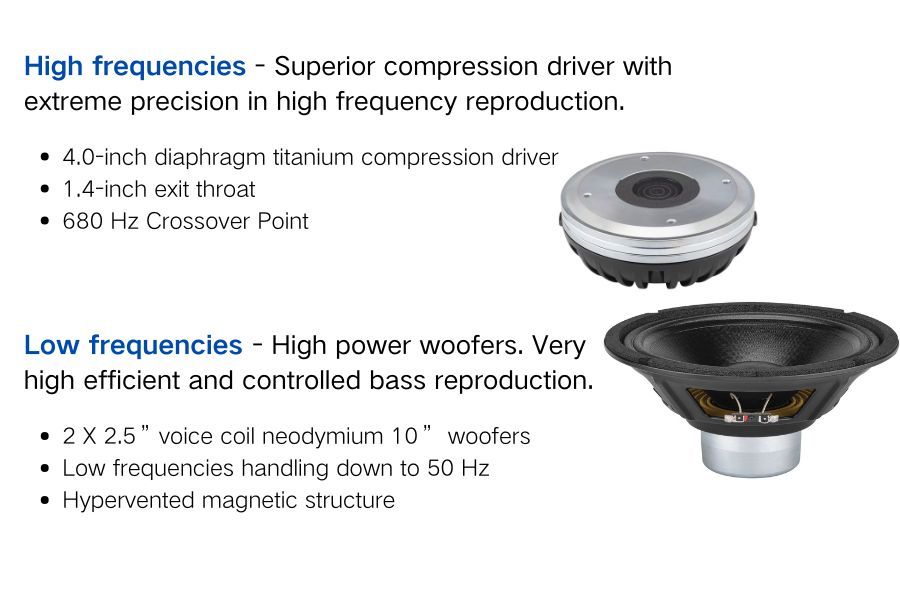

● High frequencies - Superior compression driver with extreme precision in high frequency reproduction.● Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.

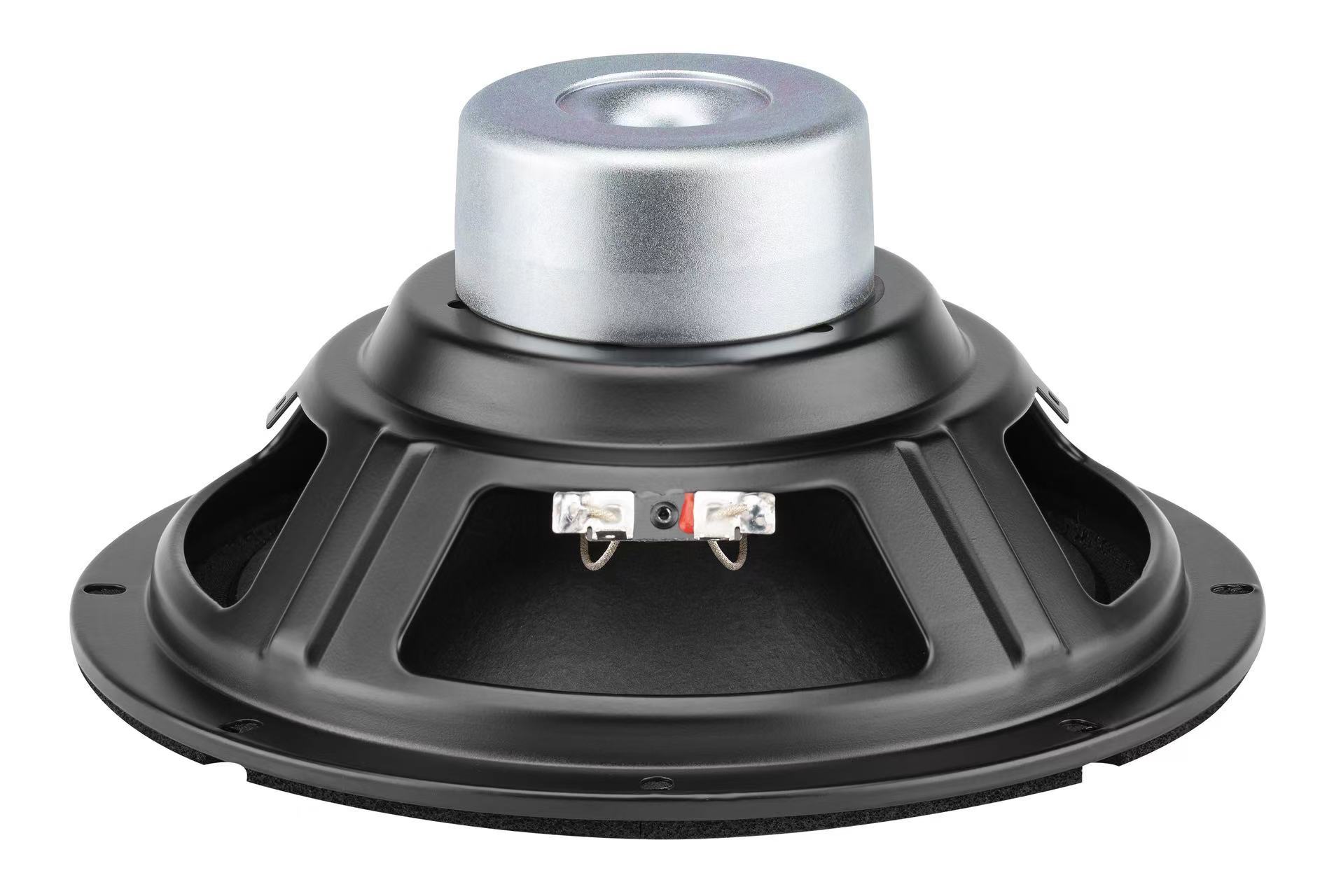

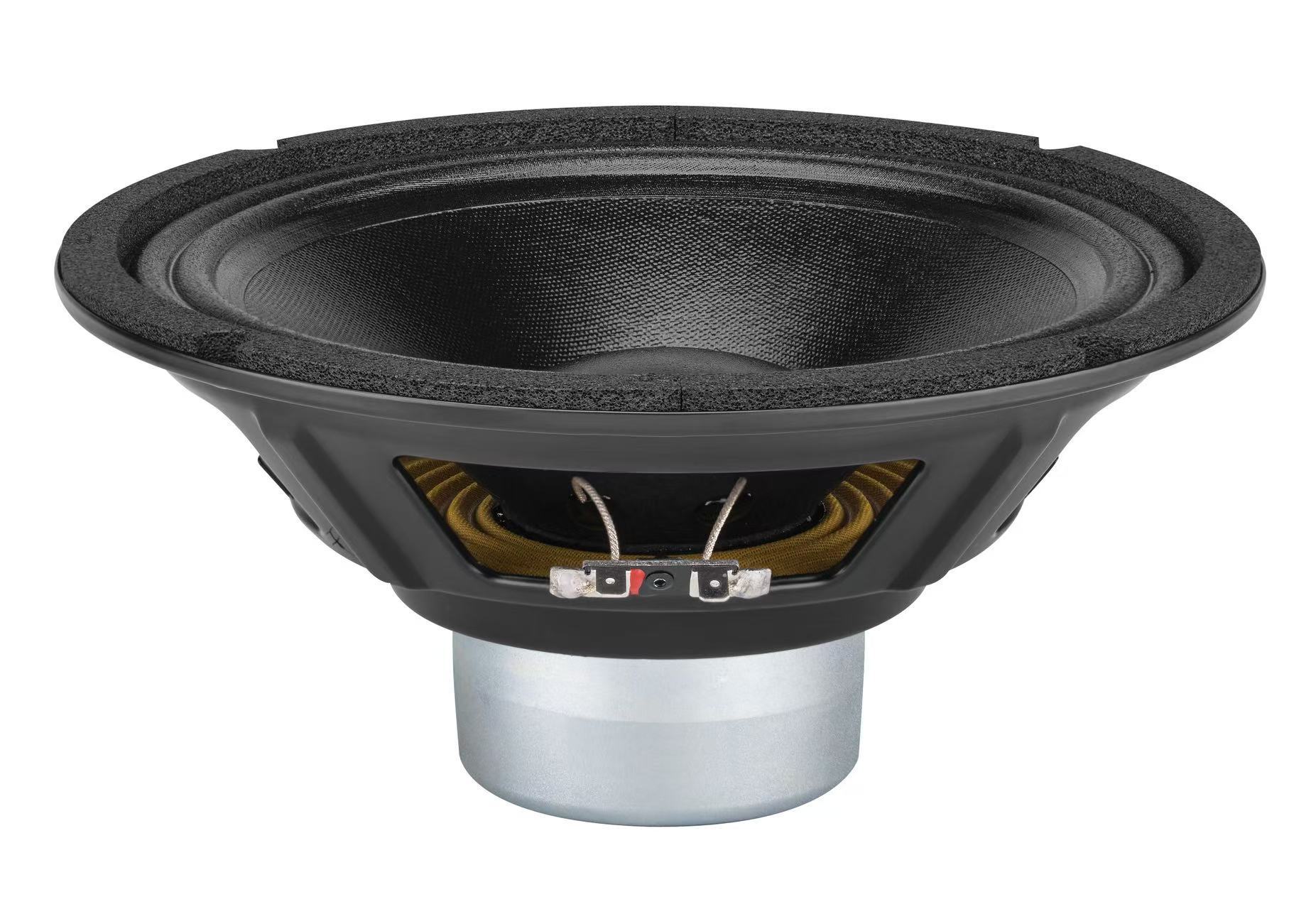

2 X 2.5”voice coil neodymium 10” woofers
Low frequencies handling down to 50 Hz
Water resistant fibre doped cone
Hypervented magnetic structure
● Powerful class D amplifiers
