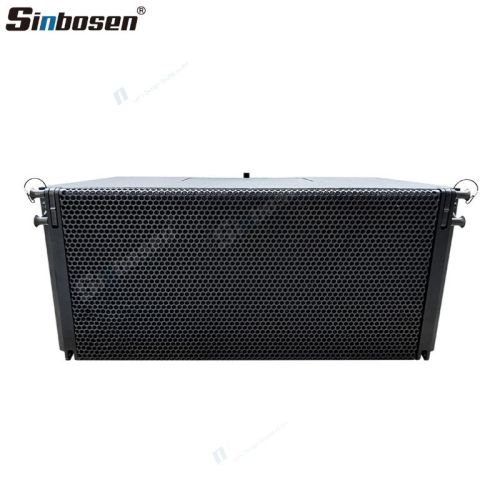

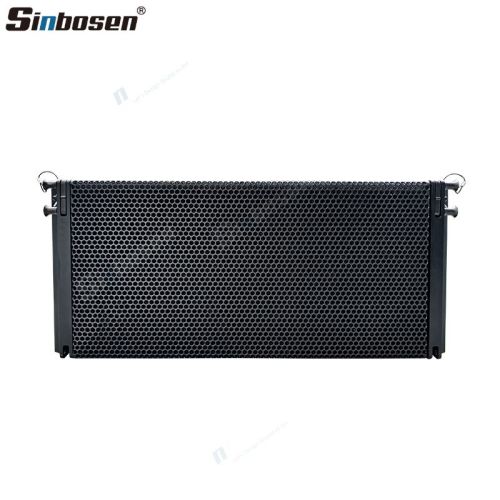

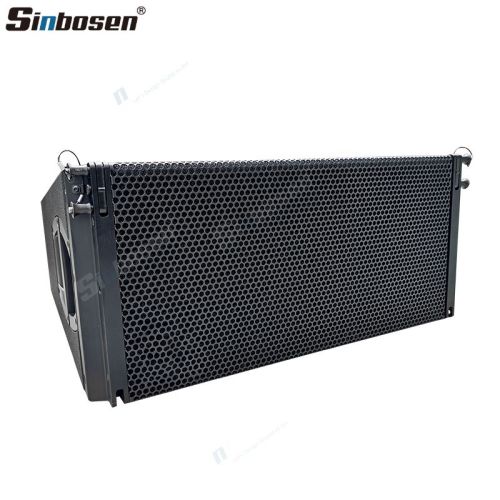

Dual 10" neodymium speaker high performance 3-way passive line array speakers
- Model
- VT-08
Item specifics
- Dispersion
- 80°
- Components
- 2 x 10"/1 x 8"/2 x 1.4"
- SPLmax
- 142 dB
- 142 dB
- 34 kg / 75 lb
Review
Description
| Frequency response (-5 dB standard) | 67 Hz - 18 kHz | ||||
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz
| ||||
| Configuration | High performance 3-way passive line array loudspeaker | ||||
| Nominal impedance | 8 Ω | ||||
Power handling capacity | 500/2000 W | ||||
Nominal dispersion angle (horizontal) | 80°² | ||||
Splay angle settings | 0° - 14° (1° increment) | ||||
Components | 2 x 10" driver | ||||
1 x 8" driver | |||||
2 x 1.4" exit compression driver | |||||
passive crossover network | |||||
Connections | 2 x NLT4 F/M
optional 2 x NL4 | ||||

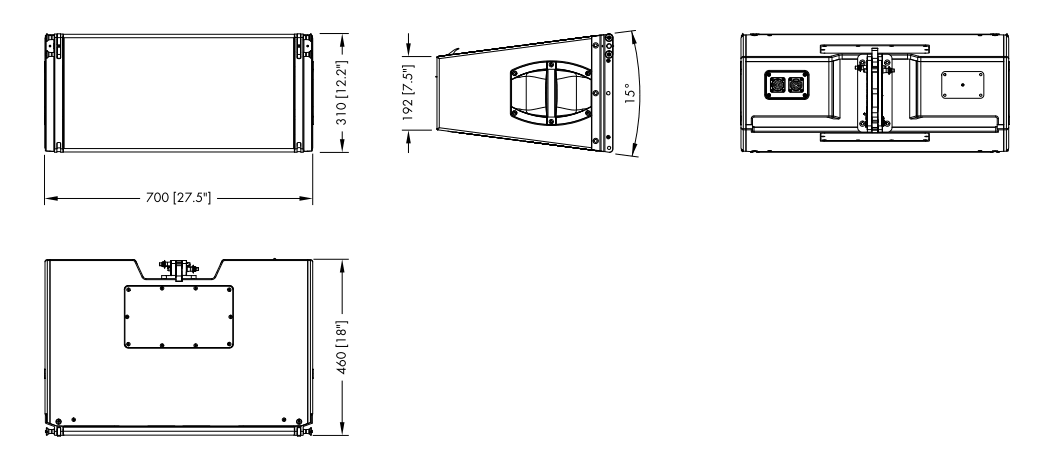

Dimensions (h x w x d) | 310 x 700 x 460 mm
12.2 x 27.5 x 18" | ||||
Weight | 34 kg
75 lb | ||||
Overview：

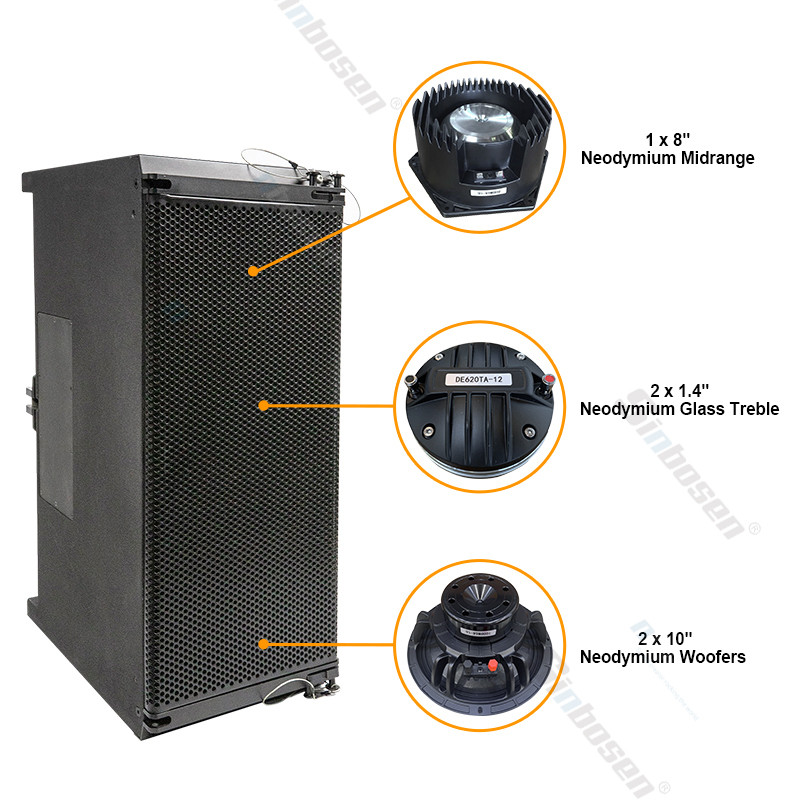

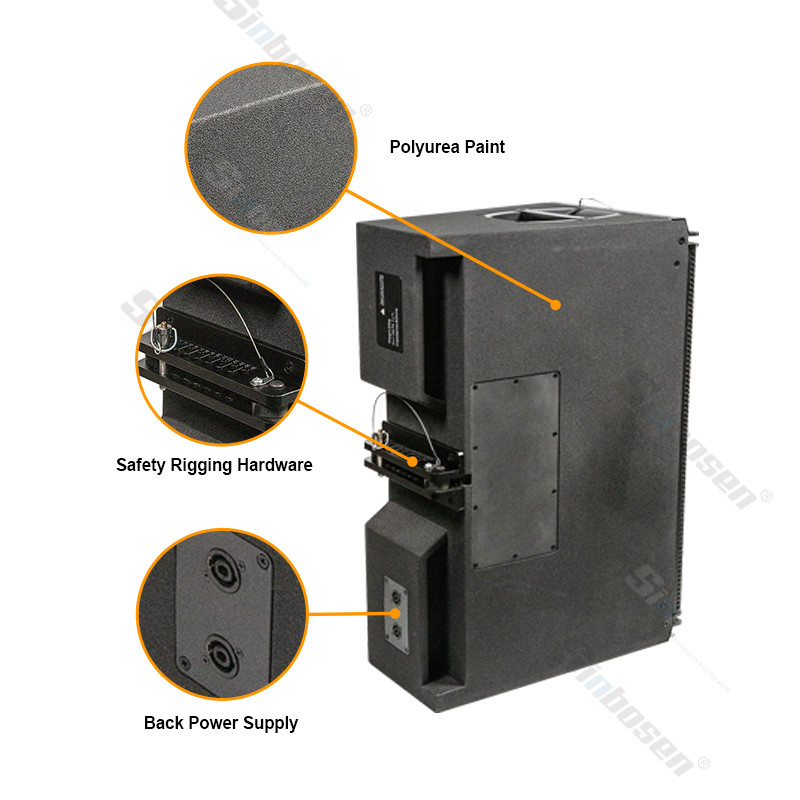

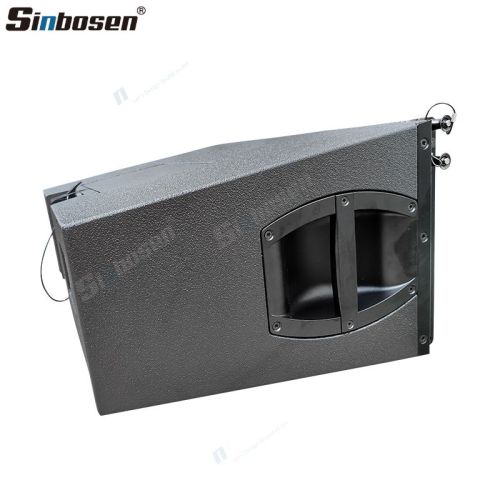

This is a three-way passive loudspeaker featuring two 10-inch neodymium magnet low-frequency drivers, one horn-type 8-inch midrange driver, and two 1.4-inch exit high-frequency compression drivers. The cabinet is made of marine-grade plywood with a durable polyurea (PCP) coating, and includes a robust metal grille with sound-absorbing foam, side handles, and a recessed rear handle.
VT-08 3-Way double 10inch line array：
1.High performance 3-way passive line array loudspeaker.
2.2x10" LF; 1X8" MF; 2X2.5"HF neodymium drivers.
3.V8 cabinet box is made by compact birch plywood enclosure, with a multi-layered weather protected finish.
4.For protable usesing and fixed venue application.

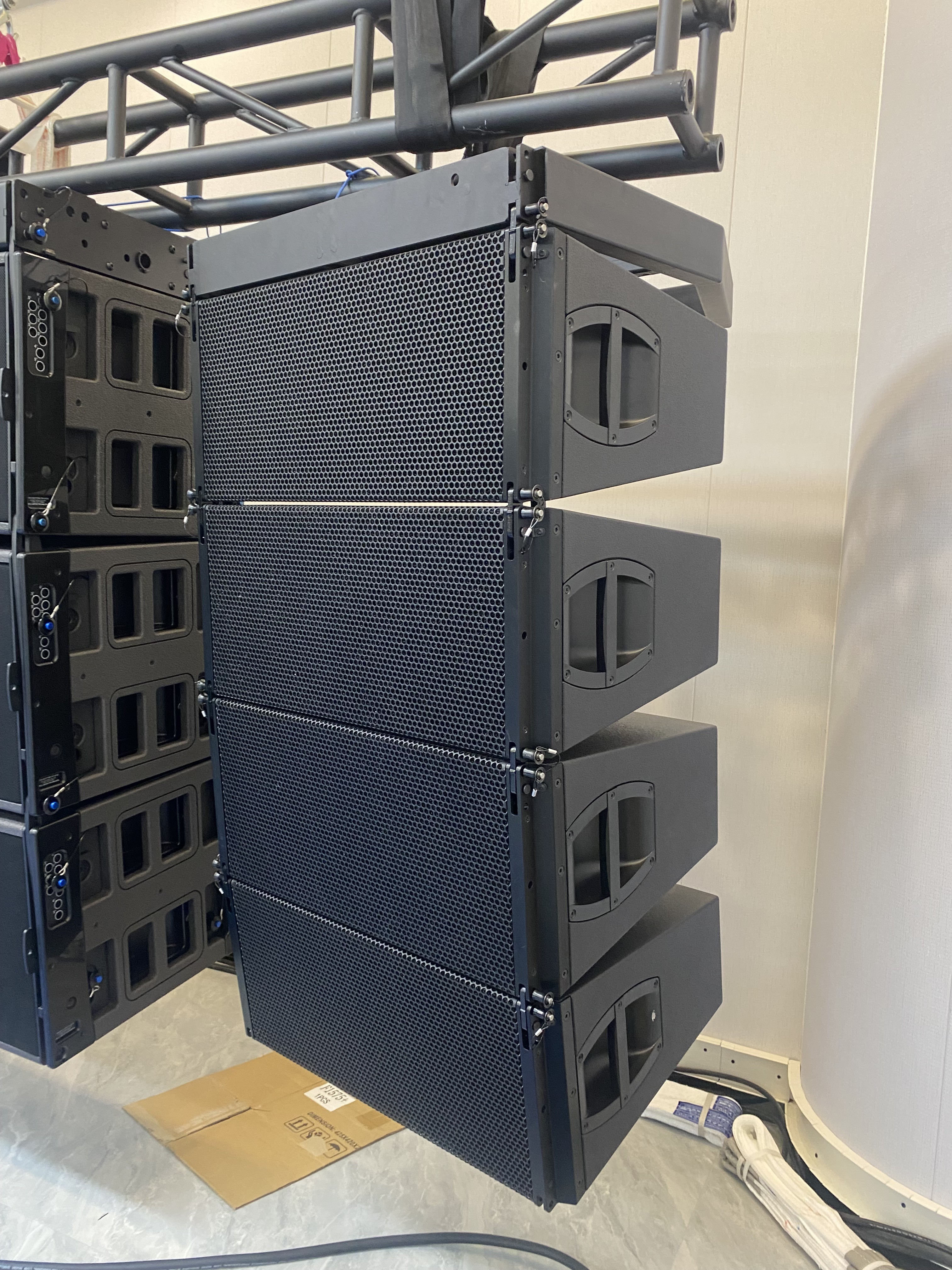

5.The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers.
