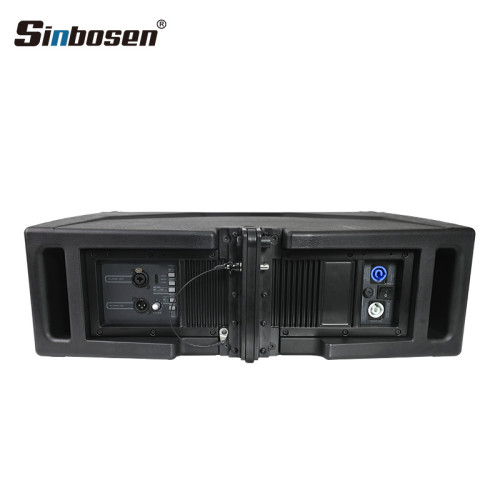

H-20A professional audio sound system 2-way dual 10" active line array module
H-20A professional audio sound system 2-way dual 10" active line array module
H-20A professional audio sound system 2-way dual 10" active line array module
H-20A professional audio sound system 2-way dual 10" active line array module
H-20A professional audio sound system 2-way dual 10" active line array module
H-20A professional audio sound system 2-way dual 10" active line array module

H-20A professional audio sound system 2-way dual 10" active line array module

Model
H-20A

Item specifics

Max SPL
135 dB
Horizontal coverage angle
100°
Vertical coverage angle
15°

Review

Description

Product Specification
ACTIVE LINE ARRAY MODULE
Drivers
HF:1 x 3''
LF:2 x 10''
Frequency range
55 Hz - 20000 Hz
Power capacity programm / peak:
500 / 1000 W LF
200 / 400W HF
Impedance
8 Ohms LF 8 Ohms HF
Coverage range (h x v)
100 ° x 15°
Sensitivity 1 W / 1 m
-2 dBu/+4 dBu
SPLmax / 1 m / peak
135 dB
Active module
2CH class-D digital amplifier
Cabinet
plastic
Product Feature：
●1400 Watt Peak power - 700 Watt RMS
●135 dB max SPL
●55 Hz 20 kHz frequency response
●2 x 10" Woofers
●1 x 3" Compression Driver
●Tour grade safe and solid variable mechanics
●Composite PP enclosure structurally wooden reinforced
●Tour sound in a compact size
●Powerful class D amplifiers
