3-Way double 12 inch professional line array speakers
- Model
- JT-08
Item specifics
- Components
- 2 x 12"/10"/2 x 1.4"
- Dispersion
- 80°
- SPLmax
- 145 dB
- Weight
- 60 kg / 132 lb
Review
Description
| Frequency response (-5 dB standard) | 48 Hz - 17 kHzHz | ||||
| Frequency response (-5 dB CUT mode) | 85 Hz - 17 kHz | ||||
| Configuration | Large format 3-way line array loudspeaker | ||||
| Nominal impedance | 6 Ω (LF) / 12 Ω (MHF) | ||||
Power handling capacity LF (RMS/peak 10 ms) | 500/2000 W | ||||
Power handling capacity MHF (RMS/peak 10 ms) | 200/800 W | ||||
Nominal dispersion angle (h x v) | 80°² | ||||
Splay angle settings | 0 - 7° (1° increment) | ||||
Components | 2 x 12" driver / 1 x 10" driver
2 x 1.4" exit compression driver
passive crossover network | ||||
Connections | 2 x NLT4 F/M
optional 2 x EP5 or 2 x NL8 | ||||
Dimensions (H x W x D) | 360 x 1100 x 570 mm
14.2 x 43.3 x 22.4" | ||||
Weight | 60 kg/132 lb | ||||
Feature：

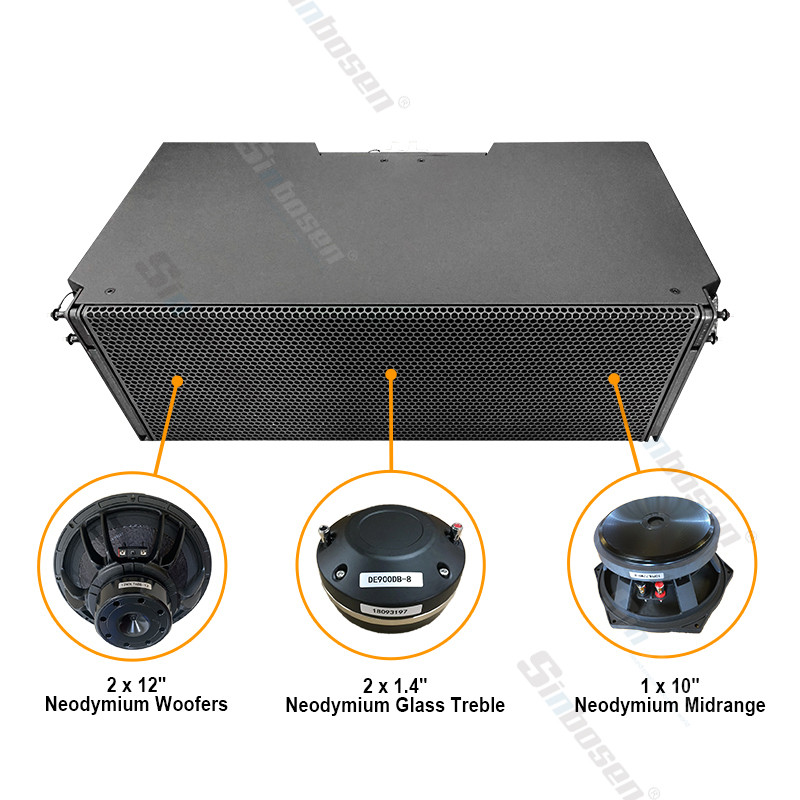

1.2x12" LF; 1X10" MF; 2X3"HF neodymium drivers.
2.High quality compact birch wood enclosure.
3.Large format 3-way line array loudspeaker.

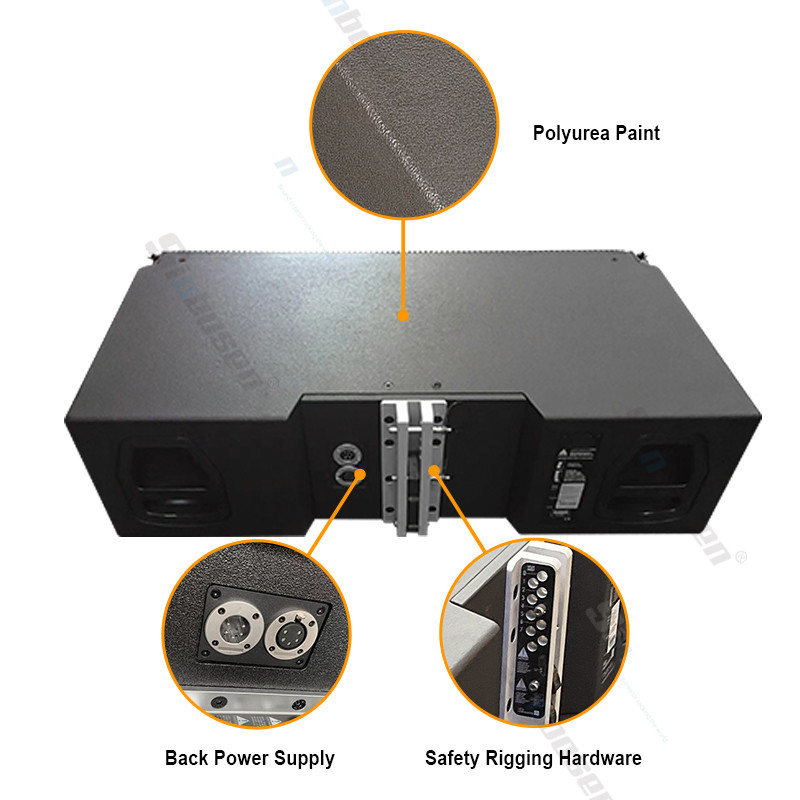

4.First grade Russian birch plywood and muti-layer spray polyured waterproofing coating.
5.It can be used in columns of purely JT-08 loudspeakers or combined with JT-SUB.
