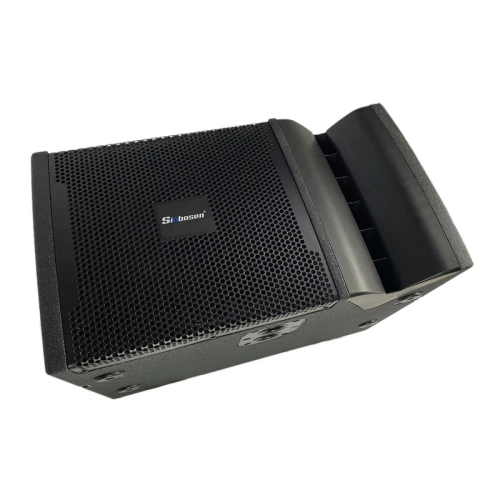

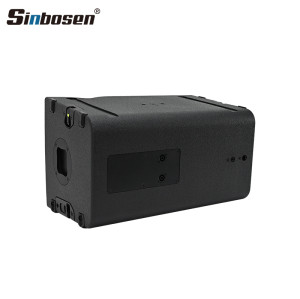

V-932 Active 12 inch line array speaker lightweight
- Model
- V-932
Item specifics
- Type
- Two-way line array speaker
- Frequency Response
- 75 Hz - 20 kHz
- Application
- STAGE MONITOR ,STUDIO MONITOR
- Voltage
- 90-130V or 200-240V
Review
Description
Specification
| V-932 Specification | |
| Frequency Range (-10 dB): | 57 Hz - 20 kHz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz |
| Coverage pattern: | 100° x 15° nominal (horizontal x vertical) |
| 800W | |
| Power (Continuous/Program/Peak): | Passive: 800 W / 1600 W / 3200 W Bi-amp LF: 800 W / 1600 W / 3200 W Bi-amp HF: 75 W / 150 W / 300 W |
| Maximum System SPL : | Passive: 130 dB; Bi-amp LF: 130 dB; Bi-amp HF: 139 dB |
| Neodymium magnet LF: 1 x 2262HPL, dual voice coil HF: 3 x 2408H, 1.5'' diaphram | |
| 95dB | |
| Black Emery paint | |

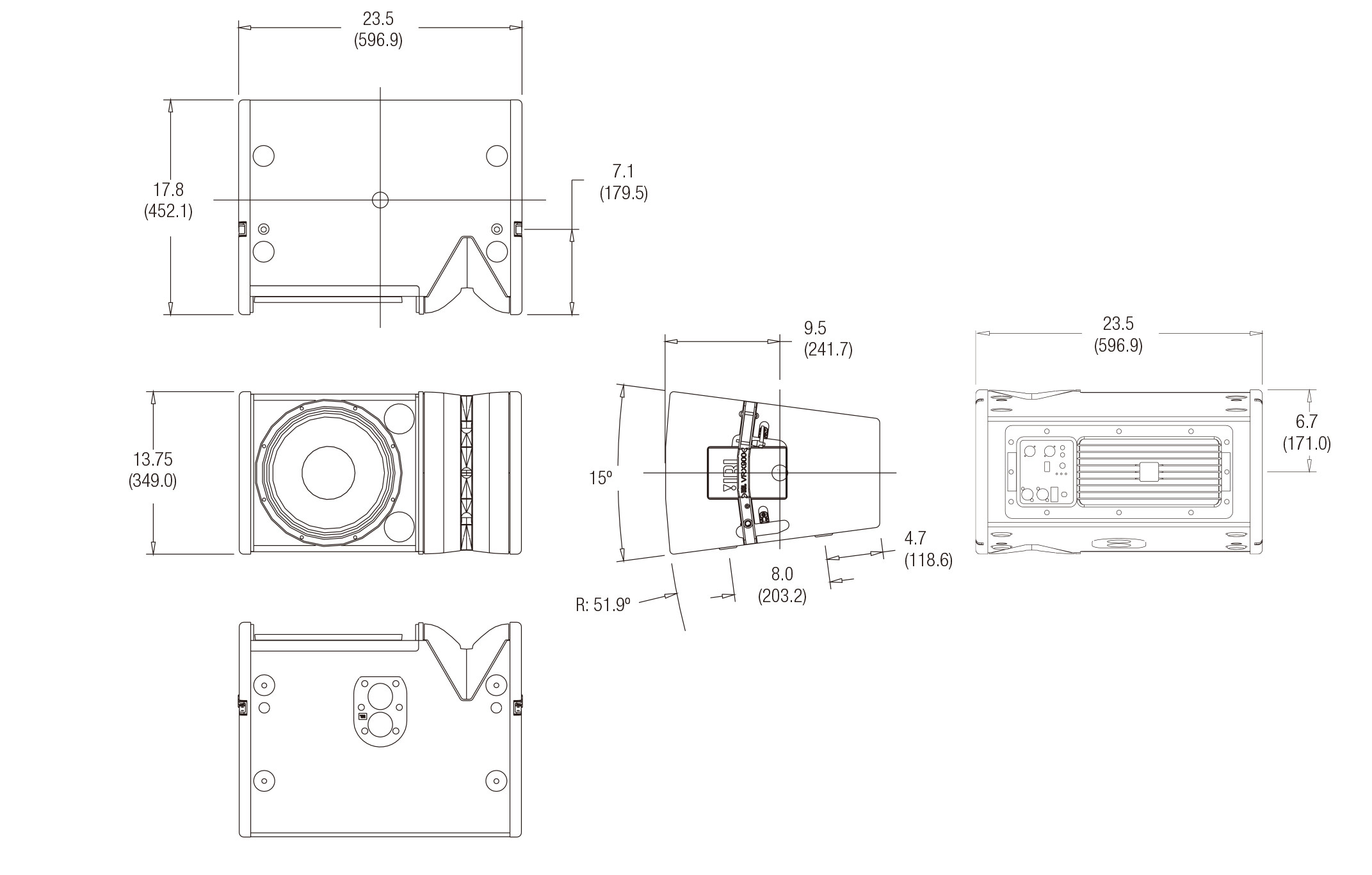

| Dimensions (H x W x D): | 343 mm x 597 mm x 376 mm |
| Weight (KG): | 24kg |
Feature:
●Neodymium magnets differentially drive woofers for high power handling and low weight.
●Professional compression driver design and unprecedented array coherence.
●Double angle rod socket, aiming flexible. The speaker can be mounted to a 35mm pole or tripod.
●Integrated rigging hardware for easy attachment of enclosures and optional array frames.
●Professional compression driver design and unprecedented array coherence.
●Double angle rod socket, aiming flexible. The speaker can be mounted to a 35mm pole or tripod.
●Integrated rigging hardware for easy attachment of enclosures and optional array frames.

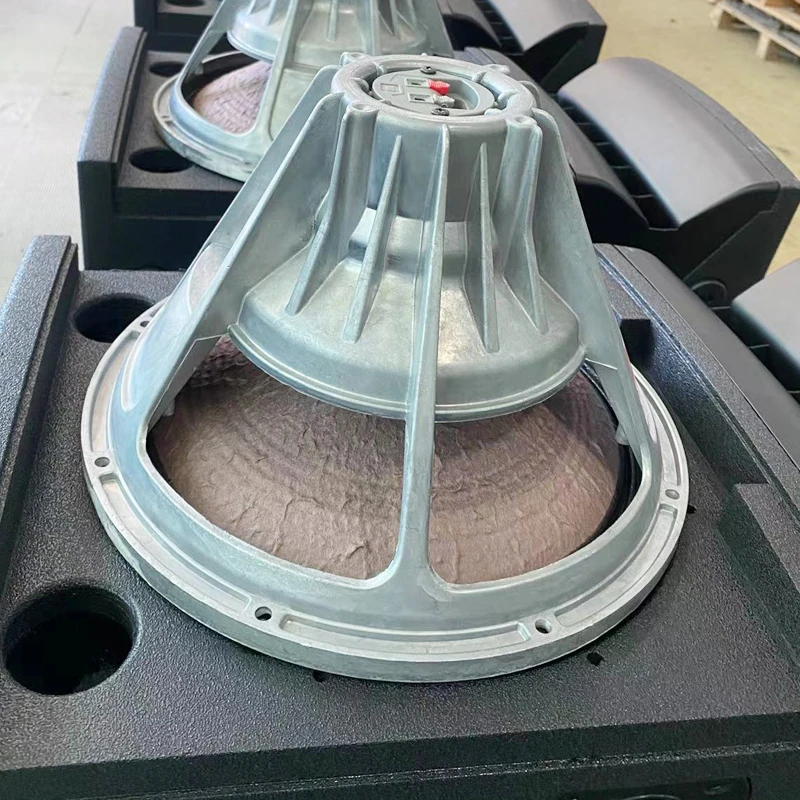

Woofer

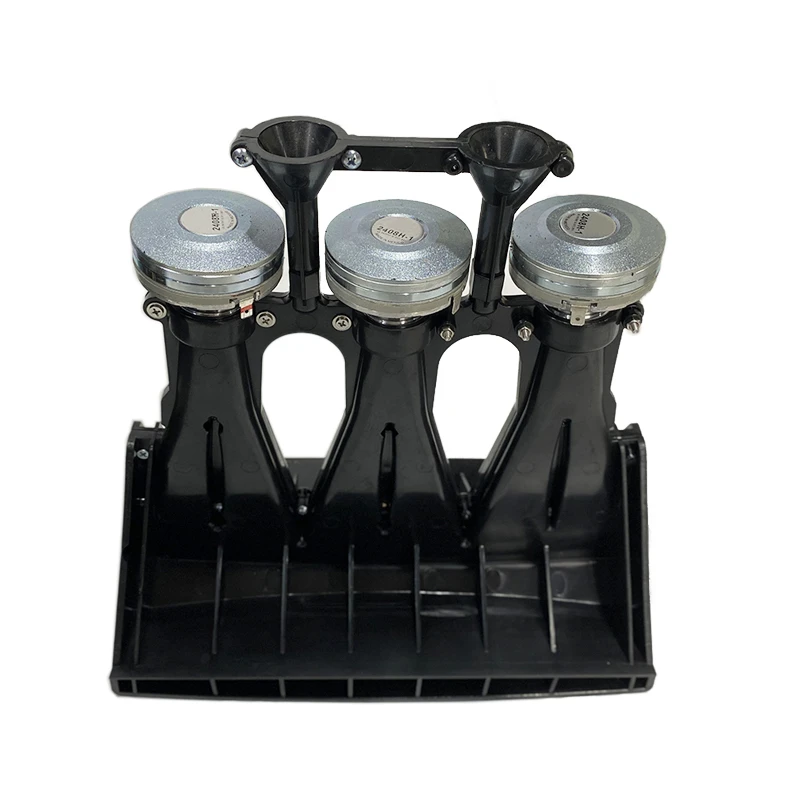

Tweeter

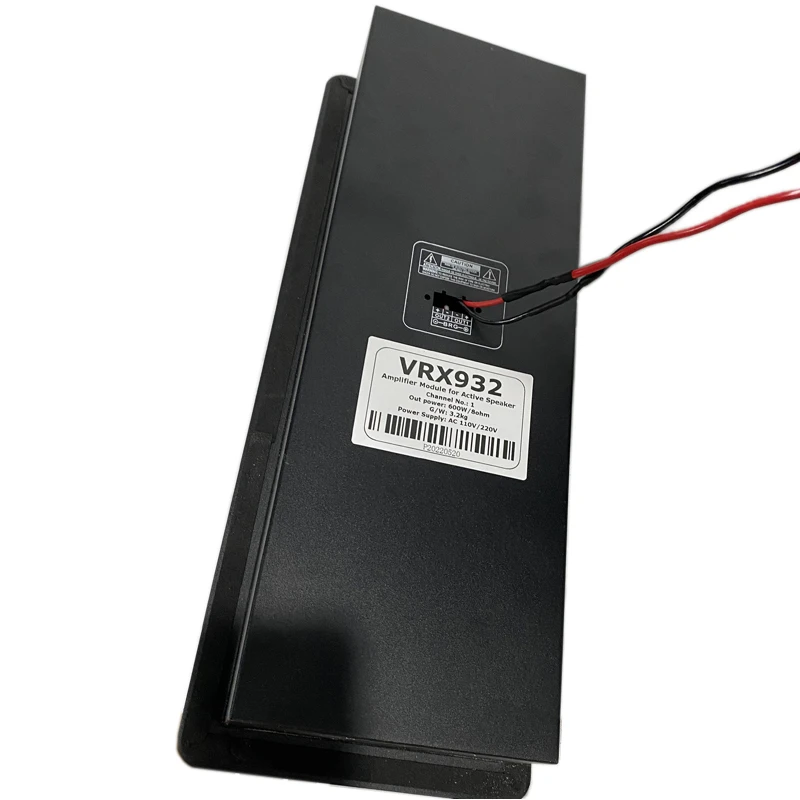

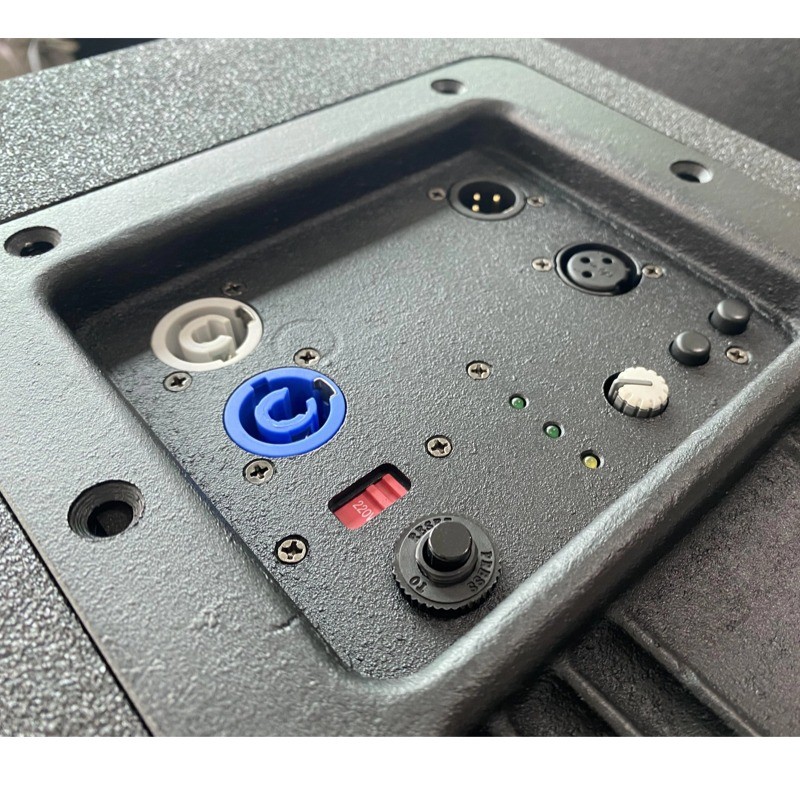

Amplifier board

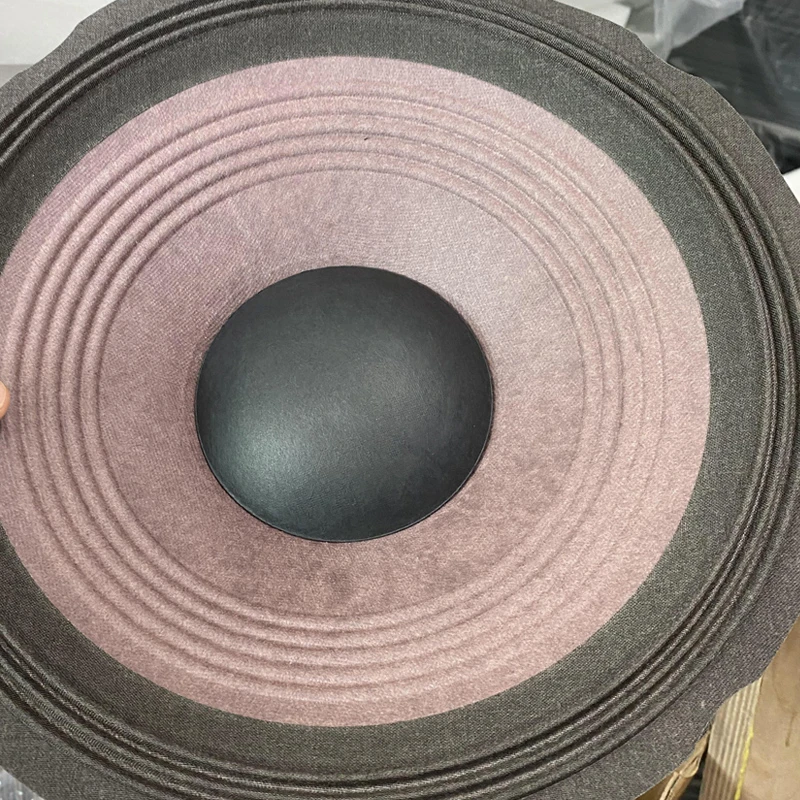

Paper cones
Bouncing waves

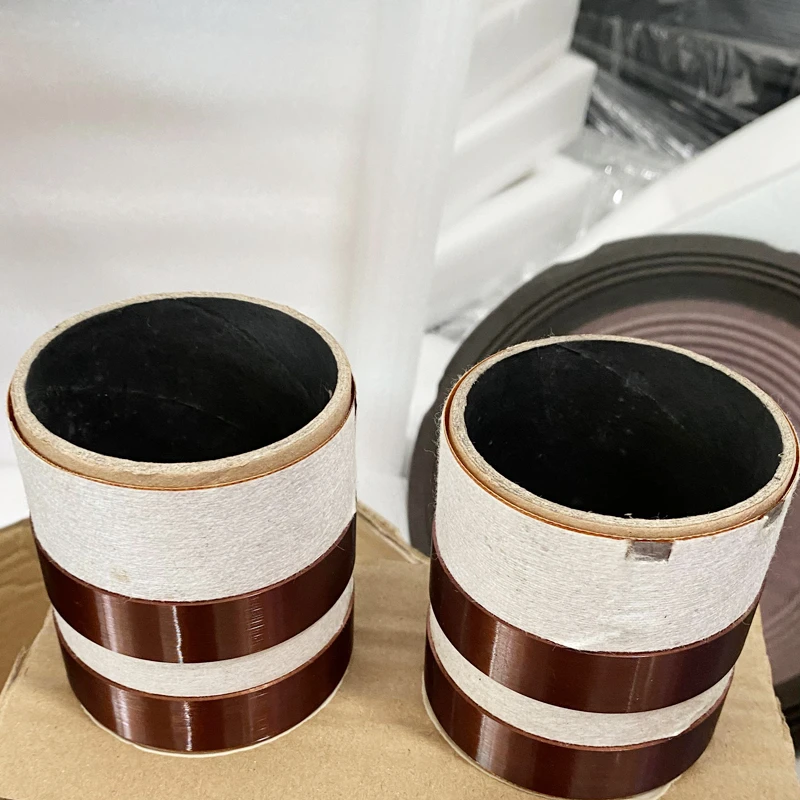

Dual voice coil

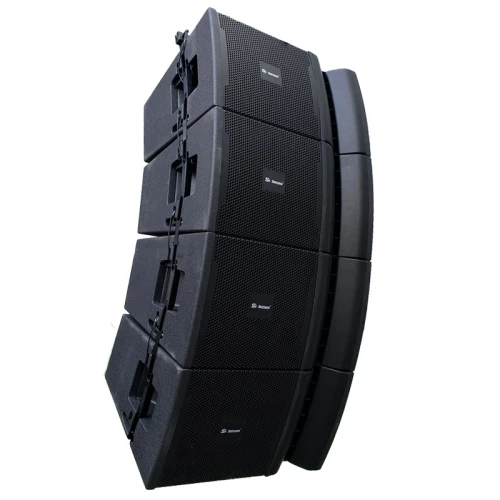

12 inch Line array
VRX 932
Line aray speaker box
2 way full range speaker
