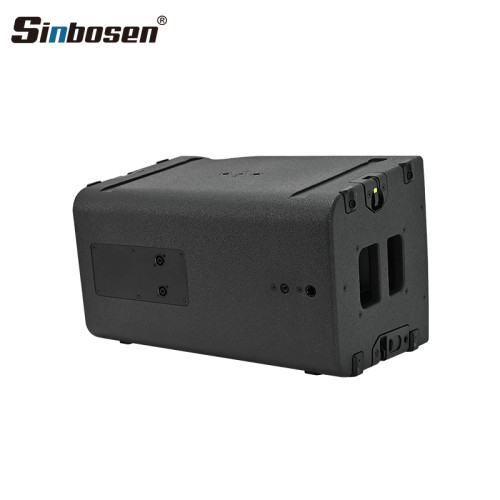

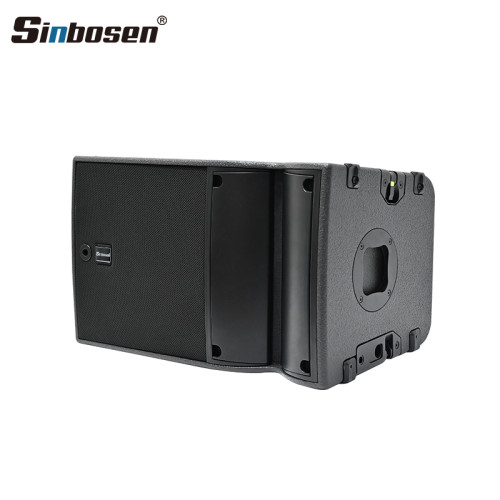

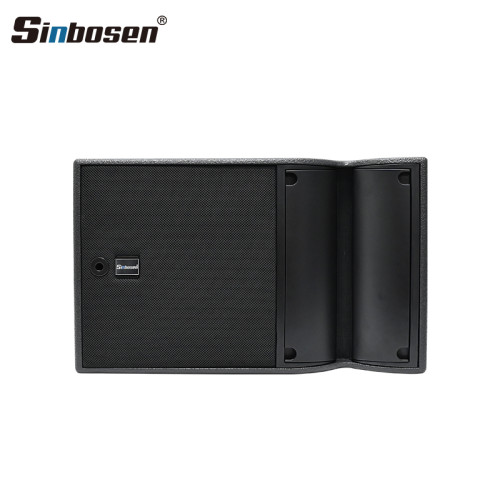

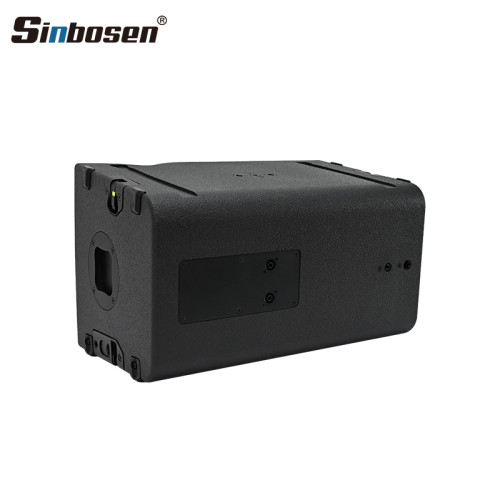

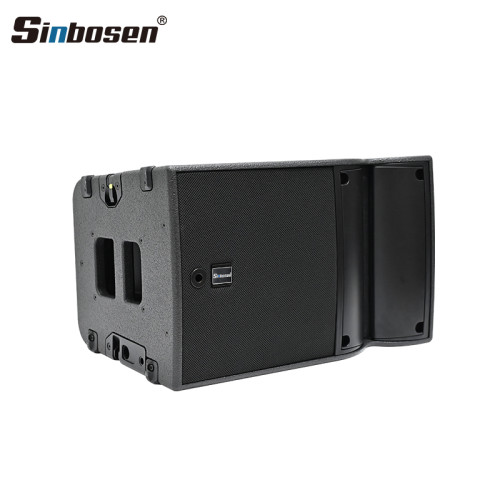

2-way dual 10-inch passive professional line array speakers
- Model
- KA10
Item specifics
- Usable bandwidth (-10 dB)
- 66 Hz – 20 kHz
- Maximum SPL1
- 140 dB
Review
Description
| Usable bandwidth (-10 dB) | 66 Hz – 20 kHz | ||||
| Maximum SPL1 | 140 dB | ||||
| Nominal directivity (-6 dB) | Enclosure: 10°

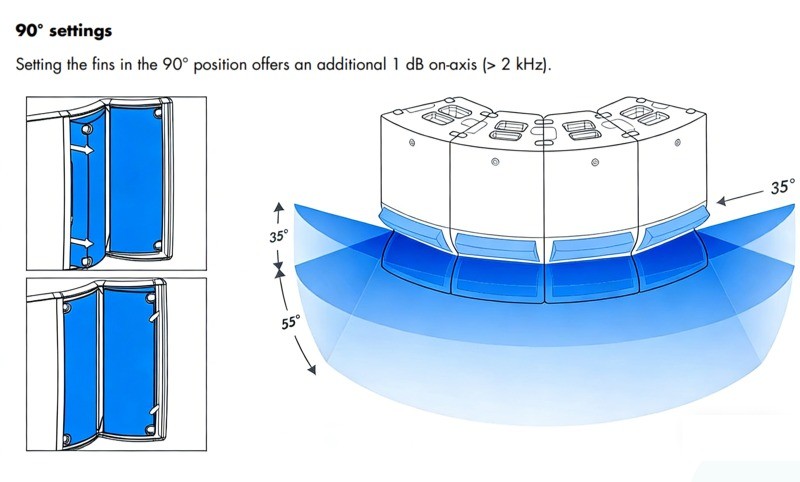

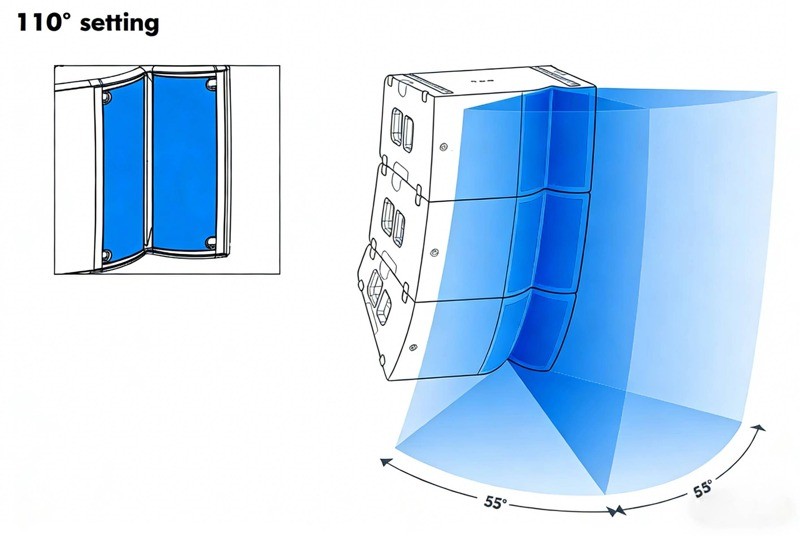

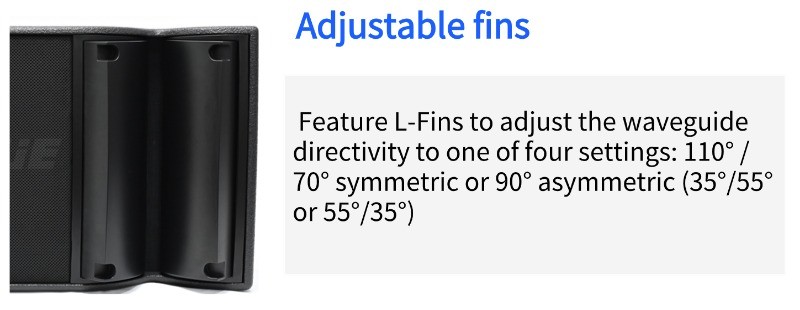

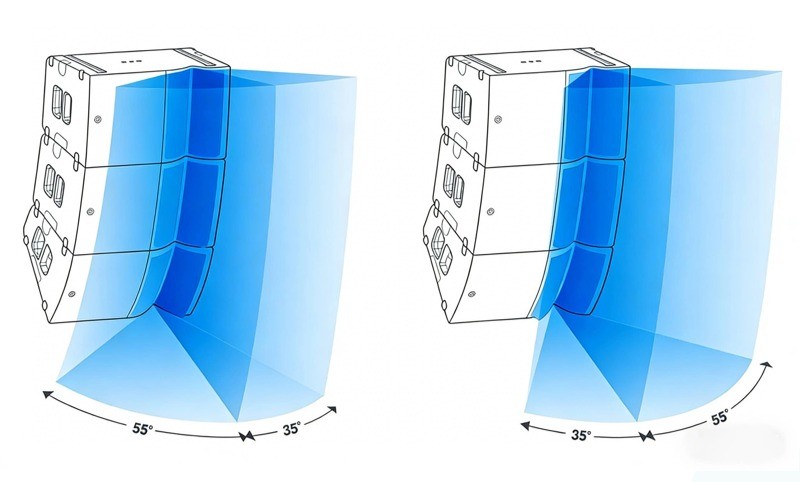

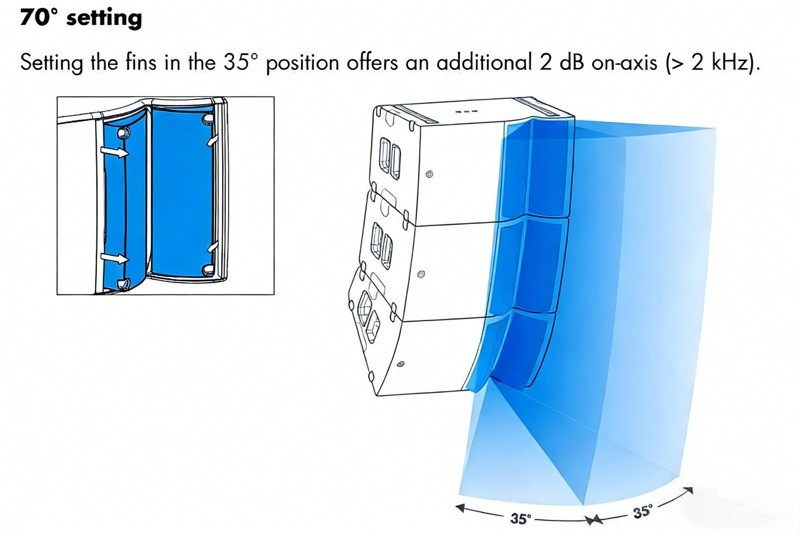

L-Fins : 110° / 70° symmetric ; 90° asymmetric | ||||
| Transducers | LF: 1 × 10″ cone drivers
HF: 1 × 2.5″ diaphragm compression drivers | ||||
Acoustical load | LF: bass-reflex, L-Vents
HF: DOSC waveguide; Panflex | ||||
Nominal impedance | 8 Ω | ||||
Connectors | 2 × 4-point speakON | ||||
Rigging and handling | flush-fitting 2-point rigging system
2 × handles
8 × corner stop
2 × ground runner | ||||

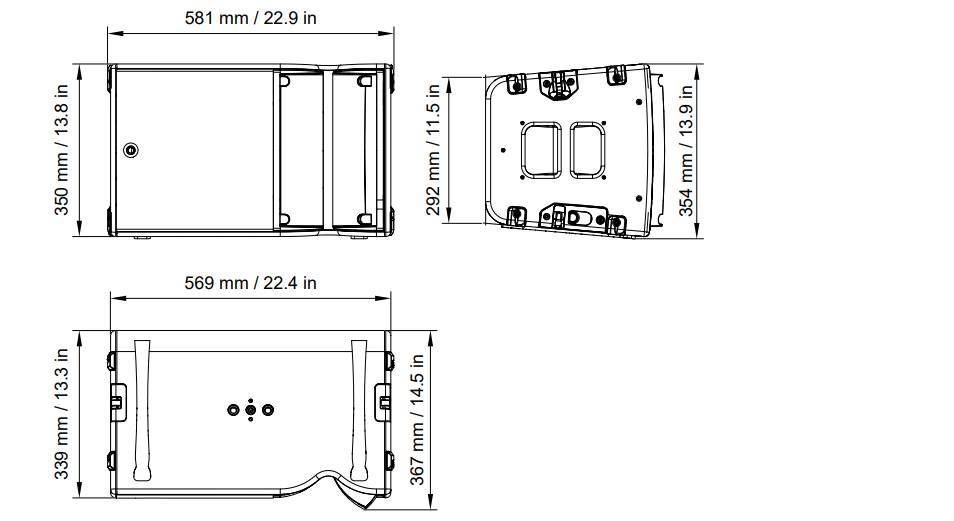

Dimensions | 581 mm ( 22.9 in) / 350 mm (13.8 in) / 367 mm (14.5 in) | ||||
Weight (net) | 22 kg / 49 lb | ||||
Cabinet | premium grade Baltic beech and birch plywood | ||||
Front | Coated steel grill
Acoustically neutral 3D fabric | ||||
Rigging components | High grade steel with anti-corrosion coating | ||||
Overview
This 10-inch passive two-way compact line array loudspeaker is designed for mid-distance projection, flexible installation, and concert-quality sound reinforcement. It delivers high-fidelity sound with clear vocals and excellent music reproduction.
Feature：
1. Compact size, delivering high sound pressure level and excellent sound-to-volume ratio
2. Flexible installation options including vertical, horizontal, and hanging
3. High-quality neodymium magnet speaker and birch plywood
