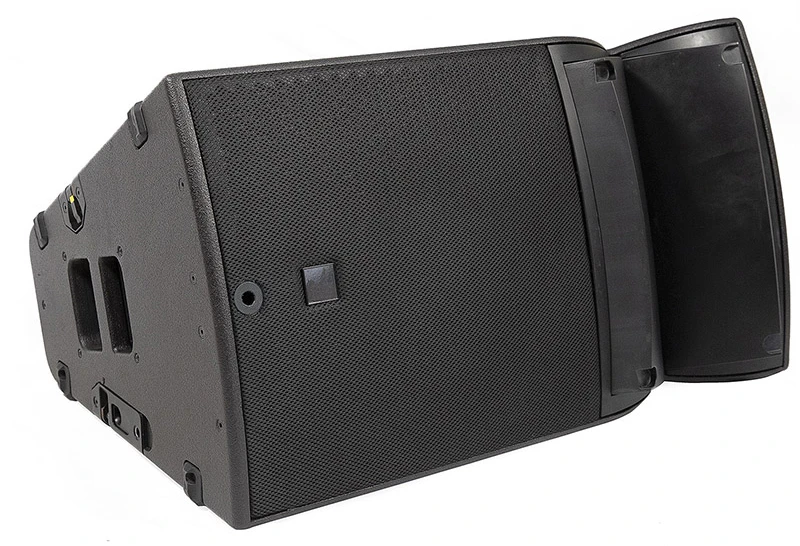

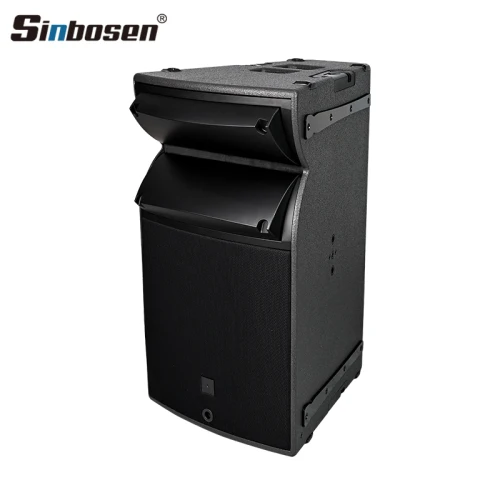

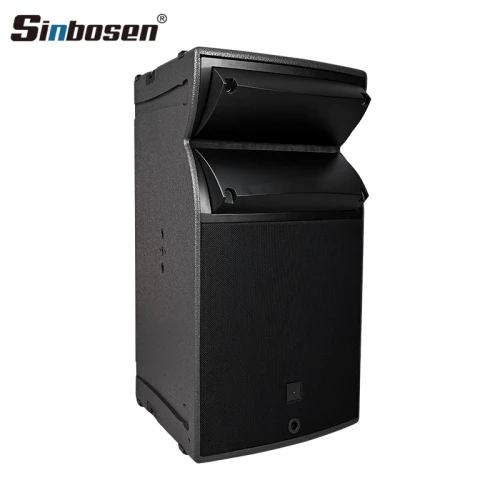

Professional 15 inch line array speaker KA15 wide infill and side-fill
- Model
- KA15 wide
Item specifics
- Maximum SPL
- 141 dB
- Nominal impedance
- 8 Ω
- Type
- line array speaker
Review
Description
| KA15 wide Specification | |
|---|---|
| Usable bandwidth (-10 dB) | 42 Hz – 20 kHz |
| Maximum SPL | 141 dB |

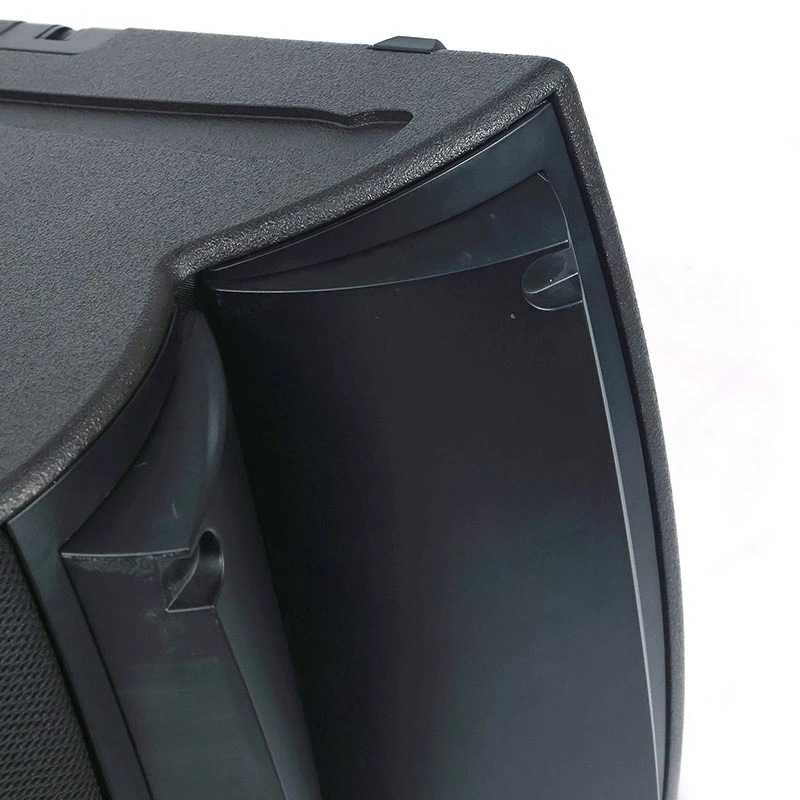

| Nominal directivity (-6 dB) | Enclosure: 30° L-Fins: 110° / 70° symmetric , 90° asymmetric |

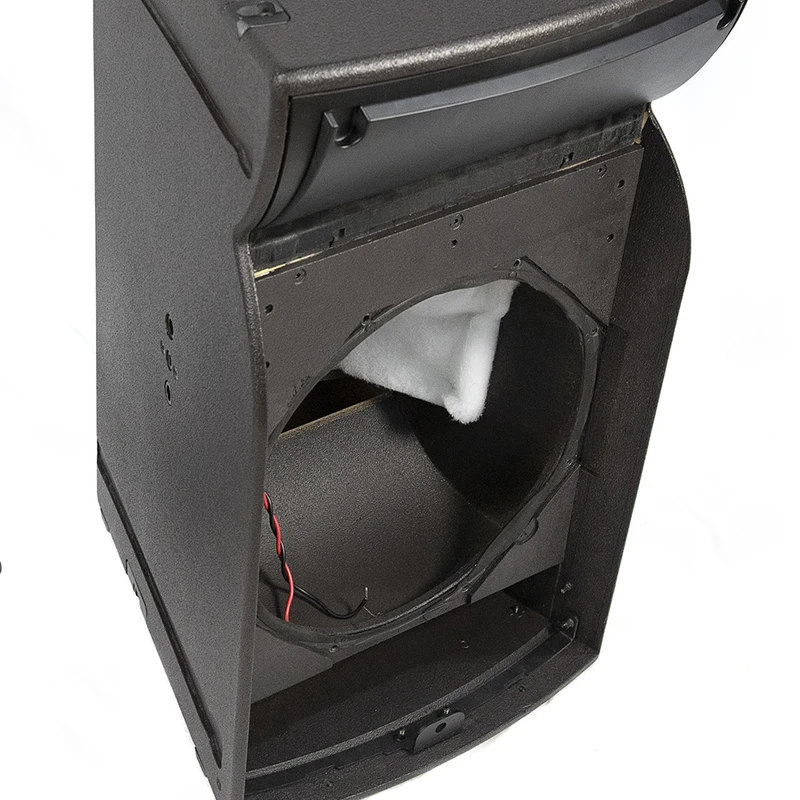

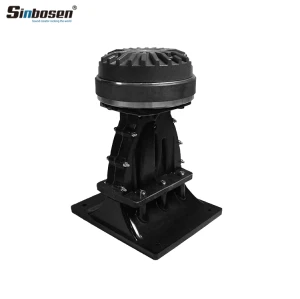

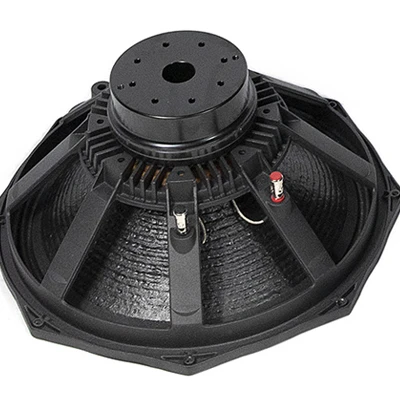

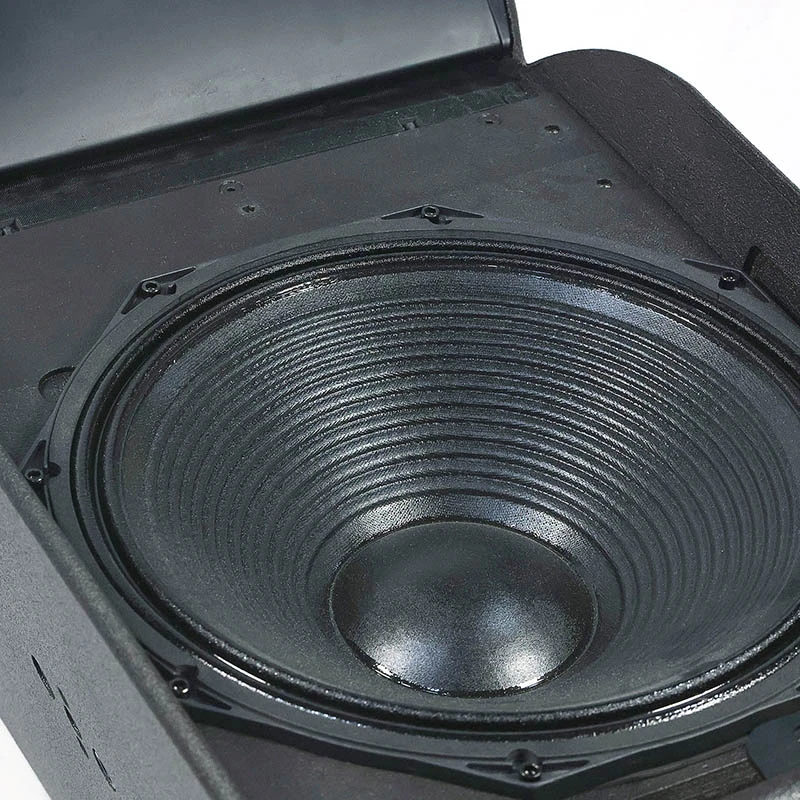

| Transducers | LF: 1 × 15″ cone drivers HF: 1 × 3″ diaphragm compression drivers |
| Acoustical load | LF: bass-reflex HF: Waveguide |
| Nominal impedance | 8 Ω |

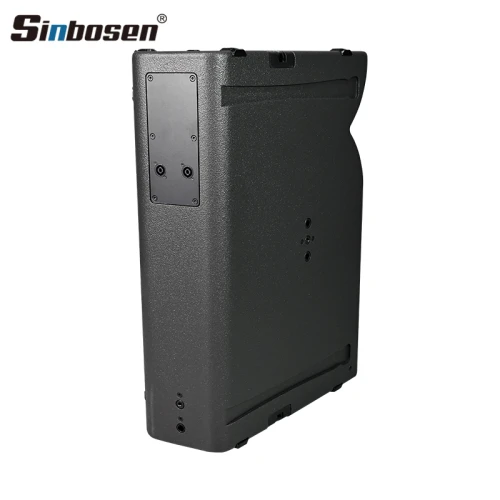

| Connectors | IN :1 × 4-point speakON LINK :1 × 4-point speakON |

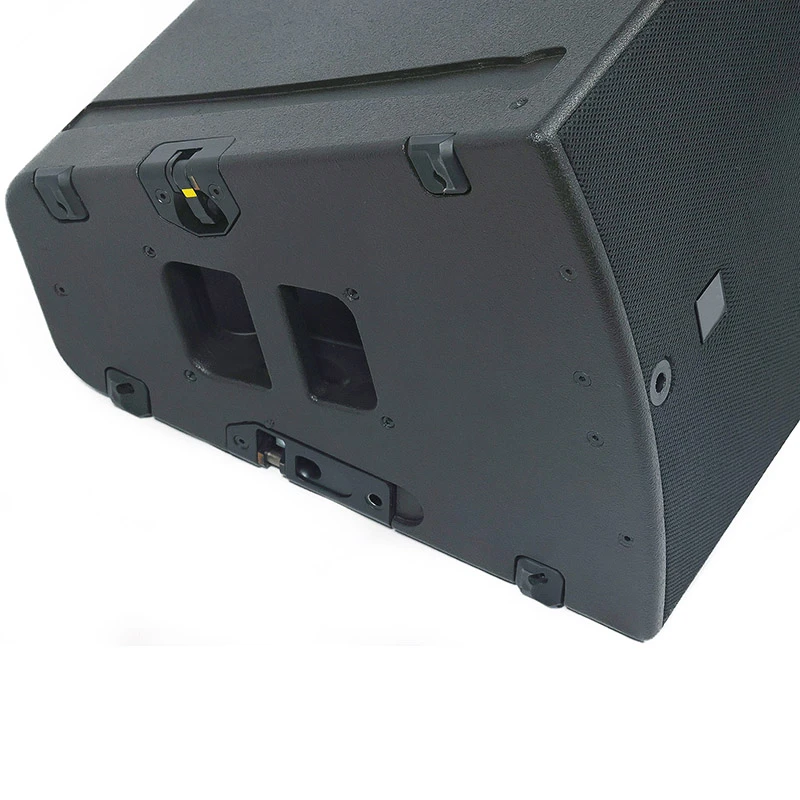

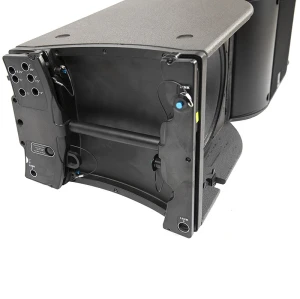

| Rigging and handling | Flush-fitting two-point rigging system |
| 1 handle | |
| 8 corner stops | |
| 2 ground runners | |
| Cabinet | FIrst grade Russian birch plywood |

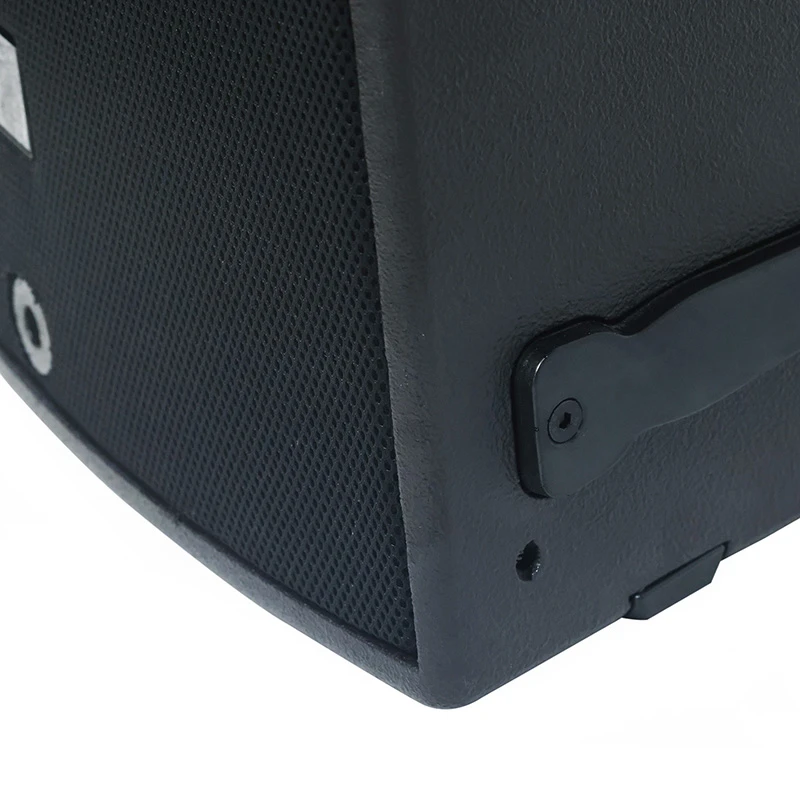

| Front | Coated steel grill Acoustically neutral 3D fabric |
| Rigging components | High grade steel with anti-corrosion coating |
| Weight | 33 kg / 73 lb |
FEATURE
●Flexible layout, strong ease of use.
●Vertical coverage angle of 30°, which brings wide coverage to a compact line array without compromising vision.
●The user can adjust the directivity to cover a specific geometry of the audience area and ensure excellent frequency response stability.
●The KA15 Wide and KA15 Focus can be hung together or stacked together to form a vertical line array.
●The KA15 Wide provides wide horizontal coverage when mounted radially, which is ideal for infill and side-fill use on large stages.
●A single KA15 Wide can also be used as a point source pole mount with adjustable directivity, or for applications such as delayed fill.
●The KA15 Wide delivers large concert-level low frequency response.
●Vertical coverage angle of 30°, which brings wide coverage to a compact line array without compromising vision.
●The user can adjust the directivity to cover a specific geometry of the audience area and ensure excellent frequency response stability.
●The KA15 Wide and KA15 Focus can be hung together or stacked together to form a vertical line array.
●The KA15 Wide provides wide horizontal coverage when mounted radially, which is ideal for infill and side-fill use on large stages.
●A single KA15 Wide can also be used as a point source pole mount with adjustable directivity, or for applications such as delayed fill.
●The KA15 Wide delivers large concert-level low frequency response.
DETAIL
