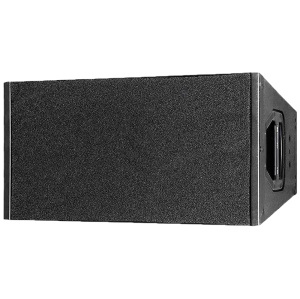

Sinbosen High-grade pa speaker dual 15 inch 3 ways line array speakers outdoor professional event
- Model
- KA-1
Item specifics
- Type
- 3 way audio line array system
- Usable bandwidth (-10 dB)
- 35 Hz – 20 kHz
- Maximum SPL
- 149 dB
- Application
- Outdoor performance, outdoor show
- RMS Power (LF)
- 2 x 600W
- Impedence
- 8Ω
Review
Description
Specification | |
Type | 3-way, dual 15", bi-amp |
Usable bandwidth (-10 dB) | 35 Hz – 20 KHz |
Maximum SPL | 149 dB |
Nominal directivity (-6 dB) | Horizontal: 90° symmetric |
| Vertical: dependent upon the number of elements and the line source curvature |
RMS handling capacity | LF: 2 × 15″ neodymium |
MF: 4 × 6.5″ neodymium, direct-radiating | |
| HF: 3 × 3″ diaphragm compression drivers |
| LF: 2X600W, MF:600W, HF:220W |
Nominal impedance | LF: 2 × 8 Ω ; MF: 8 Ω; HF: 8 Ω |
Acoustical load | LF: Bass-reflex ; MF: Bass-reflex; HF: Waveguide |
Connectors | 2 × 8-point PA-COM |
Rigging and handling | 4 handles integrated into the cabinet Inter-enclosure angles: 0°, 0.5°, 1°, 1.5°, 2°, 2.5°, 3°, 4° or 5° |
Cabinet | First grade Russian birch plywood,high density polyethylene |
Front | Coated steel grill,acoustically neutral 3D fabric |
Rigging components | High grade steel with anti-corrosion coating |
Finish | Dark Grey brown |
Dimension | 134x44x52cm (WxHxD) |
Weight (net) | 106 kg / 234 lb |
FEATURE OF KA-1
Made of first grade Russian birch plywood.
The surface is coated with polyurea paint, which is anti-corrosion, waterproof and wear-resistant.
Steel grating and Rigging components are also high-grade steel with anti-corrosion coating.
The front is wrapped in acoustically neutral 3D fabric.
Built-in two 600W 15 inch neodymium woofers, four 600W 6.5 inch neodymium midrange and three 220W 3 inch neodymium tweeters!
KA-1 adds some user-friendly designs like:
The inter-enclosure angles can be adjusted and you can replace speakers without disassembly!
