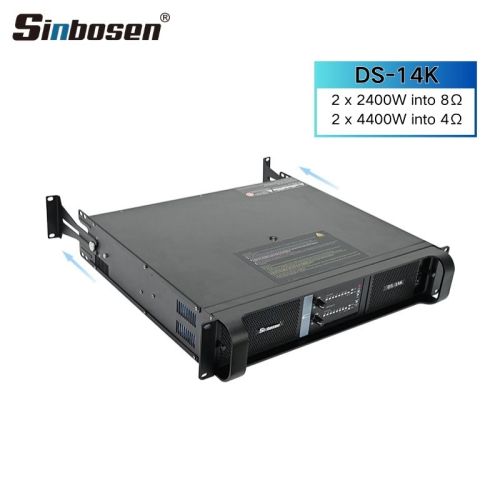

Sinbosen high power 4400w 2 channel DS-14K amplifier for dual 18-inch bass

Sinbosen high power 4400w 2 channel DS-14K amplifier for dual 18-inch bass

One DS-14K switch high power amplifier can use with 2 pcs Dual 18 inch speaker

DS-14K SPECIFICATIONS

8 ohms Stereo Power: 2x2400W

4 ohms Stereo Power: 2x4400W

8 ohms Bridged Power: 8800W

4 ohms Bridged Power: 14000W

Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W: <0.1%

Signal-to-Noise Ratio: >112 dBA

Channel separation (Crosstalk) at 1 kHz: >70 dB

Input Connectors (per channel): 3-pin XLR, electronically balanced

Output Connectors (per channel): Binding Posts 2-pole

TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input

Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable

Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance: 20 kOhm

Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

Newly upgraded version DS-14K amplifier details

1. Longer heatsink +30mm, so now 94mm!

2. Use original "Siemens" capacitors.

- 12pcs 3300uf/200V (+2 pcs more than the old version)

- 4pcs 2200uf/200V

3. High-quality Blue amplifier board.

4. Use original "Sanken" and "Fairchild" transistor.

5. Use high-quality fans from Taiwan.

6. Use Switzerland XLR Brand -- Neutrik.

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;

Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
