Model
FP 9000

Item specifics

Product Name
Power Amplifier FP 9000
8Ω Stereo Power (RMS)
1800WX2CH
4Ω Stereo Power(RMS)
3000WX2CH
Channels
2 channels power amplifier
Class
Class TD Power Amplifier
Color
Black, Blus, New panel
Application
Home Theatre, Karaoke Player, Portable Audio Player, Stage
Gross weight
13.8kg
Dimension
483mm* 88mm * 396mm
Special Service
OEM service offered
Warranty
3 Years
Certification
CE, ROHS, TUV

Review

Description

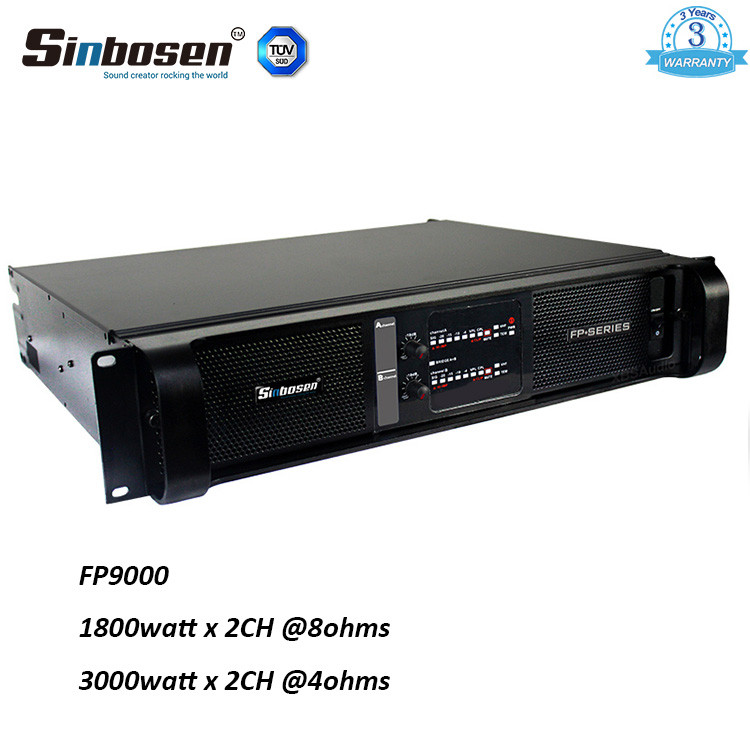

FP9000 Power Amplifier
Occupying the middle of the FP+ Series in power ratings for two-channel models, the FP 9000 provides versatility and value across a wide range of applications for full-range cabinets, band-limited line array systems. A refined Class TD output stage is optimized for effortless reproduction of extreme low frequency content, while the Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content.
Sinbosen FP SERIES Amplifier
FP SeriesFP7000FP9000FP14000FP6000QFP10000QFP20000Q
8ΩStereo Power(RMS)1450WX21600WX22400WX2625WX41350WX42200WX4
4ΩStereo Power(RMS)2800WX23000WX24400WX21300WX42100WX44000WX4
2ΩStereo Power(RMS)3500WX24500WX27000WX21500WX42500WX44500WX4
8ΩBridged Power(RMS)5600W6000W8800W2500WX24200WX28000WX2
4ΩBridged Power(RMS)7000W9000W14000W3000WX25000WX29000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W<0.1%
Signal-to-Noise Ratio>112 dBA
Channel separation (Crosstalk) at 1 kHz>70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass ProtectionACL,IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220 V / 110 V nominal180-240 V / 90-130 V selectable
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 kOhm
Level adjustment (per ch.)Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)483×88×396mm
Packing dimension580×180×560mm
Net weight(kg)1212.2131313.216.8
Gross weight(kg)13.513.814.214.214.319.5
