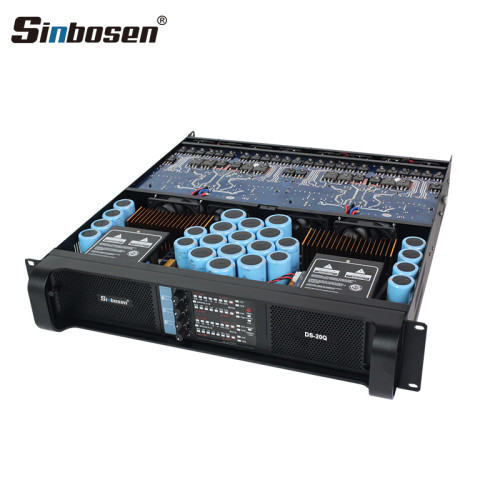

Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer

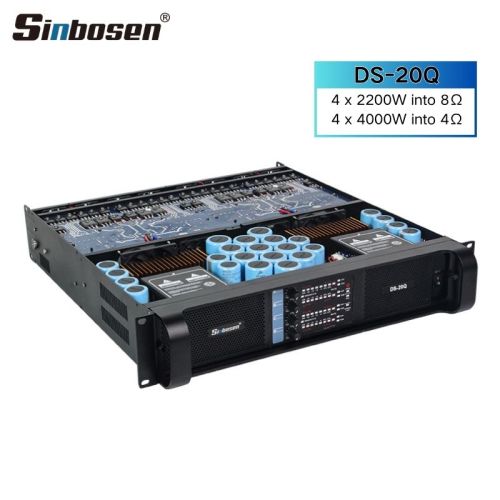

Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer
Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer
Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer
Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer
Sinbosen DS-20Q 4000 watt 4 channel professional bass power amplifier dual 18 inch subwoofer
Model
FP20000Q

Item specifics

8Ω Stereo Power (RMS)
2200W X 4 channel
4Ω Stereo Power (RMS)
4000W X 4 channel
Warranty
3 Years
Special service
OEM service offered
Certification
CE, ROHS, TUV
Panel
Black, Blue, Red
Capacitor
Siemens capacitors 3600uf/200V
Channel
4 channel power amplifier
Class
TD
Application
Large concert ,Outdoor activities
Type
power amplifier
For
18 inch subwoofer
Application
Stage/Concert/Karaoke/DJ/Show/Big Event

Review

Description

Good news! We upgrade DS-20q amplifier successfully. The DS-20q amplifier temperature can be reduced 15-20 degree Celsius when working.

power amplifier


What aspects did we upgrade DS-20Q?

Add more 8 small fans on the backside. Better cooling system

Increased the capacity of Siemens capacitor from 3300uf to 3600uf. Power supply board more stable

 power amplifier



Sinbosen DS-20Q 4000 Watt 4 Channel Professional Bass Power Amplifier Dual 18 Inch Subwoofer


DS-20Q 4 channel live sound bass power amplifier is the core model in the FP series, which is the perfect design for large-scale events. It was first developed by our factory engineer.


Sinbosen DS-20Q Advantage:

FP20000Q power amplifier


Sinbosen DS-20Q some materials information as follows:

 Extended 92mm heatsink, longer and thicker.

 Use the original  "ONSEMI" transistor.

 Use the original "Siemens" capacitors.

- 12pcs 3600uf/200V

- 12pcs 2200uf 200V

 Use Switzerland XLR Brand -- Neutrik.

Sinbosen DS-20Q Power Amplifier Specification:

8Ω Stereo Power (RMS):    2200W X 4

4Ω Stereo Power (RMS):    4000W X 4

8Ω Bridged Power (RMS):  80000W X 2

4Ω Bridged Power (RMS):  90000W X 2


Frequency Response(+o/-0.3dB,1W/8Ω):20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W:<0.1%

Signal-to-Noise Ratio:>112 dBA

Channel separation (Crosstalk) at 1 kHz :>70 dB

Input Connectors (per channel):3 pin XLR, electronically balanced

Output Connectors (per channel):Binding Posts 2-pole

Class:TD

TourClass Protection:ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 220 V / 110 V nominal:180-240 V / 90-130 V selectable

Voltage Gain(dB):23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance:20 kOhm

Level adjustment (per ch.):Front panel potentiometer, 31 positions detented from -inf to 0 dB

Gross weight(kg) : 19.5kg

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;

Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!
