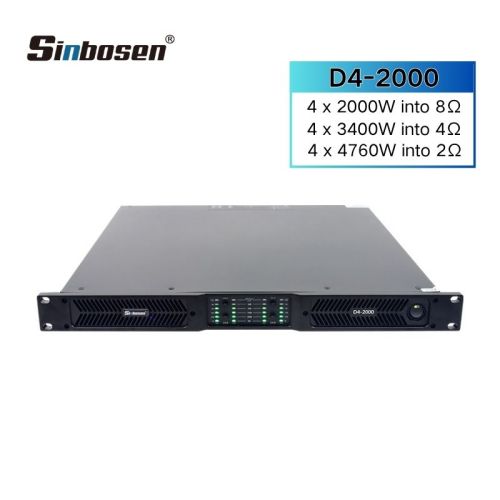

Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000
Model
D4-2000

Item specifics

2Ω Output power
4CHx4760W
4Ω Output power
4CHx3400W
8Ω Output power
4CHx2000W
8Ω Bridge power
2CHx6800W
4Ω Bridge power
2CHx9520W
Voltage
90V-240V
Warranty
3 Years
Minimum load impedance
Stereo 2Ω
Type
Digital amplifier
Feature1
2 ohms stable amplifier
Feature2
1u digital amplifier
Channels
4 channels power amplifier
Class
Class d power amplifier
Special service
OEM service offered

Product review

Description

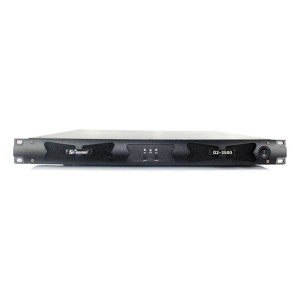

D4-2000 power amplifier
1U Amplifier

D4-2000

 Rated Output Power(THD+N=1%, 1kHz continue sine wave, all channel driving)

8Ω/Stereo

4x2000W

4Ω/Stereo

4x3400W

2Ω/Stereo

4x4760W

16Ω/Bridge

2x4000W

8Ω/Bridge

2x6800W

4Ω/Bridge

2x9520W

 Bridge RMS voltage(THD+N=1%, 1kHz)

126.5V

 Slew rate(1kHZ, low-pass filter bypassed)

50V/us

 Sensitivity(Rated Power,1kHz)

selectable

41dB
38dB
35dB
32dB

selectable
38dB
35dB
32dB
29dB

 THD+N(10%Rated Power,typical)

 0.01%
 IMD-SMPTE(10%Rated Power,typical) 0.01%
 DIM30(10%Rated Power,typical) 0.01%
 Cross-talk(20Hz-1kHz,below Rated Power) ≥90dB
 Frequency response(10% Rated Power,20Hz-20kHz,8Ω ±0.2dB
 Input impedance 20kΩ (Balance),10kΩ(Unbalance)
 Damp factor(8Ω,20Hz-200Hz ≥5000

 SNR(A weighted 20Hz-22kHz)

 ≥112dB

 Main power

 90~260VAC,50~60Hz

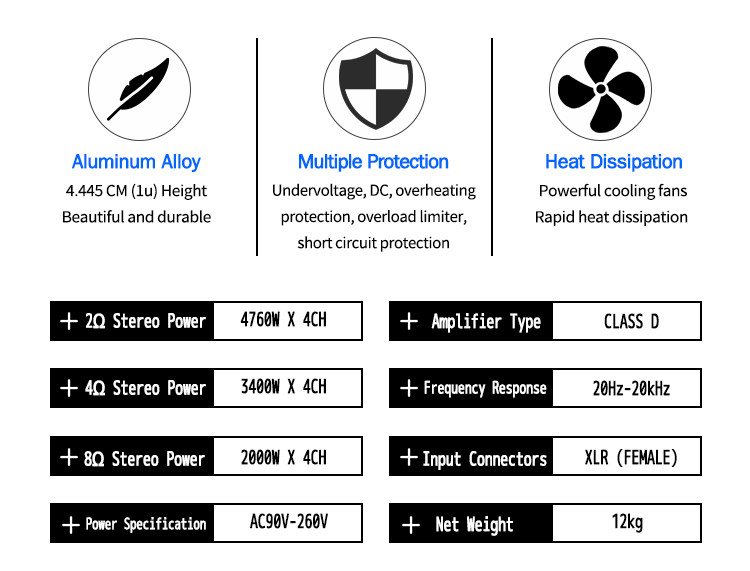

 Protection Under voltage, DC, Over temperature,Over load  limiter,Short protection

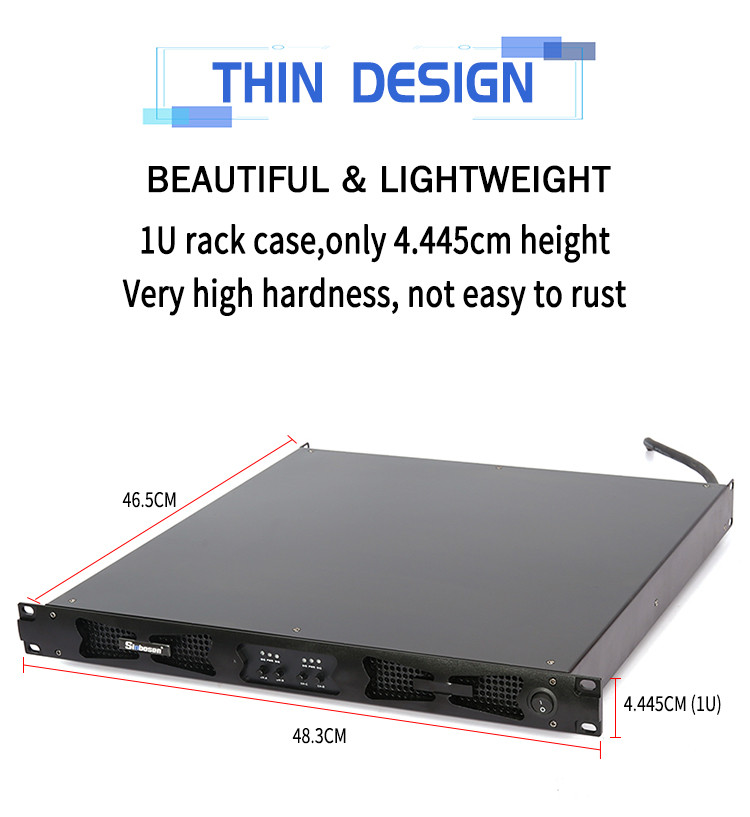

 Size(WxHxD)

 483x44x465mm
 Net weight 12kg
PROFESSIONAL POWER AMPLIFIER

1 Performance overview
a,High efficiency and energy saving, operation cost is low,
b,Compact and light weight,structure is firm.
c,Comply with the safety and EMC standards.
d,90~260VAC / 50~60HZ Wide range power supply.
e,First-class quality, thanks for the components from international high-end manufacturers.
f,Temperature control fan for quiet operation.
g,Modular design and maintenance is convenient.

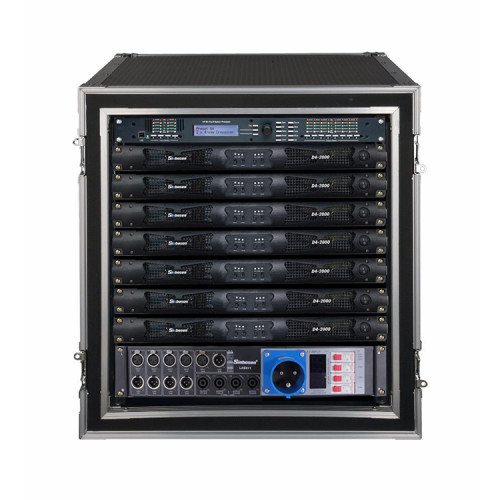

h,Very suitable for mobile show.
i, Reasonable design makes you feel relaxed in the process of using.

2 Environmental protection, energy saving, cost saving

Advantages of high efficiency:
* Low working temperature, rlability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
" The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
* Environmental protection

3. Cooling instructions: Good heat dissipation /High quality fans

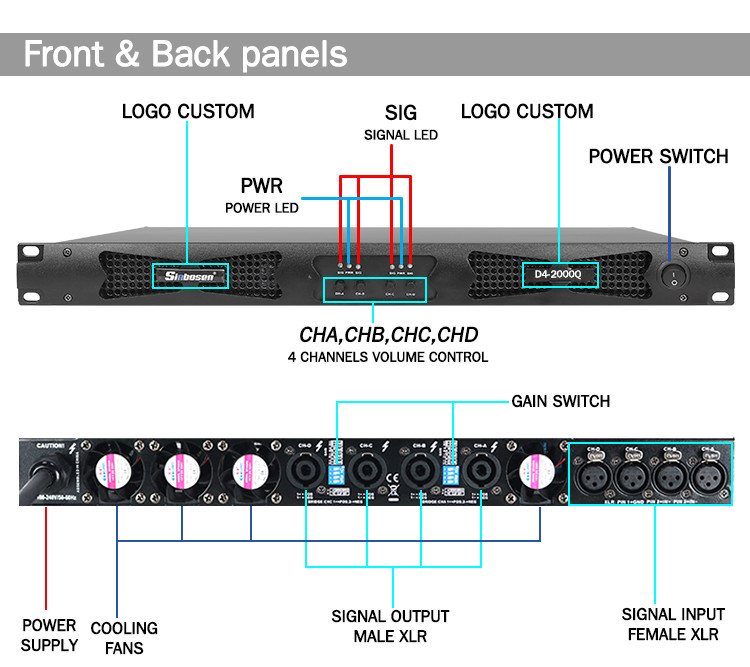

The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.
