1. Use Class D power amplifier module. Unique peak clipping limiter and ripple reduction.

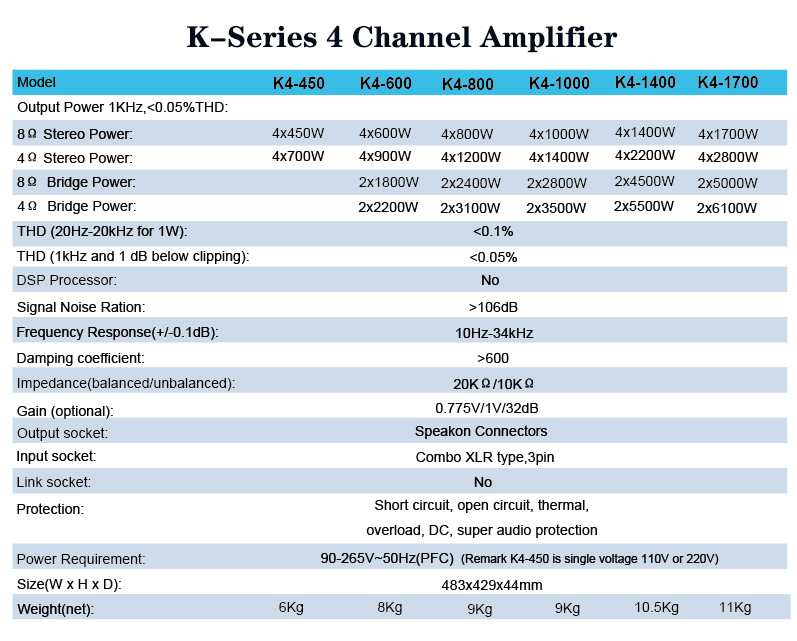

600 watt 4 channel professional 1u digital amplifier
- Model
- K4-600
Item specifics
- Stereo/output power 8Ω/1KHz
- 600Wx4CH
- Stereo/output power 4Ω/1KHz
- 900Wx4CH
- Bridge/output power 8Ω/1KHz
- 1800Wx2CH
- Bridge/output power 4Ω/1KHz
- 2200Wx2CH
- THD（10% -1KHz）
- <0.1%
- Signal Noise Ration
- >106dB
- Damping coefficient
- >600
- Channels
- 4 Channels Power Amplifier
- Class
- Class D Power Amplifier
- Feature
- 1U Power Amplifier
- Voltage
- 90-240V
- Application
- Home theater/Karaoke/Party/Performance
Review
Description
Class D digital power amplifiers are popular among users at home and abroad because of their environmental protection, energy saving, small size and utilization rate of more than 97%. Products are sold in Europe, America and other countries. You will find the Class D amplifier is cost-effective, stable, and fully protected amplifiers.
Attention!
Normally rating power should be amp-power x 1,5times comparing power of tops speaker and amp-power x 2times for the subwoofer.
To protect and extend your amplifier's working life, please don't use this amplifier under 2 ohms.
K series amplifier are suit for Middle and High speaker, not good for Subwoofer.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its light weight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
