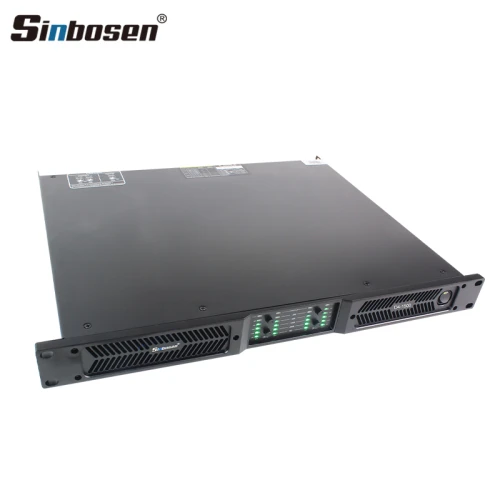

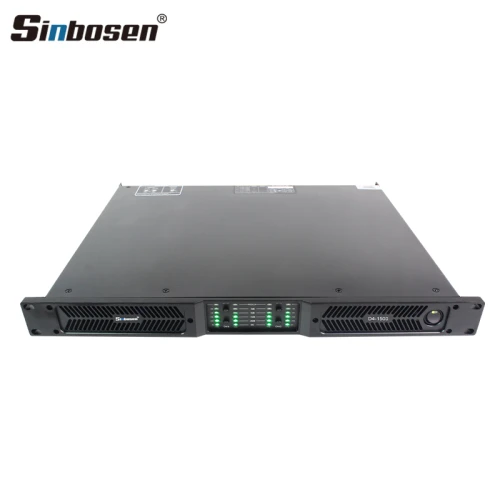

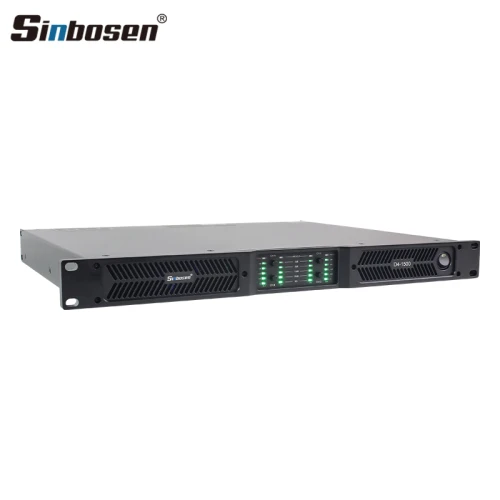

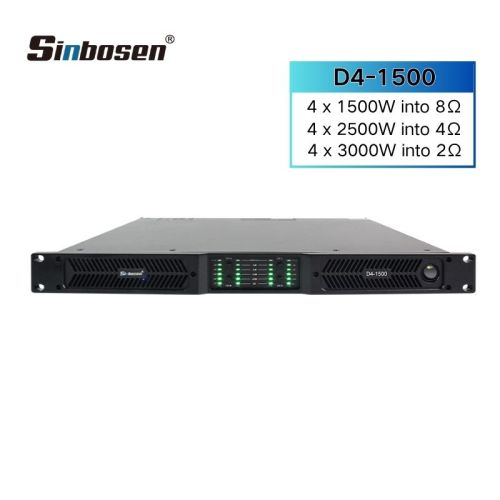

D4-1500 Digital amplifier 90V-270V 2 ohms stable 1500w power amplifier 4 channel
- Model
- D4-1500
Item specifics
- Type
- Class D Amplifier
- Channel
- 4 channel
- 8Ω Stereo Power (RMS)
- 1500W X 4CH
- 4Ω Stereo Power (RMS)
- 2500W X 4CH
- 2Ω Stereo Power (RMS)
- 3000W X 4CH
- Brand
- Sinbosen Audio sound system manufacturer
- Type
- Digital amplifier
- Voltage
- 90V-270V
Review
Description
![](https://icdn.tradew.com/file/201712/1572617/png/7916880.png?x-oss-process=image/quality,Q_90)
Overview:
D4-1300 4-channel D-Series digital amplifier is a powerful and versatile device designed to deliver exceptional audio performance. With its unique ability to operate at a stable 2-ohm impedance, this amplifier is capable of handling demanding speaker configurations with ease. Whether you are setting up a sophisticated home audio system or powering multiple speakers in a commercial setting, the D-Series amplifier ensures excellent sound quality, reliability, and efficiency. Its advanced technology and robust design make it an ideal choice for audio enthusiasts and professionals seeking superior performance and flexibility.
Features:
*Redefining appearance with its ultra-thin 1U design, lightweight construction, and modern aesthetic
*Ensuring superior stability and delivering impeccable sound quality with high fidelity
*Promoting energy efficiency and environmental friendliness, leading to reduced operating costs
*Incorporating active PFC and soft-switching technology for optimized performance
*Operating seamlessly within a wide voltage range of 90V-270V, making it resilient to challenging power grid environments
*Demonstrating reliable 2Ω drive capability for uninterrupted audio reproduction
*Utilizing D-PWM audio modulation technology to maximize energy efficiency by recycling non-essential power
*Featuring a power-saving standby sleep mode, ensuring extended durability and reduced energy consumption.
Product Specification
Model | D2-3000 |
D2-3500 | D2-4200 |
D4-1300
|
D4-1500 |
D4-2000
|
D4-3000
|
|
EIAJ Test Standard, 1 kHz, 1% THD | 8Ω/Stereo | 2×3000W |
2×3500W | 2×4200W |
4×1300W
|
4×1500W |
4×2000W
|
4×3000W
|
4Ω/Stereo | 2×5000W |
2×6300W | 2×7800W |
4×2300W
|
4×2500W |
4×3400W
|
4×5000W
|
|
2Ω/Stereo | 2×7140W | 2×7400W | 2×8500W | 4×2800W | 4×3000W | 4×4760W | 4×6500W | |
8Ω/Bridge | 1×10200W |
1×12500W | 1×15600W |
2×4800W
|
2×5000W |
2×6800W
|
2×10000W
|
|
4Ω/Bridge | 1×14280W | 1×14800W | 1×17000W | 2×6000W | 2×6000W | 2×9520W | 2×13000W | |
Alternating Current Power Supply | ||||||||
Power | PFC Power | |||||||
Rated power demand | 100-240V ±10%, 50/60 Hz | |||||||
Operation voltage | 90V-270V | |||||||
Power correction factor cos (φ) | >0.95 @ >500 W | |||||||
Standby | 47W and 0.8A | |||||||
Gain,Sensitivity | 32dB,35dB,38dB,41dB | |||||||
Maximum Output Voltage/Current | 185V/85A(370V in the BRIDGE MODE) | |||||||
Power Comsumption | 230V (115V in the BRIDGE MODE) | |||||||
Temperature | ||||||||
Environment temperature | 0°-45C / 32'-113*F | |||||||
Cooling system | Tunnel through cooing system | |||||||
Performance | ||||||||
Frequency Response | 20 Hz - 20 kHz ( | |||||||
Signal-to-Noise Ratio | >110 dBA( | |||||||
Crosstalk | >66 dB @1 kHz | |||||||
Input Impedance | 10 kΩ balanced | |||||||
Total Harmonic Distortion(THD) | <0.5% from 1 W to full power | |||||||
Intermodulation Distortion(IMD) | <0.5% from 1 W to full power | |||||||
Damping Factor (8 ohms) | >5000 @20-200 Hz | |||||||
Slew Rate | 50V/μs @ 8 Ω | |||||||
Front Panel | ||||||||
Indicator LED/per channel | One PCS Green LED: the input signal of XLR ≥ -40dB Four pieces Green LED display the output signal -20dB,-10dB,-5dB,-3dB ) of SPEAKON 1 piece dual LED Yellow and Red): Protective state/Clip state/Over heat/Over load | |||||||
Power Switch | Press “I" -on; Press “O’-off. | |||||||
Dust-proof | Two pieces dust-proof cotton, it can take off to cle from the bottom of front pannel | |||||||
Application | ||||||||
Signal in-connection | 4 Channel One balanced XLR(with lock) female per channel; 2 Channel One balanced XIR(with lock) female and one belanced XLR male per channel. | |||||||
Signal out-connection | One SPEAKON per channel connect to loudspeakers | |||||||
Power cord | Fiked to the device, and the CSA (cross sectional area)of the cord is 3 x 2.5mm², and the card is 1.5 meters long. | |||||||
Multiple-Functions Switch | Two Sensitivity Switches. one Mode Switch and one Clip Switch. | |||||||
Structure(The size and weight depond on different series and shipping demand ) | ||||||||

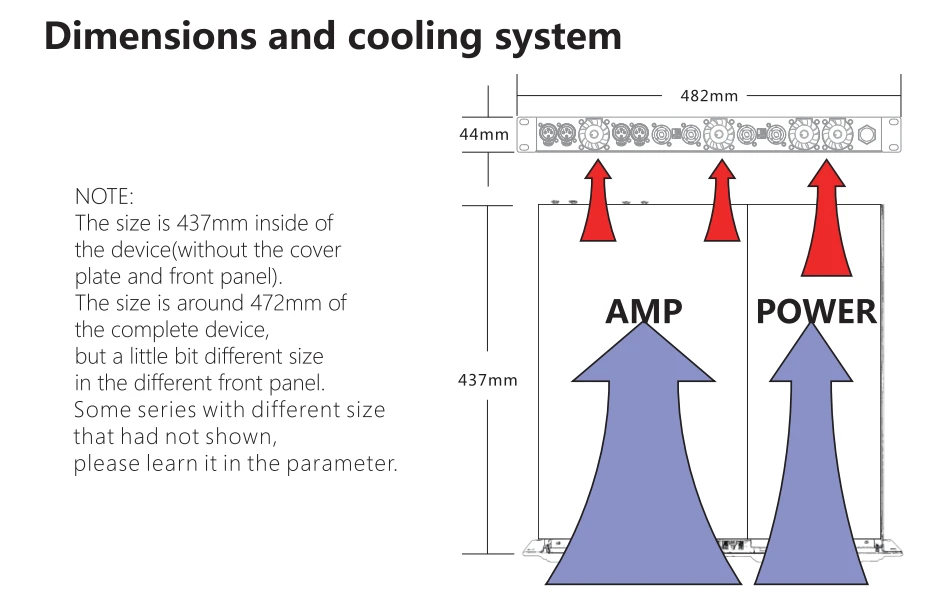

Dimensions | 482 x 44 x 380mm³ / 482 x 44 x 470 mm³ | |||||||
Net weight | 10Kg / 12kg | |||||||
Packing size | 580 x 580 x 119mm³ / 615 x 615 x 119mm³ | |||||||
Shipping weight | 12Kg/14kg |

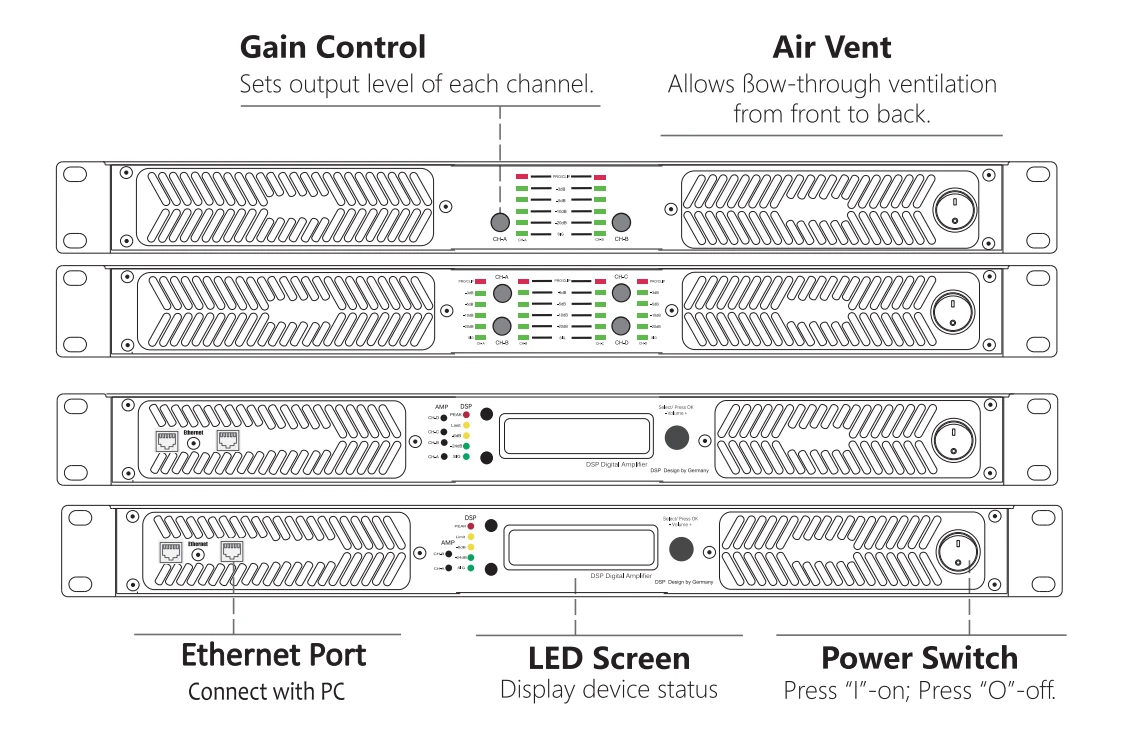

Front panel features
![](https://icdn.tradew.com/file/201712/1572617/png/7984886.png?x-oss-process=image/quality,Q_90)
![](https://icdn.tradew.com/file/201712/1572617/png/7984885.png?x-oss-process=image/quality,Q_90)
