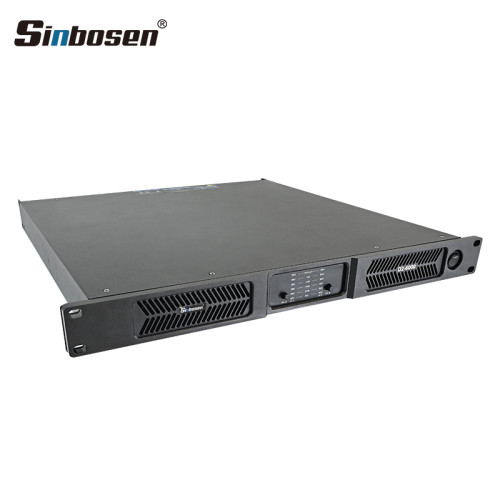

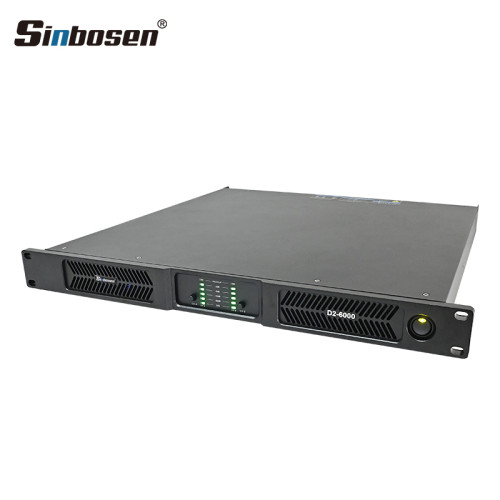

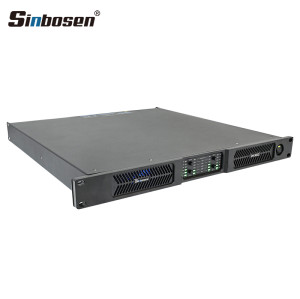

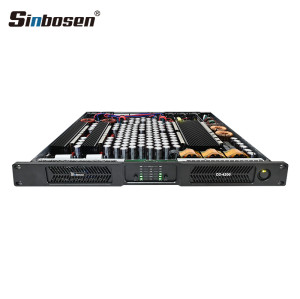

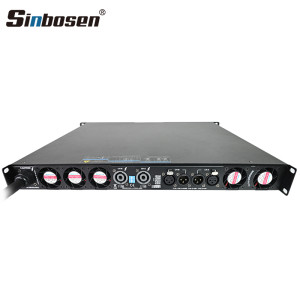

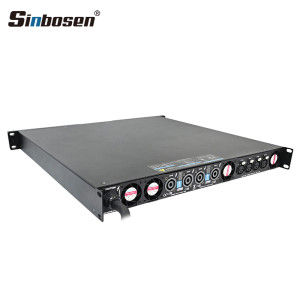

D2-6000 2 channel 6000w digital power amplifier for subwoofer speaker
- Model
- D2-6000
Item specifics
- Type
- Digital Amplifier
- Power
- 6000w x 2
Review
Description
Specifications | ||
8Ω Stereo Powe | 2x6000W RMS | |
| 4Ω Stereo Powe | 2x10000W RMS | |
| 2Ω Stereo Powe | 2x10000W RMS | |
| Amplifier Type | 1U, Class D, 2-channel digital power amplifier | |
Operating Voltage | 90-260V 60Hz/50Hz | |
PFC | Yes, 1U digital 2-channel power amplifier with PFC | |
Maximum Output Voltage/Current | 185V/85A (370V in the BRIDGE MODE) | |
Cooling system | Tunnel through cooling system | |
Frequency Response | 20 Hz - 20 kHz | |
Signal-to-Noise Ratio | >110 dBA (20 Hz - 20 kHz, A weighted) | |
Crosstalk | >66 dB @1 kHz | |
Input Impedance | 10 kΩ balanced | |
Operating Temperature Range | 0°C-45°C (32°F-113°F) | |
Dimensions (W x D x H) | 482mm x 460mm x 44mm | |
Shipping weight | 16kg | |
D2-6000 Amplifier Feature：
●2 x 6000 Watts into 8 Ohms
●2 x 10000 Watts into 4 Ohms
●2 x 10000 Watts into 2 Ohm
●Suit for subwoofer●2 Channel Class D Digital power amplifier
●Mini 1U size,convenient for Touring Applications

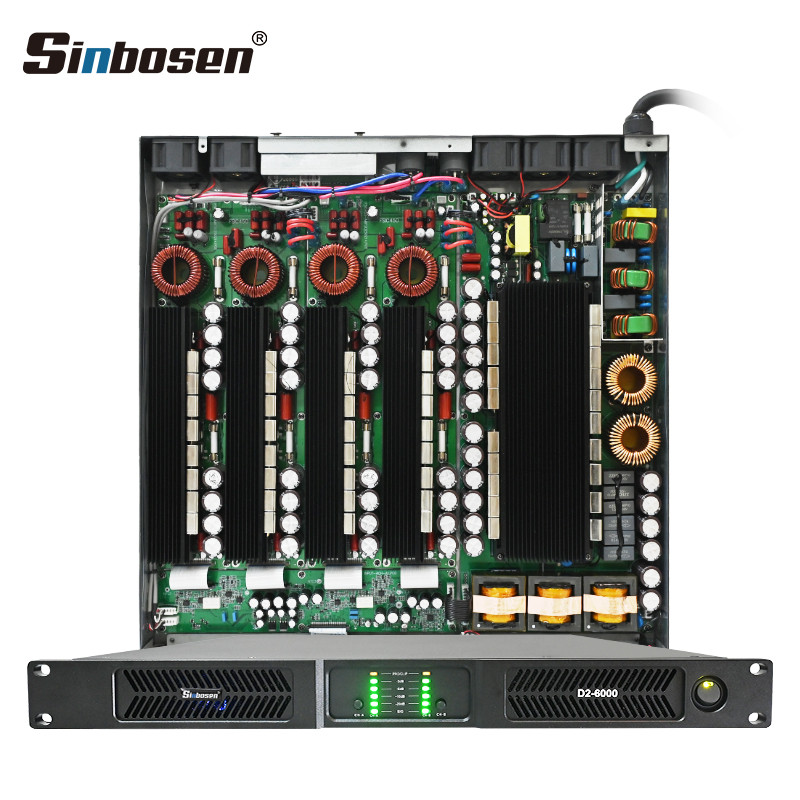

●Precise and Reasonable circuit structure
●Bring supper reliable sound
●Temperature protection;Over current protection;Short circuit protection built-in

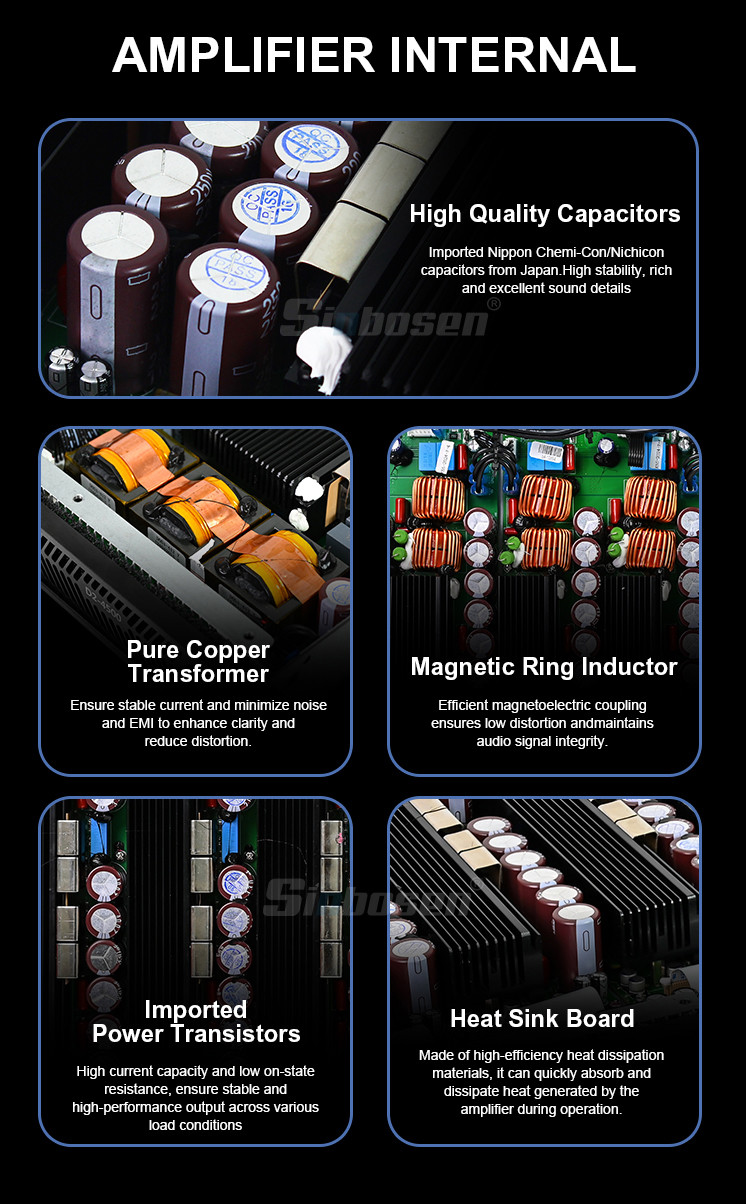

●Nippon Chemi-Con capacitor
●DANTE function is selectable, cost more 150USD
