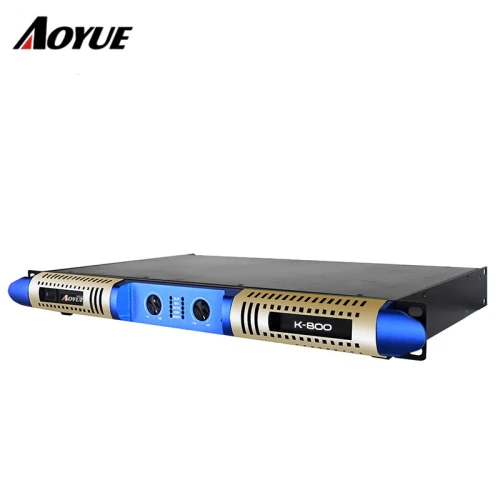

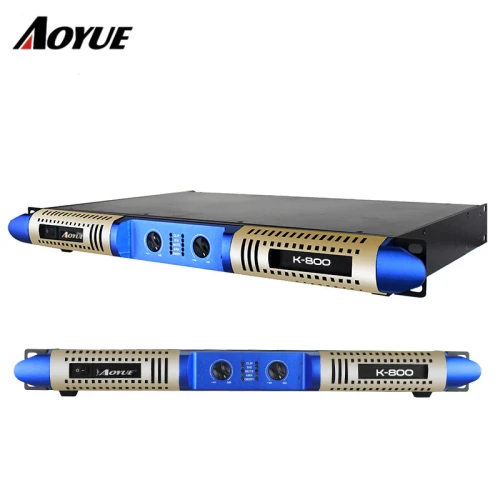

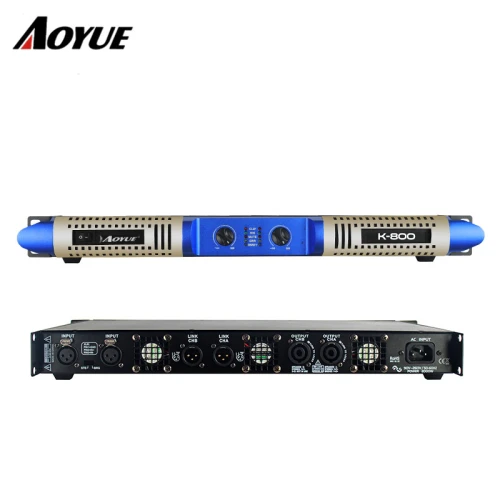

Class d 800 watts 2 channel stereo audio professional digital power amplifier
- Model
- K-800
Item specifics
- Stereo/output power 8Ω /1KHz
- 800Wx2
- Stereo/output power 4Ω /1KHz
- 1200Wx2
- Bridge/output power 8Ω 1/KHz
- 2400W
- Bridge/output power 4Ω /1KHz
- 3600W
- THD（10% -1KHz）
- <0.1%
- Net weight
- 3.8Kg
- Speed rate（1KHz）
- >20V/μs
- Dynamic range
- ≥95dB
Review
Description
Model Specs |
K-800 |
|||
Stereo/output power 8Ω /1KHz |
1200Wx2 |
1000Wx2 |
800Wx2 |
|
Stereo/output power 4Ω /1KHz |
1850Wx2 |
1500Wx2 |
1200Wx2 |
|
Stereo/output power 2Ω /1KHz | 2300Wx2 | 2000Wx2 | 1600Wx2 | |
Bridge/output power 8Ω 1/KHz |
3600W |
3000W |
2400W |
|
Bridge/output power 4Ω /1KHz | 5000W | 4000W | 3200W | |
Frequency Response（8Ω/ 100mS/second） | 20Hz-20KHz±1dB | |||
THD（10% -1KHz） | <0.1% | |||
Speed rate（1KHz） | >20V/μs | |||
Noise insulation factor(1KHz) | >250 | |||
Dynamic range | ≥95dB | |||
Signal-to-noise ratio | ≥95dB | |||
Input sensitivity（1KHz） | 2Vrms | |||
Input impedance | 20K（balance）/ 10K（imbalance） | |||
Net weight | 3.8Kg | |||
Class D amplifier is developed by the best engineers and professional musicians. You will find the Class D amplifier are cost-effective, stable, and fully protected amplifiers.
Class D digital power amplifiers are popular among users at home and abroad because of their environmental protection, energy saving, small size and utilization rate of more than 97%. Products are sold in Europe, America and other countries.
Performance characteristics:
1. Volume step control.
2. Balanced input XLR stereo (two channels), stereo and bridge modes of operation.
3. Independent limiting, overload, overheating and short protection circuit.
Features: safety performance:
1: Use NTC boot soft start.
2: With PFC automatic voltage regulator circuit.
3: Each channel has independent overpressure and overheating.
4: load short-circuit protection.
5: There is an automatic limiting function to prevent damage to the sounder.
