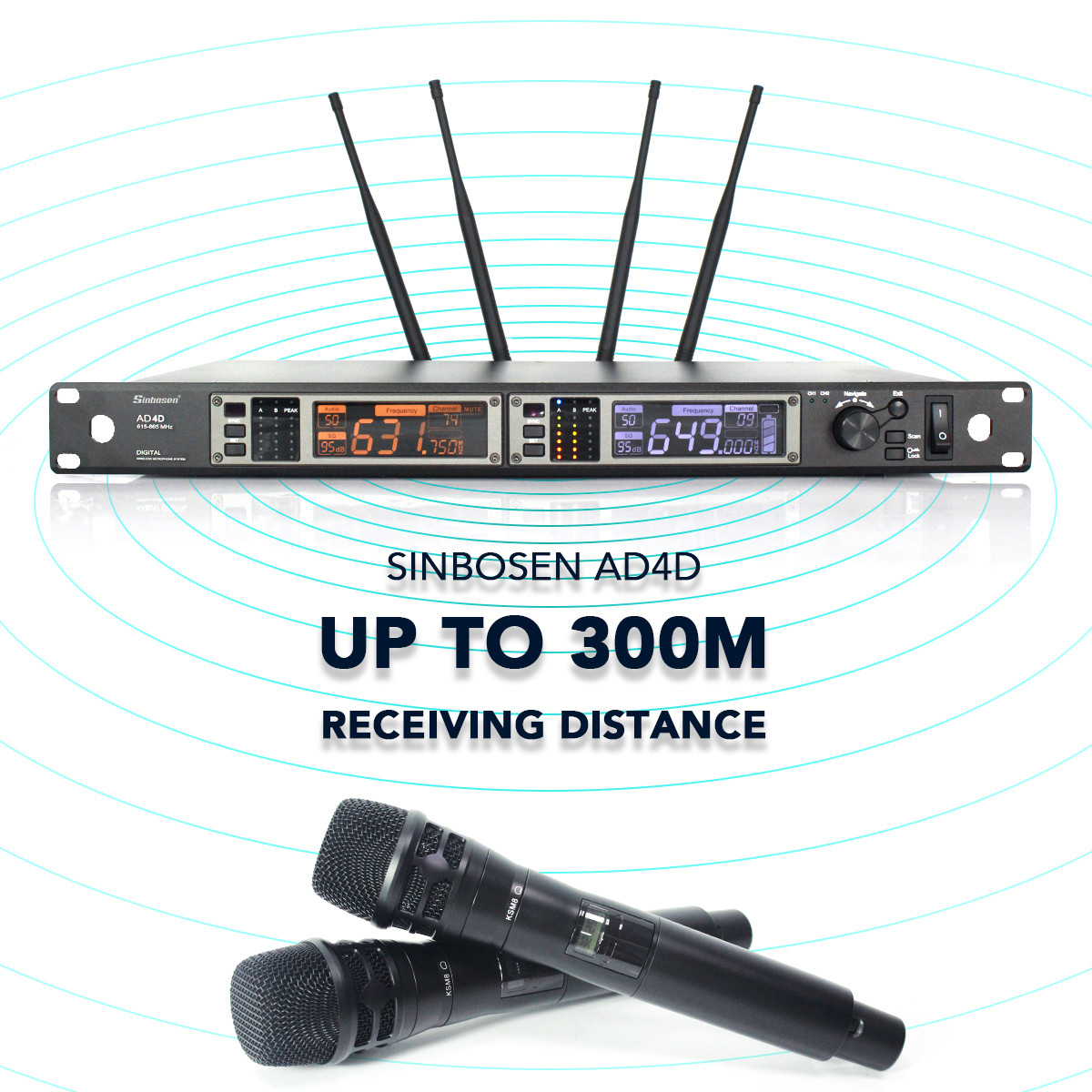

Sinbosen AD4D 300M 615-655MHz moving coil FM wireless microphone for sale
- Model
- AD4D
Item specifics
- Microphone Type
- UHF Wireless Microphone
- Handheld Mic Color
- Black
- Working distance
- 80 meters
- Frequency Range
- 615-655 MHz
- Power Specifications
- 100-240V 50-60Hz (switch power adapter)
- Modulation
- Frequency Modulation (FM)
- Receiver sensitivity
- -90dBm
- Channel adjustable
- One for two, 150X2
- Application
- Outdoor,Stage,Singing,Speaking,Show
Review
Description
UHF Professional 4 Antenna True diversity Handheld Wireless Microphone AD4D
Features
* UHF 600MHz band, phase-locked loop (PLL) frequency synthesizer
* infrared frequency, automatic synchronization lock the transmitter frequency
* the receiver automatically scans and locks the current environment is best to use free channels.
* superheterodyne double conversion design, with a high receiver sensitivity
* multi-level high-performance surface acoustic wave filters, with excellent anti-jamming capability
* Mute circuit specially designed to completely eliminate the microphone turned on and off the impact of noise
* microphone dual step-up design, the battery down does not affect the transmit power
* the ideal environment for an operating radius of 150 meters, used in a variety of high demand occasions
Technical parameters
* Frequency Range : 615-655 MHz
* Bandwidth: 2X25MHz/4X15MHz
* Modulation: Frequency Modulation (FM)
* Oscillation mode: PLL (digital frequency synthesizer)
* Speech pick-up head: moving coil
* Signal to Noise Ratio (S/N):> 105dB (A)
* Distortion (1 Khz): <0.2%
* Spurious suppression:≥90dB
* Mirror suppression:≥90dB
* Sensitivity: 0dBuV
* Audio output level:
XLR output jack:250mV/600 Q
Unbalanced output (1/4"output jack):400mV/K3 Q
* Frequency stability: < 10ppm
* Audio Frequency Response: 50Hz- 18KHz
* Dynamic range: > 100dB (A)
* Working distance: 80 meters(ideal environment)
* Battery Specifications: 2 (15V) AA alkaline batteries
* Power Specifications: 100-240V 50-60Hz (switch power adapter)
