ULXD4D Wireless system 780-820MHz UHF Handheld microphone
- Model
- ULXD4D
Item specifics
- Microphone Type
- Wireless Microphone
- Frequency Range
- 780-820MHz
- Transmitter Type
- Handheld Microphone
- Connection
- Wireless
- Channels
- Dual Channels Microphone
- Warranty
- 2 Years
- Service
- OEM Service
Review
Description

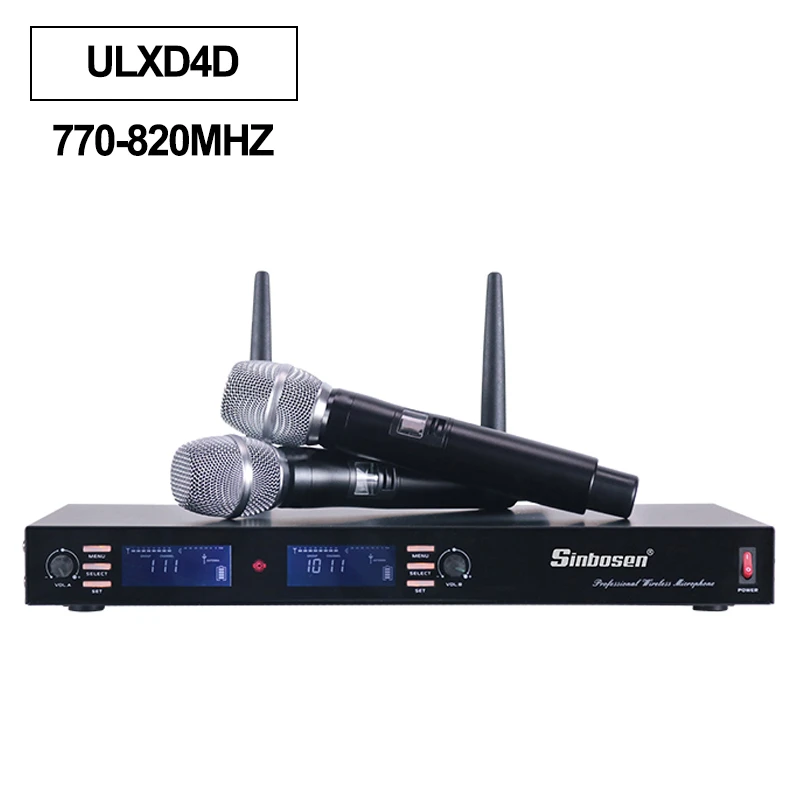

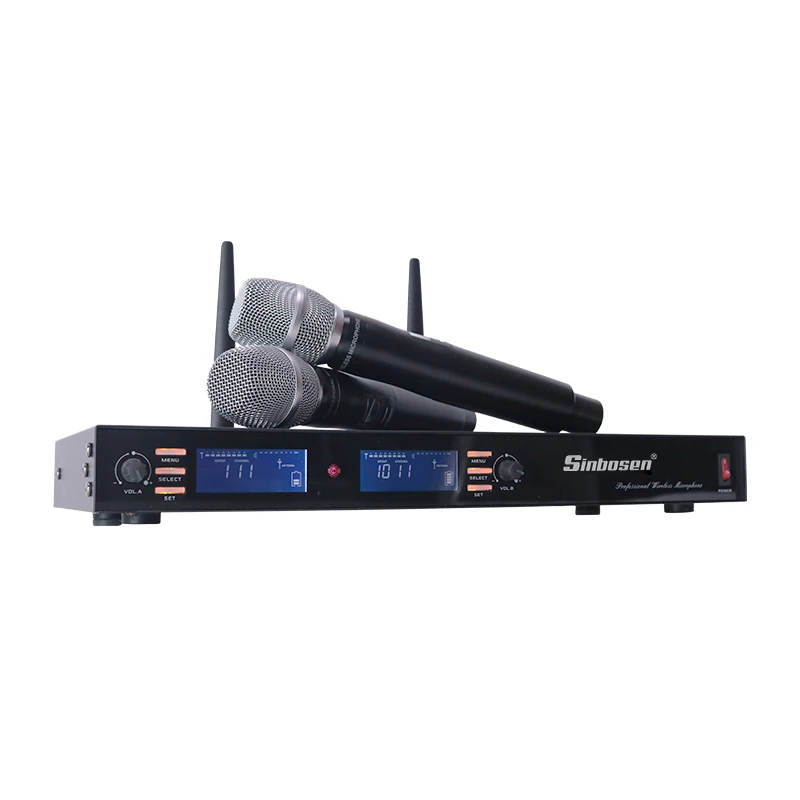

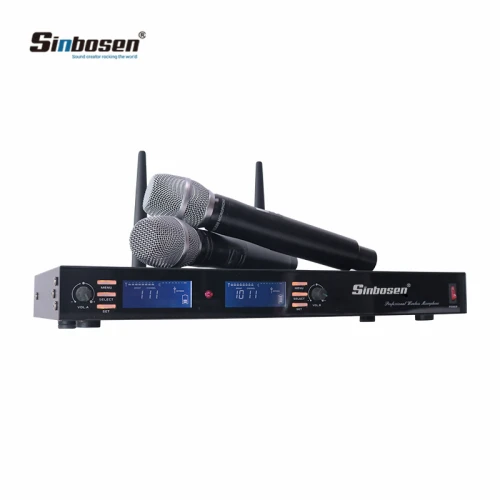

Wireless Microphone ULXD4D
| Technical parameters: | |
 | |
| Frequency Range | 780-820MHz (default) |
| Oscillation mode | PLL frequency synthesizer (PLL) |
| Frequency stability | ± 10ppm |
| Receiving Mode | superheterodyne double conversion |
| Receiver sensitivity | -90dBm |
| Audio Frequency Response | 40-18000Hz |
| Harmonic Distortion | ≤ 0.5% |
| Signal to Noise Ratio | ≥ 100dB |
Audio output/independent and mixed unbalanced output | 10-30mW transmit power |
| Modulation | Frequency Modulation (FM) |
| Battery Specifications | Two on the 5th battery |
| Power Specifications | 100-240V 50-60Hz (switch power adapter) |

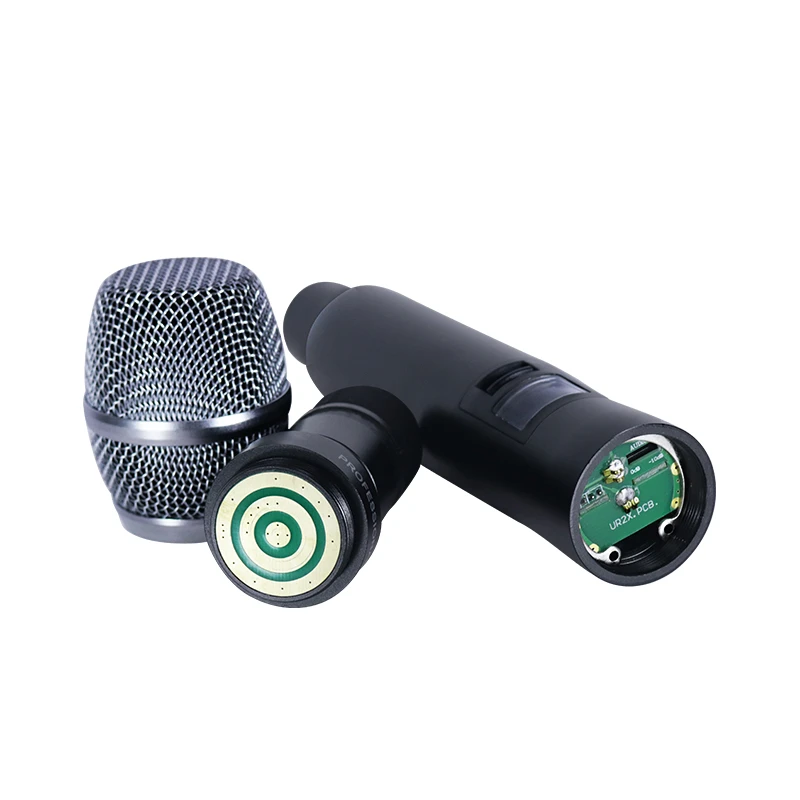

| Transmitter | |
 | |
| Working frequency | 780-820MHz |
| Frequency stability | ±0.002% |
| FM maximum modulation frequency offset | ±45KHz |
| Use battery | 2 AA batteries |
| Microcomputer CPU control | |
| PLL phase-locked loop frequency synthesis technology, infrared frequency | |
| 32/64/99 channel free choice, LCD digital display | |
| Intelligent battery undervoltage warning display | |
| Dynamic audio compression and automatic level control circuit | |

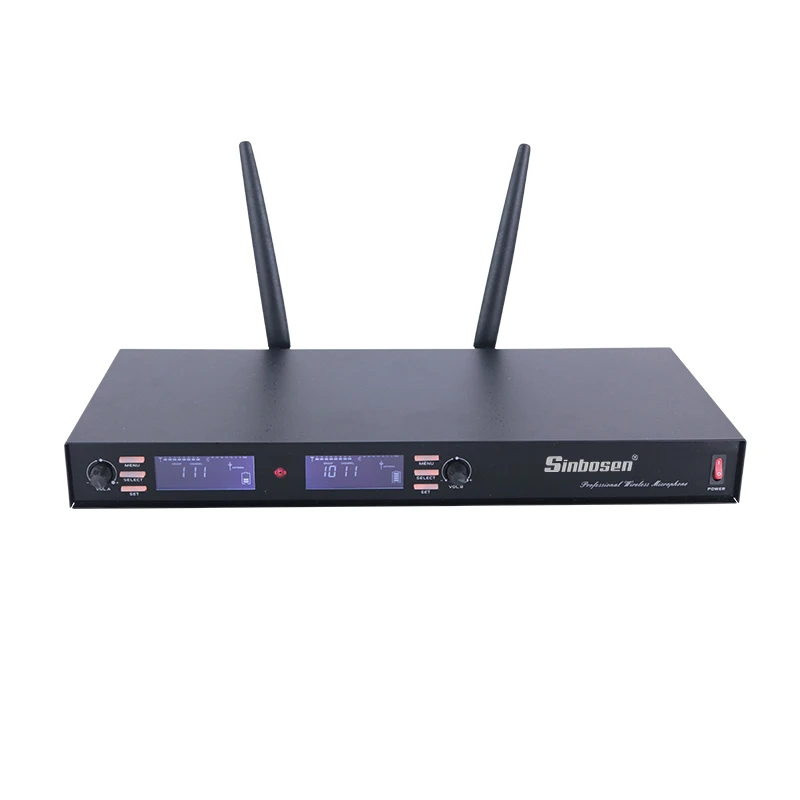

| Receiver | |
 | |
| Working frequency | 780-820MHz |
| Frequency stability | ±0.002% |
| Receiver(H*L*W) | 50mm * 420mm* 215mm |
| Use distance | above 80 meters ( above 100 merters on the open space ) |
| Noise Locking Squelch Control + Code Navigation Locking Squelch Control | |
| Audio dynamic expansion and automatic level control circuit | |
| True diversity reception | |
| Microcomputer CPU control | |
| PLL phase-locked loop frequency synthesis technology, infrared frequency | |
| 32/64 channel free choice, LCD digital display | |
The BLX88 wireless receiver is a durable, dual channel receiver with simple set-up, intuitive controls and microprocessor controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best frequency, enabling simple set-up with up to 12 compatible systems per frequency band.
Includes 2 PG58 handheld transmitters, BLX88 dual-channel receiver, 2 microphone clips, power supply, 4 AA batteries, and user guide.
Features
XLR and ¼" output connectors
Microprocessor-controlled internal antenna diversity
Two-color audio status indicator LED
Green: Normal audio levels
Red: Excessive audio levels (overload / clipping)
