About the matching of Sinbosen speakers and amplifiers
- Share
- Issue Time
- May 26,2025
Summary
About the matching of Sinbosen speakers and amplifiers
| Model | Crossover | Cabinet painting | ways | Speaker unit, impedance is a single speaker | Speaker connector | Amplifier Matching | Other alternative models of amplifiers | ||||
LF | MF | HF | Model | Quantity | |||||||

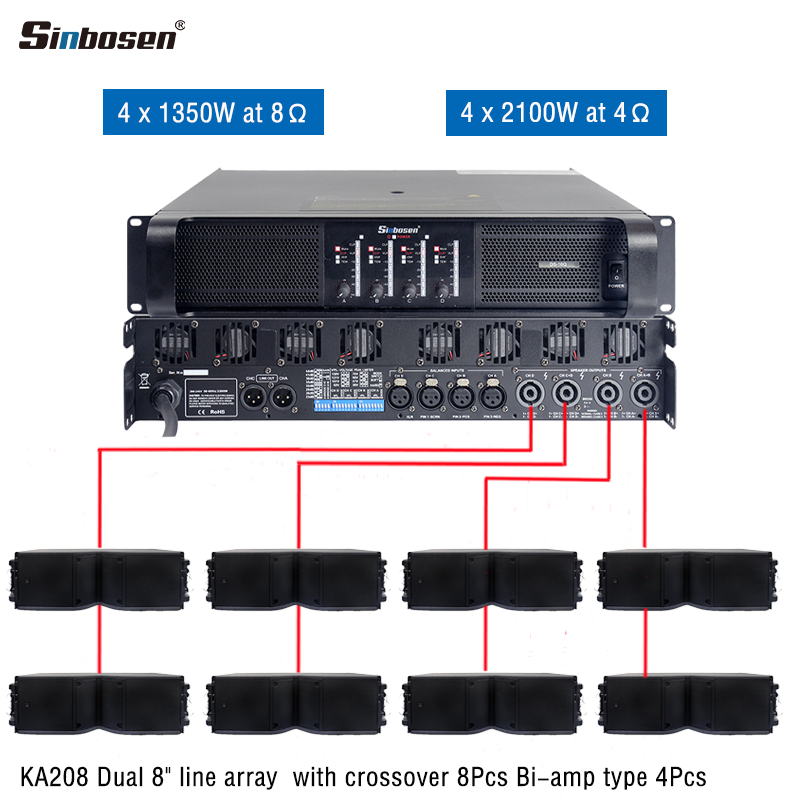

NO | Polyurea paint | 2-way | 2 x 8" 16Ω | 1 x 3" 8Ω | 4-core cable-NL4 | LA12X | Can drive 4pcs/8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |||
NO | Polyurea paint | 2-way | 2 × 12″16Ω | 1 x 4"8Ω | Can drive 4pcs | DS-10Q，D4-2000，D4-3000 （DSP） | |||||
NO | Polyurea paint | 3-way | 2 × 15″ 8Ω | 4 × 6.5″ 8Ω | 3 × 3″20Ω | 8-core cable
CA-COM | LA12X | Can drive 2pcs | DS-10Q，D4-2000，D4-3000 （DSP） | ||
NO | Polyurea paint | 3-way | 2 × 12″ 8Ω | 4 × 6.5″ 8Ω | 2 × 3″8Ω | Can drive 2~3pcs | DS-10Q，D4-2000，D4-3000 （DSP） | ||||
YES | Polyurea paint | 2-way | 1 x 15" 8Ω | 1 x 3" 8Ω | 2-core cable - NL4 | LA12X | Can drive 4pcs/8pcs | FP10000Q，K4-1700, D4-1500, D4-2000 | |||
NO | Polyurea paint | single way
| 1 x 18" 8Ω | 2-core cable - NL4 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q，D4-2000, D4-3000 | ||||
single way
| 1 x 21" 8Ω | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||||||||
single way
| 2 x 18" 8Ω | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||||||||
SB28 | single way
| 2 x 18" 8Ω | DS-20Q，DS-22Q， D4-3000，D2-4500 | ||||||||
K1SB | single way
| 2 x 15" 8Ω | DS-20Q，DS-22Q， D4-3000，D2-4500 | ||||||||
5X | YES | Polyurea paint | 2-way | 1 x 5" 16Ω | 1 x 1" | 2-core cable - NL4 | K4-450 | Can drive 4pcs | K4-800 | ||
LA12X | Can drive 12pcs | ||||||||||
8X | Polyurea paint | 2-way | 1 x 8" 8Ω | 1 x 1.5" 8Ω | LA12X | Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||||
12X | Polyurea paint | 2-way | 1 x 12" 8Ω | 1 x 1.3" 8Ω | LA12X | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |||||
15X | NO | Polyurea paint | 2-way | 1 x 15" 8Ω | 1 x 3" 8Ω | 4-core cable - NL4 | LA12X | Can drive 4pcs~6pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
DB Series | |||||||||||
YES | Polyurea paint | 3-way | 2 x 10" 16Ω | 1 x 8" 16Ω | 2 x 1.4" 12Ω | 2-core wire-NL4/EP5 | LA12X | Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
NO | Polyurea paint | single way
| 1 x 18" 8Ω | 1 x 12" 16Ω | 2-core wire-NL4/EP5 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
YES | Polyurea paint | 2-way | 2 x 8" | 1 x 1.4" | 2-core wire-NL4/EP5 | LA12X | Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |||
NO | Polyurea paint | single way
| 1 x 18" | 1 x 12" | 2-core wire-NL4/EP5 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
YES | Polyurea paint | 3-way | 2 x 12" | 1 x 10" | 2 x 1.4" | 4-core wire-NL4/EP5 | LA12X | Can drive 4pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
NO | Polyurea paint | single way
| 3 x 18" | 4-core cable-EP5 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | ||||
Q-1 | YES | Polyurea paint | 2-way | 2 x 10" | 1 x 1.3" | 2-core wire-NL4/EP5 | LA12X | Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
QT-SUB | NO | Polyurea paint | single way
| 1 x 18" | 2-core wire-NL4/EP5 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
YES | Polyurea paint | 2-way | 1 x 15" 8Ω | 1 x 1.3" 8Ω | 2-core wire-NL4/EP5 | LA12X | Can drive 4 pcs(external frequency division) or 8pcs(internal frequency division) | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |||
BT-22 | NO | Polyurea paint | single way | 2 x 18" 8Ω | 2-core wire-NL4/EP5 | LA12X | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
V Series and Other | |||||||||||
YES | Water-based paint | 3-way | 2 x 12" | 2 x 6.5" | 1 x 3" | 4-core cable-NL4 | DS-10Q | Can drive 4pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
YES | Black Emery water paint | 2-way | 1 x 12" | 3 x 1.5" | 2-core cable-NL4 | DS-10Q
| Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |||
V-918 | NO | Black Emery water paint | single way | 1 x 18" | 2-core cable-NL4 | DS-10Q | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
V-487 | NO | Black Emery water paint | 3-way
| 2 x 8" | 4 x 4" | 2 x 1.75" | 8-core cable-NL4 | DS-10Q | Can drive 2pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | |
NO | Black Emery water paint | 3-way
| 2 x 12" | 4 x 5.5" | 2 x 3" | 8-core cable-NL4 | DS-10Q
| Can drive 2pcs
| DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
V-489 | NO | Black Emery water paint | 3-way | 2 x 15" | 4 x 8" | 2 x 3" 16Ω | DS-10Q
| Can drive 2pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
V-480 | NO | Black Emery water paint | single way | 2 x 18" | 2-core cable-NL4 | DS-20Q | Can drive 4pcs | DS-20Q，DS-22Q， D4-3000，D2-4500 | |||
V-915 | YES
| Black Emery water paint | 2-way | 1 x 15" | 1 x 3" or 1 x 4" | 2-core cable-NL4 | DS-10Q
| Can drive 8pcs | DS-10Q，K4-1700, D4-1500, D4-2000，LA8 | ||
