KARA Line array dual 8 inch passive speaker pa system
KARA Line array dual 8 inch passive speaker pa system
KARA Line array dual 8 inch passive speaker pa system
KARA Line array dual 8 inch passive speaker pa system
KARA Line array dual 8 inch passive speaker pa system
KARA Line array dual 8 inch passive speaker pa system
Model
KARA

Item specifics

Rated Power (RMS)
LF:450W / HF:100W
Nominal Impedance
LF: 8 Ohm or 16 Ohm
Sensitivity(1W/1m)db
102dB (1w@1m)
Maximum Peak SPL
125dB (Pmax@1m)
Dispersion(-6dB)
110° Hor × 10° Ver
Finish
Polyurea coating
Cabinet
Birch plywood

Review

Description

Specification
KARA Specification
Usable bandwidth (-10dB)55 Hz - 20 kHz
DirectivityH: 70° / 90° / 110°
V: 10°
Nominal directivity (-6dB)Horizontal 110° symmetric
Vertical: Dependent upon number of elements and line source curvature
Maximum Peak SPL125dB (Pmax@1m)
RMS handling capacityLF: 450 W HF: 100 W
Components LF: 2 x 8'' neodymium weather-resistant
HF: 1 X75mm neodymium diaphragm compression driver
Nominal impedance: LF = 8 ohms or 16ohms, HF = 8 ohms
Dispersion(-6dB)110° Hor × 10° Ver
Component Configuration LF: 2 * 8 inch  HF: 1 X75mm
Cabinet Plywood with polyurea coating
Dimension (W x H x D)733 x 252 x 482 mm
Weight (net)26 kg
Connectors2 x 4 Neutrik SPEAKON
MaterialBirch plywood
 8 inch LF(1)
8 inch LF(2)
75mm HF
Rigging Detail
Rigging Detail
Rigging Detail

Feature of KARA
●Best-in-class SPL per weight and footprint
●4 horizontal directivities
●Clear low-frequency power
●KARA is designed to simplify shipping, storage and deployment
●Ideal for applications that require clarity and distance capability, such as performing arts, rallies, large corporate or special events

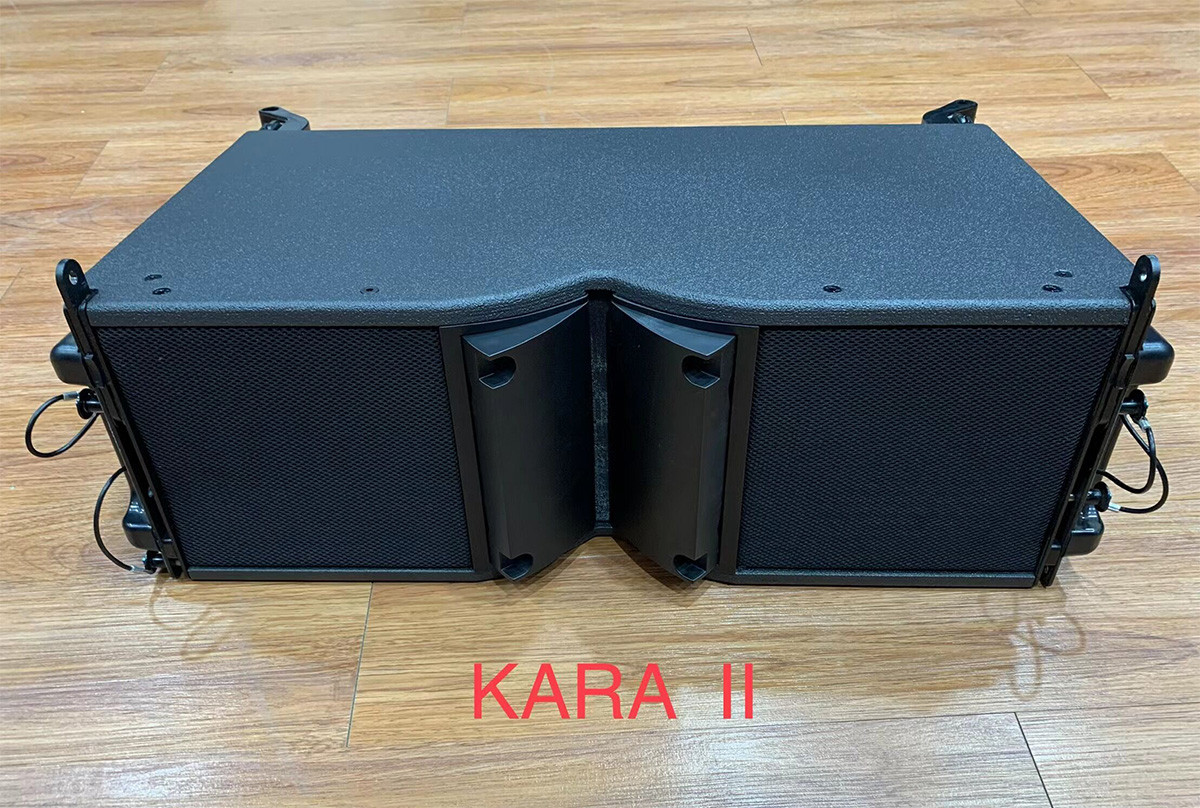

Feature of KARA Ⅱ

On the basis of KARA, FINS is added, which can adjust the coverage angle.
